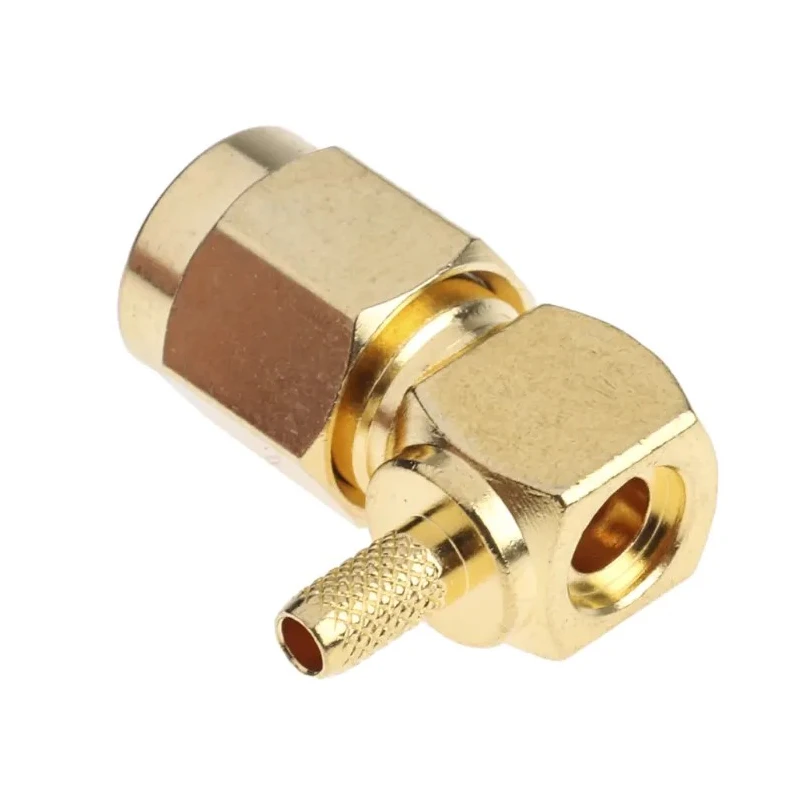

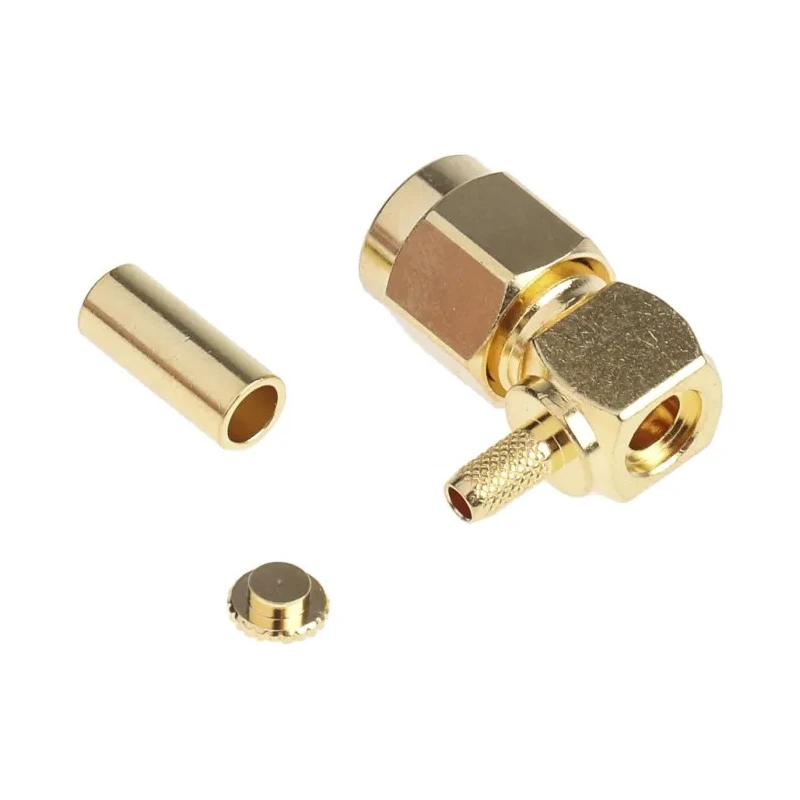

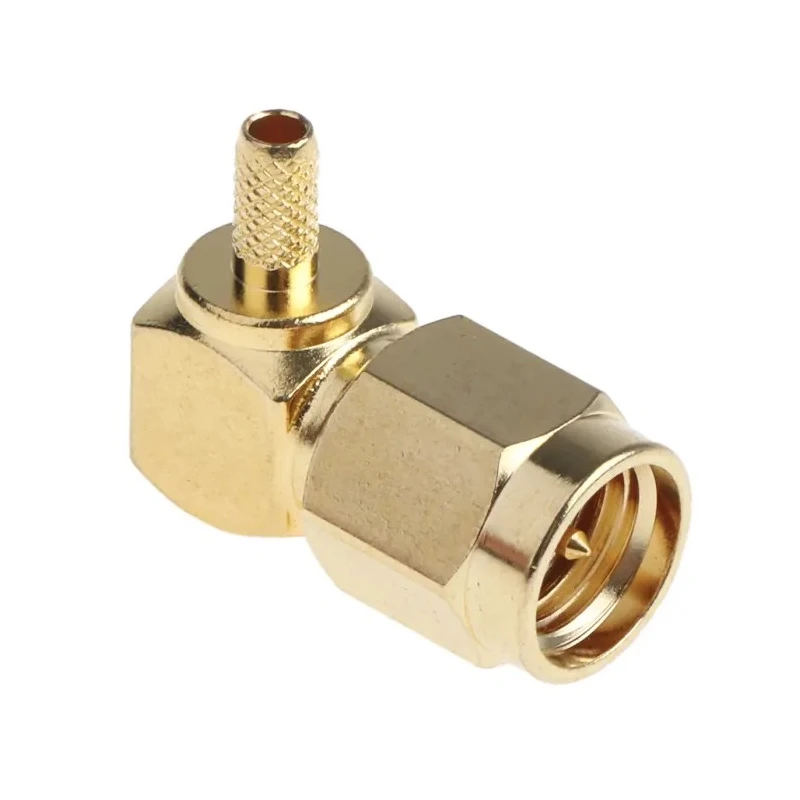

RS PRO Coaxial Connector Cable Male SMA, 50 Ω, Right Angle Body Crimp 546-3248
Specifications
| Country of Origin | Taiwan |
|---|---|
| Size | Subminiature |
| Brand | RS PRO |
| Orientation | Right Angle |
| Model | 546-3248 |
| Mount Type | Cable |
| Operating Frequency | 6GHz |
| Contact Material | Brass |
| Series | RS PRO |
| Termination Type | Crimp |
| Maximum Operating Temperature | 165°C |
| Cable Type | RG174 |
| Minimum Operating Temperature | -65°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Gold |
| Contact Gender | Male |
| Connector Gender | Male |
| Coaxial Connector Type | SMA |
| Body Plating | Gold |
| RS PRO Coaxial Connector Cable Male SMA, 50 Ω, Right Angle BodyBrand | RS PRO |
| Crimp SMA elbow plug for RG174 cableBrand | RS PRO |
Key Features
- This connector features a gold-plated brass body and centre contact for durability and corrosion resistance.
- It supports operating frequencies up to 6 GHz, suitable for high-frequency RF applications.
- The male SMA connector has a standard polarity and a plug-type coupling mechanism.
- Designed as a right-angle cable mount connector, ideal for use in tight and hard-to-reach spaces.
- It is suitable for a variety of coaxial cables, providing reliable and robust connectivity.
- The connector is crimp-terminated, ensuring secure cable attachment.
- Operates effectively within a temperature range of -65°C to 165°C.
- Manufactured in Taiwan, Province Of China, ensuring quality standards compliance.
Product Description
RS PRO 546-3248 Coaxial Connector Cable Male SMA, 50 Ω, Right Angle Body Crimp is a sub-miniature radio frequency (RF) connector designed for joining coaxial cables.
This male SMA connector is optimized for use with RG174 cable types and provides a characteristic impedance of 50 Ω, suitable for high-frequency signal transmission up to 6 GHz. The right-angle body design allows installation in constrained spaces, enhancing flexibility in system layouts.
The connector body and centre contact are made of brass with gold plating, offering excellent corrosion resistance and reliable electrical performance. The termination method is crimp, ensuring a secure mechanical and electrical connection with the cable. It features normal polarity and a hexagonal body shape for easy tightening with standard spanners.
The connector operates efficiently over a temperature range from -65°C to 165°C, making it suitable for demanding industrial, communication, and RF applications including microwave systems, mobile antennas, and Wi-Fi networks.
This product is tailored for engineers and technicians requiring reliable coaxial connectors with high-performance characteristics and robust build. Its sub-miniature size and right-angle orientation provide practical solutions for compact equipment designs.
Gold-plated brass body and contact for durability. Right-angle SMA connector suitable for cramped spaces. Supports operating frequency up to 6 GHz for RF signal integrity. Crimp termination for secure cable connection. Compatible with RG174 cable types commonly used in communication systems.
Operating temperature range from -65°C to 165°C. Hexagonal body design for easy installation and removal.
RS PRO products are rigorously tested to meet demanding industry standards, ensuring confidence in performance and longevity. This coaxial connector is ideal for use in industrial electronics, telecommunications, laboratory setups, and other professional RF applications.
Explore EnvMart’s comprehensive range of RS PRO Coaxial Connectors and cables for your precision electronic connectivity needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This coaxial connector supports operating frequencies up to 6 GHz, making it suitable for high-frequency RF applications.
It is optimized for use with RG174 cable types, providing reliable connectivity for various applications.
The connector operates effectively within a temperature range of -65°C to 165°C, suitable for demanding environments.
This model features crimp termination, ensuring a secure mechanical and electrical connection with the cable.
It has a characteristic impedance of 50 Ω, which is standard for many RF applications.
The connector body and center contact are made of brass with gold plating, providing durability and corrosion resistance.
It features a right-angle orientation, making it ideal for installation in tight and hard-to-reach spaces.
This connector is classified as sub-miniature, allowing for compact installations in various applications.
This model has a normal polarity, which is standard for SMA connectors.
It is manufactured in Taiwan, ensuring compliance with quality standards.
It is suitable for use in industrial electronics, telecommunications, laboratory setups, and various RF applications including microwave systems and mobile antennas.
The connector features a hexagonal body design for easy tightening with standard spanners, facilitating installation and removal.
