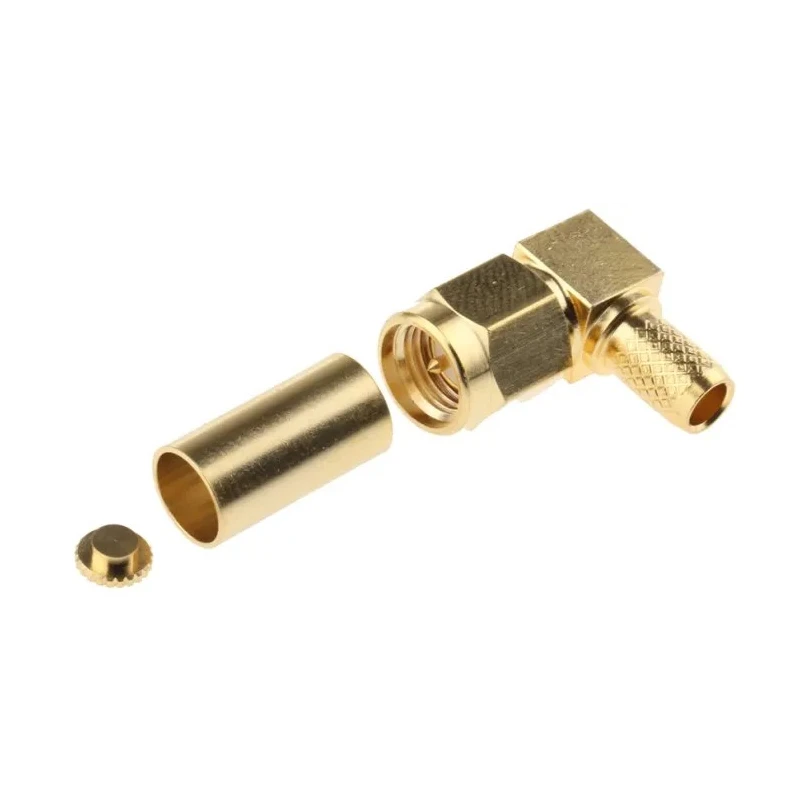

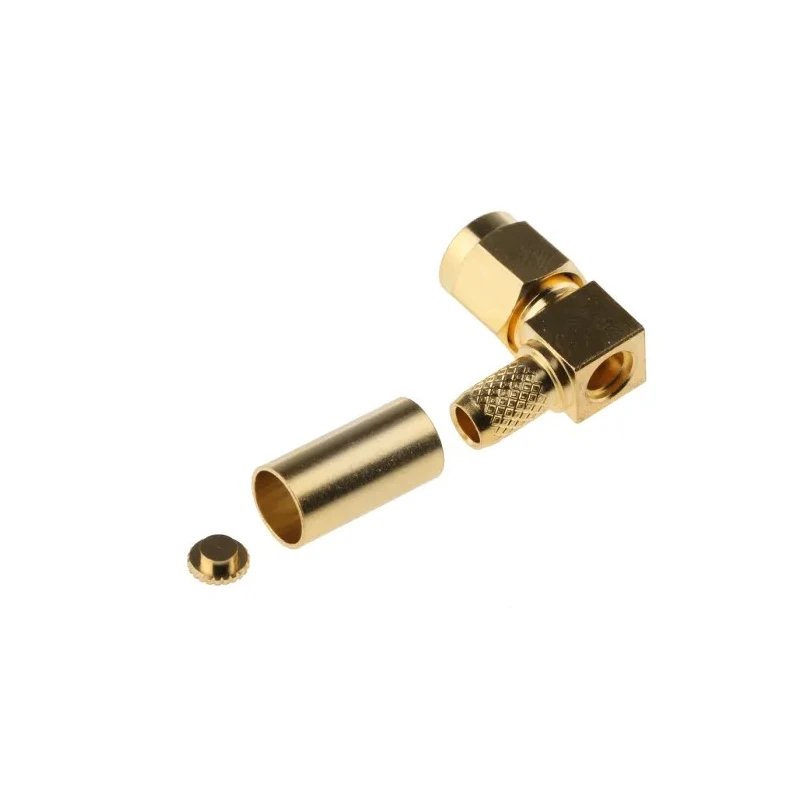

RS PRO Coaxial Connector Cable Male SMA 50 Ω Right Angle Body Crimp 546-3254
Specifications
| Country of Origin | Taiwan |
|---|---|
| Size | Subminiature |
| Brand | RS PRO |
| Orientation | Right Angle |
| Model | 546-3254 |
| Mount Type | Cable |
| Operating Frequency | 18GHz |
| Contact Material | Brass |
| Series | RS PRO |
| Termination Type | Crimp |
| Maximum Operating Temperature | 165°C |
| Cable Type | RG223 |
| Minimum Operating Temperature | -65°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Gold |
| Contact Gender | Male |
| Connector Gender | Male |
| Coaxial Connector Type | SMA |
| Body Plating | Gold |
| Crimp SMA elbow plug for RG223 cableBrand | RS PRO |
Key Features
- Connector type SMA male with a right-angle orientation ensures easy cable routing.
- Rated impedance of 50 Ω for consistent signal quality.
- Compatible with RG223 cable type, suitable for high-frequency applications up to 18 GHz.
- Gold plating on body and contact ensures excellent corrosion resistance and conductivity.
- Operating temperature range from -65°C to 165°C supports diverse environmental conditions.
- Termination through crimping provides reliable and repeatable assembly.
- Brass contact material offers durability and good electrical performance.
Product Description
RS PRO 546-3254 coaxial connector cable male SMA, 50 Ω, right angle body crimp is engineered for high-frequency signal transmission for semi-rigid and flexible coaxial cables such as RG223. The connector features a subminiature size and a right-angle body design enabling efficient cable routing in constrained spaces. The gold-plated body and contact ensure superior conductivity and corrosion resistance, suitable for use in harsh environments.
Designed to operate within a wide temperature range from -65°C to 165°C, this connector supports demanding industrial, laboratory, communication, and test equipment applications. The crimp termination assures robust mechanical and electrical connections, ensuring repeatability and reliability in assembly line production or field service operations.
This SMA cable connector is part of the RS PRO series, offering a durable brass contact with a gold plating finish. It is designed to provide optimal performance in applications requiring high-frequency signals up to 18 GHz. The cable mount design supports flexible cable types, particularly RG223, without bulkhead mounting.
Connector type SMA male with right angle orientation for easy cable management. Impedance rating of 50 Ω for consistent signal transmission. Compatible with RG223 cable type for flexible applications. Gold-plated body and contact for corrosion resistance and enhanced performance.
Operating temperature range from -65°C to 165°C for broad usability. Crimp termination type enables secure cable attachment. Brass contact material combining strength and electrical conductivity. Series RS PRO for reliable performance standards.
Widely applicable in industrial, telecommunications, laboratory testing, and electronic instrumentation environments, this connector cable is engineered for reliable signal integrity and robustness. RS PRO products ensure high quality and consistency to meet professional usage demands.
Explore more Coaxial Connectors and related electronic components in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector has an impedance rating of 50 Ω, ensuring consistent signal transmission.
It is designed to operate at a maximum frequency of 18 GHz, suitable for high-frequency applications.
This connector is compatible with RG223 cable type, allowing for flexible applications.
The operating temperature range for this connector is from -65°C to 165°C, supporting diverse environmental conditions.
It features a crimp termination type, providing secure cable attachment and reliable connections.
The connector has a brass contact material with gold plating for enhanced conductivity and corrosion resistance.
This model has a right-angle orientation, which facilitates easy cable routing in constrained spaces.
It is classified as a subminiature size connector, suitable for compact applications.
The connector is manufactured in Taiwan.
This model features a male connector gender, suitable for various applications.
It is widely applicable in industrial, telecommunications, laboratory testing, and electronic instrumentation environments.
This connector is part of the RS PRO series, known for reliable performance standards.
