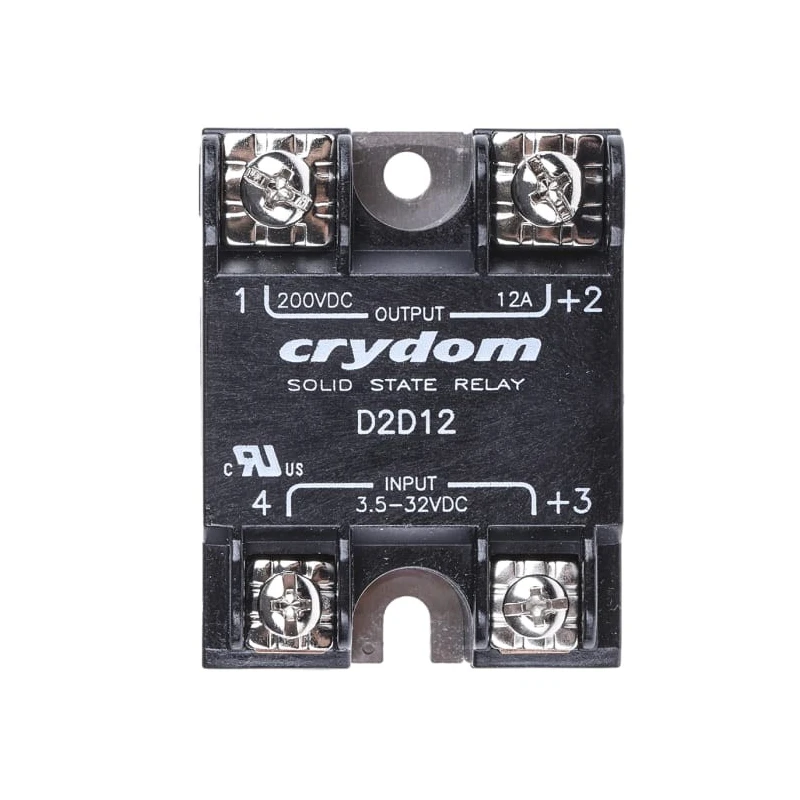

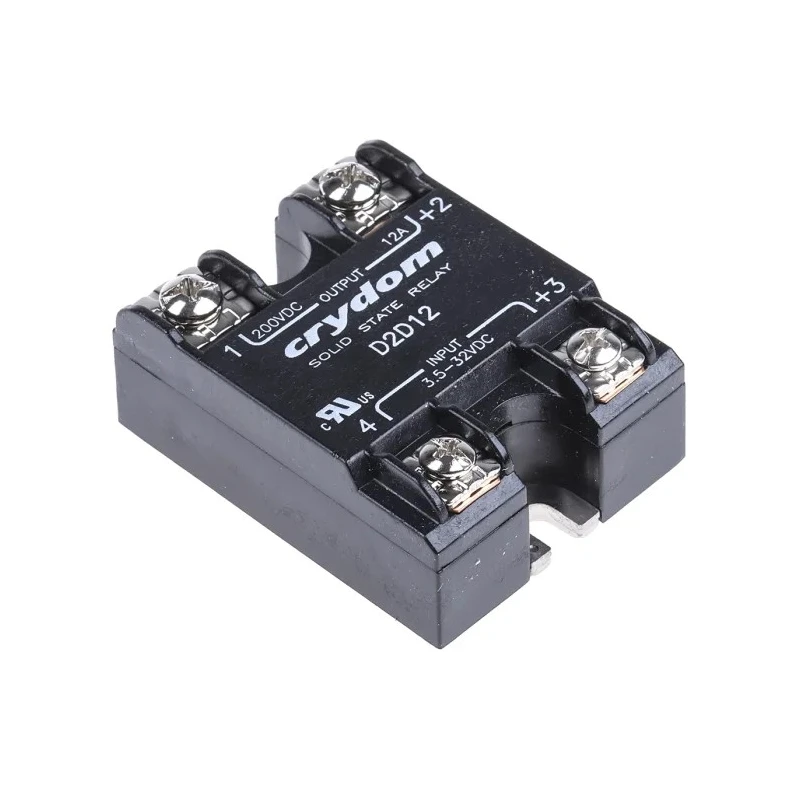

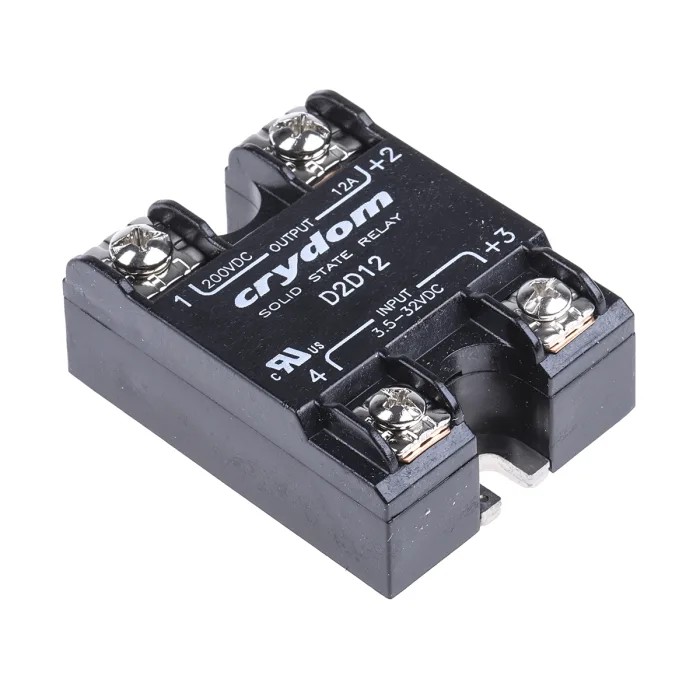

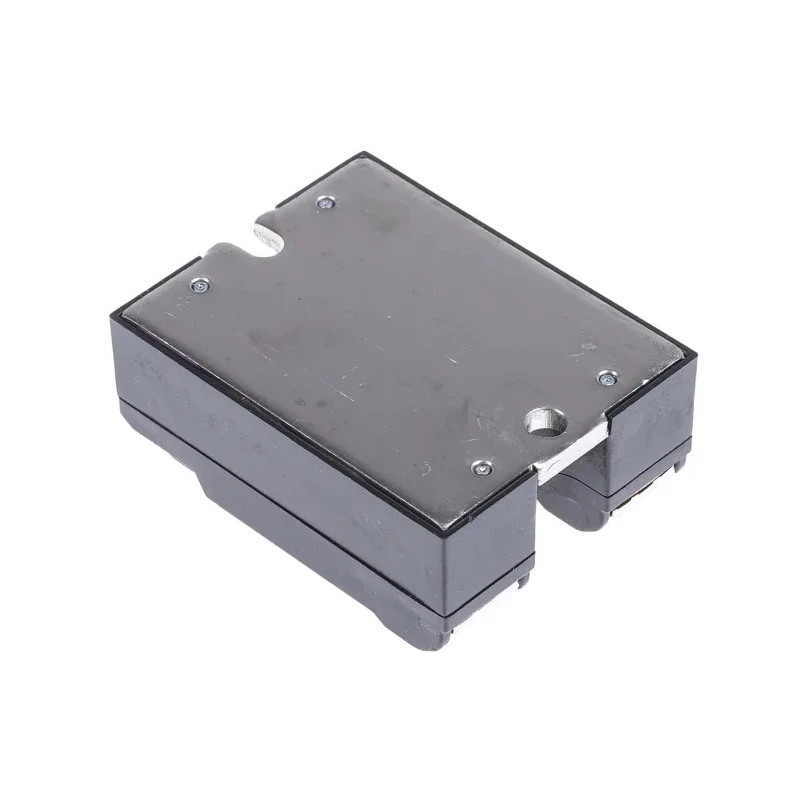

Crydom 1-DC Series Solid State Relay, 12 A Load Current, 200 V Load Voltage, Panel Mount, 32 V Control D2D12

The Crydom D2D12 1-DC Series Solid State Relay provides efficient and reliable switching for electrical equipment control in industrial, automation, and manufacturing applications. Rated for a maximum load current of 12 amperes and a load voltage of 200 volts, this relay is designed to be mounted on panels with pre-drilled holes, facilitating straightforward integration into control systems.

Equipped with SCR output technology and a zero cross switching function, it minimizes electrical noise and enhances switching precision. The relay's screw terminals ensure secure wire connections, while anti-rotation barriers prevent accidental disconnections, supporting safe and stable operation.

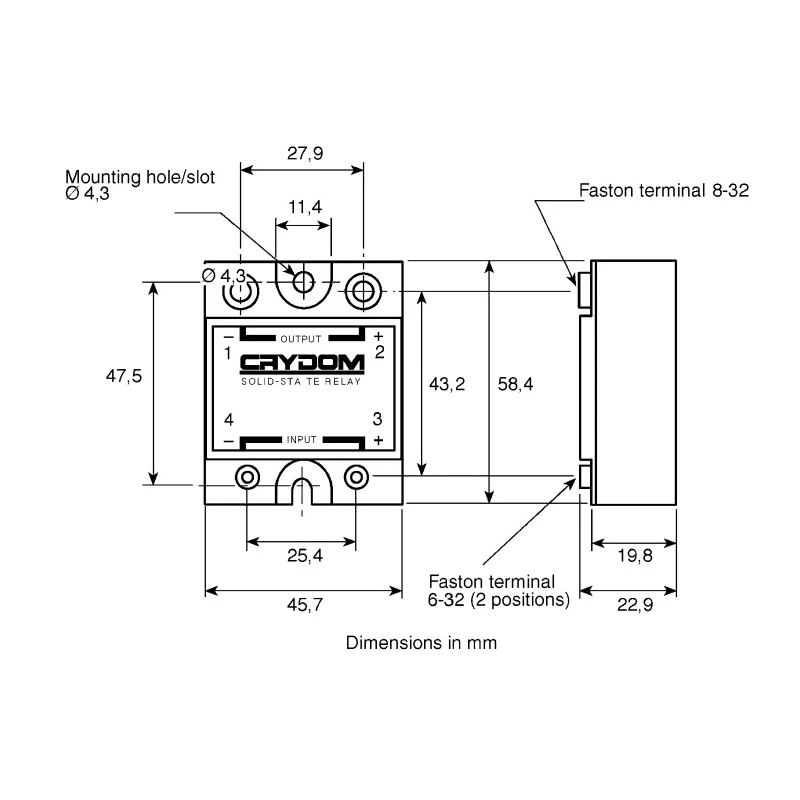

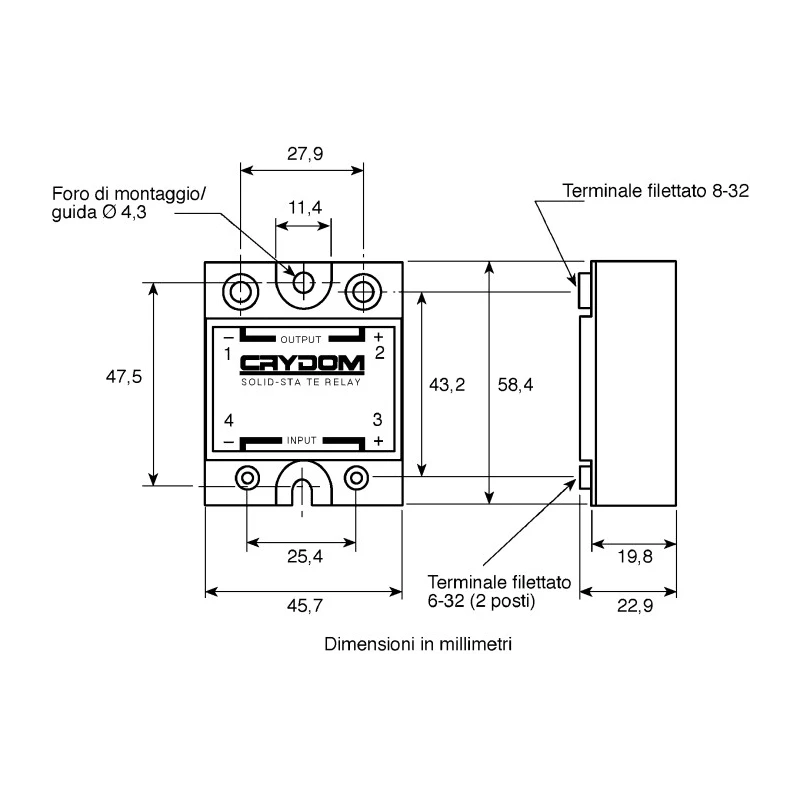

Operating efficiently in harsh environments, the relay supports temperatures ranging from -20°C up to 80°C. Its compact size, measuring 45.7 mm in length, 23 mm in height, and 22.6 mm in width, suits dense panel configurations. Additionally, a low off-state leakage current of 0.3 mA and an input/output capacitance of 8 pF contribute to high signal integrity and energy efficiency.

The IP20-rated enclosure provides basic protection against solid object ingress, making it suitable for many industrial and electrical panel environments. Manufactured in Mexico and compliant with UR, RoHS, and CSA standards, this solid state relay is an excellent choice for controlling motors, pumps, and other heavy electrical loads within factory automation, process control, and HVAC systems.

Utilizes SCR output type for reliable switching. Features zero cross switching function for reduced electrical noise. Screw terminal type ensures secure wiring connections. Wide operating temperature range from -20°C to 80°C for versatility.

Compact dimensions: 45.7 mm length, 23 mm height, and 22.6 mm width. Low off-state leakage current of 0.3 mA for energy efficiency. High integrity signal transmission with 8 pF input/output capacitance. IP20 rated enclosure for adequate protection against ingress.

Mounting holes pre-drilled for easy panel installation. Country of origin: Mexico.
