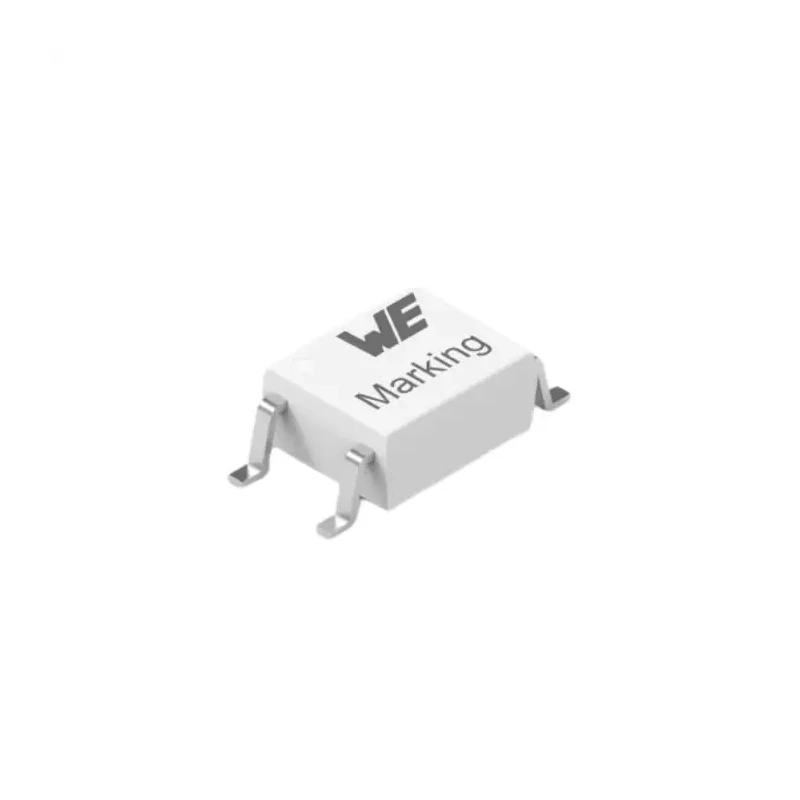

Wurth Elektronik AC Input Phototransistor Surface Mount SOP 4-Pin Package 140354245000
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Output type | Phototransistor |
| Series | WL-OCPT |
| Maximum Operating Temperature | 110°C |
| Package Type | SOP |
| Minimum Operating Temperature | -55°C |
| Maximum input current | 60mA |
| Number Of Channels | 1 |
| Standards/Approvals | UL |
| Maximum Forward Voltage | 1.4V |
| Number of Pins | 4 |
| Input Current Type | AC |
| Typical Rise Time | 5μs |
| Maximum Current Transfer Ratio | 300% |
| Typical Fall Time | 6μs |
| Minimum Current Transfer Ratio | 20% |
Key Features
- Offers a maximum forward voltage of 1.4V for efficient operation.
- Supports an input current type of AC and has a maximum input current rating of 60mA.
- Typical rise time of 5 microseconds and fall time of 6 microseconds ensures rapid response.
- Provides a maximum current transfer ratio of 300% and a minimum of 20%.
- Operates reliably across a temperature range from -55°C to 110°C.
- Is RoHS compliant and halogen free, meeting environmental standards.
- Encased in a white plastic housing suitable for industrial and electronics applications.
- Isolation voltage rated at 3750Vrms ensures safety and performance.
Product Description
The Wurth Elektronik 140354245000 AC Input Phototransistor is a high-performance optocoupler device designed for surface mounting applications. Packaged in a compact 4-pin Small Outline Package (SOP), it is ideal for enhancing isolation and signal transfer in electronic circuits.
It provides a maximum forward voltage of 1.4 volts and supports an AC input current type with a maximum input current of 60mA, ensuring efficient current control and signal processing. With a typical rise time of 5 microseconds and a fall time of 6 microseconds, this phototransistor offers rapid switching capabilities suitable for dynamic environments.
Featuring a current transfer ratio range of 20% minimum to 300% maximum, the component delivers stable and precise amplification of input signals. The device operates over a wide temperature range from -55 degrees Celsius to 110 degrees Celsius, allowing reliable operation in harsh industrial, manufacturing, and commercial environments.
Housed in a white plastic body, this phototransistor meets environmental compliance with RoHS and halogen-free designations for eco-friendly electronics manufacturing. It maintains a high isolation voltage rating of 3750Vrms, providing electrical separation for sensitive equipment and enhancing safety and noise immunity.
Maximum forward voltage of 1.4V for optimum electrical performance. AC input current type with a maximum input current of 60mA. Typical rise time of 5μs and fall time of 6μs ensuring swift operation. Current transfer ratio between 20% and 300%, supporting variable gain applications.
Compact 4-pin SOP package for surface mounting convenience. Operating temperature range from -55°C to 110°C for versatile environmental conditions. RoHS compliant and halogen free to meet environmental standards. Isolation voltage of 3750Vrms for enhanced electrical safety.
UL approved certification ensuring quality and reliability.
This phototransistor is extensively used in electronics, power and connector applications, suitable for industrial, manufacturing, and laboratory uses that require isolation and precise optical current sensing. Its surface mount design allows for high-density PCB layouts in compact devices.
Explore more electronic components and optocouplers at EnvMart to fulfill your design and production needs.
Explore more products in our Electronic Components, Power & Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input current rating for this model is 60mA, which supports efficient current control and signal processing.
This phototransistor has a typical rise time of 5 microseconds and a fall time of 6 microseconds, enabling rapid switching capabilities.
It operates reliably across a temperature range from -55°C to 110°C, making it suitable for various industrial and commercial environments.
The maximum forward voltage for this device is 1.4V, which is crucial for its efficient operation.
The current transfer ratio for this model ranges from a minimum of 20% to a maximum of 300%, allowing for variable gain applications.
This model supports an AC input current type, making it suitable for various electronic applications.
The isolation voltage for this phototransistor is rated at 3750Vrms, providing electrical separation for sensitive equipment.
It comes in a 4-pin Small Outline Package (SOP), designed for surface mounting applications.
Yes, it is RoHS compliant and halogen free, meeting environmental standards for eco-friendly electronics manufacturing.
This phototransistor is packaged in tape and reel format, which is suitable for automated assembly processes.
This model is UL approved, ensuring it meets quality and reliability standards for electronic components.
It is extensively used in electronics, power and connector applications, suitable for industrial, manufacturing, and laboratory uses that require isolation and precise optical current sensing.
