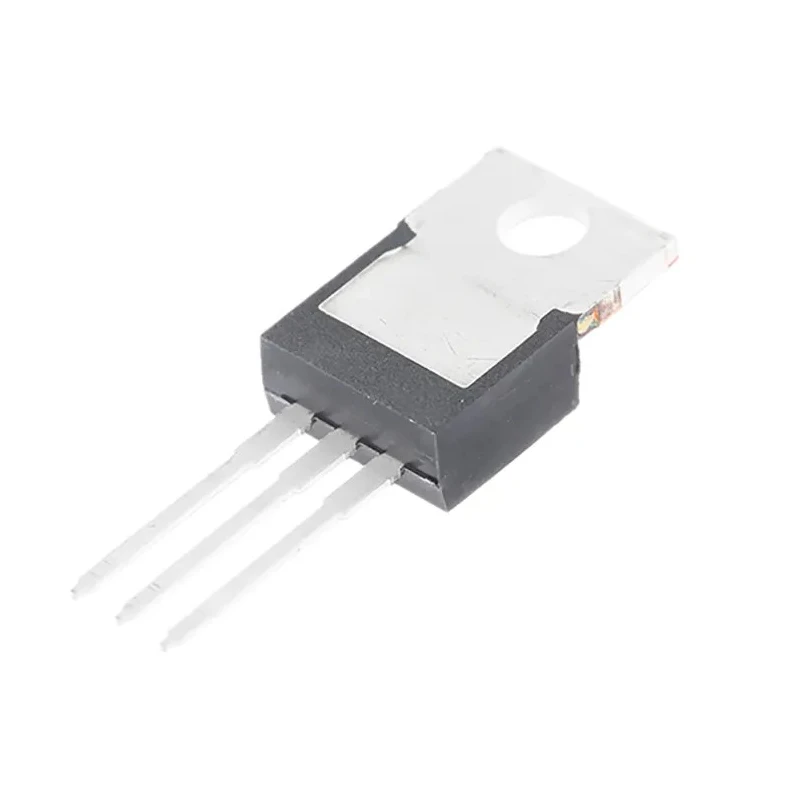

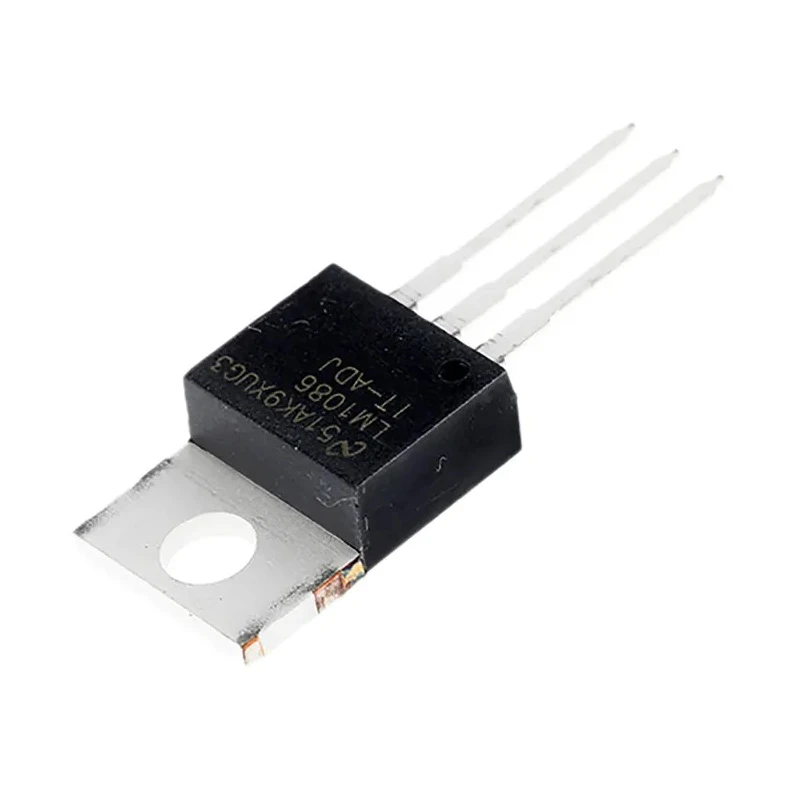

Texas Instruments Adjustable LDO Linear Voltage Regulator 1.5A 30V TO-220 3-Pin LM1086IT-ADJ/NOPB
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Regulators Texas Instruments LM1086IT-ADJ/NOPB, Voltage Regulator 30V TO-220 3-P |
| Brand | Texas Instruments |
| Height | 8.89mm |
| Length | 10.16mm |
| Model | LM1086IT-ADJ/NOPB |
| Width | 4.7mm |
| Mount Type | Through Hole |
| Series | LM1086 |
| Maximum Operating Temperature | 125°C |
| Package Type | TO-220 |
| Polarity | Positive |
| Maximum Input Voltage | 30V |
| Quiescent Current | 5mA |
| Minimum Input Voltage | 2.6V |
| Pin Count | 3 |
Key Features
- Adjustable low dropout linear voltage regulator capable of delivering up to 1.5A output current.
- Operates with a maximum input voltage of 30 volts and a minimum input voltage of 2.6 volts.
- Three-pin TO-220 through-hole package suitable for efficient heat dissipation.
- Low quiescent current of 5mA for improved power efficiency in circuits.
- Maximum operating temperature rating of 125°C to support demanding industrial environments.
- Positive polarity regulator used for voltage regulation in diverse electronics applications.
- Ideal for use in power management ICs, regulator circuits, and embedded electronic systems.
Product Description
Texas Instruments LM1086IT-ADJ/NOPB is an adjustable low dropout (LDO) linear voltage regulator designed for industrial and commercial applications requiring reliable 1.5A current supply and precise voltage regulation. Packaged in a durable TO-220 3-pin through hole form factor, it offers easy integration into power management subsystems.
This regulator supports a wide input voltage range from 2.6 volts minimum to 30 volts maximum, making it suitable for various power supply configurations. Its low quiescent current of 5mA ensures minimum energy wastage during idle conditions, contributing to enhanced circuit efficiency.
The LM1086IT-ADJ/NOPB is rated for a maximum operating temperature of 125°C, ensuring robust performance in high-temperature environments often encountered in industrial and electronic manufacturing settings. Its positive polarity and adjustable output voltage capability provide flexible voltage regulation tailored to application needs.
Measuring 10.16mm in length, 4.7mm in width, and 8.89mm in height, this voltage regulator fits compact designs without compromising thermal dissipation, aided by the TO-220 package's built-in heat sink capability.
Adjustable linear voltage regulator capable of up to 1.5A output current. Operates with input voltages from 2.6V to 30V. Low quiescent current of 5mA enhances power efficiency. TO-220 3-pin package suitable for through-hole mounting.
Maximum operating temperature of 125°C for demanding environments. Compact dimensions support space-constrained electronic designs. Ideal for power management, embedded systems, and industrial electronics.
This product belongs to the category of Voltage Regulators under Power Management ICs in Electronics & Electricals. Its reliable performance and flexibility make it suitable for industrial machinery, laboratory instruments, manufacturing control systems, and electronic device power supplies.
Explore the wide range of Texas Instruments power management solutions and Voltage Regulators on EnvMart for comprehensive electronic component sourcing.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It can deliver up to 1.5A output current.
This model operates with a minimum input voltage of 2.6 volts and a maximum input voltage of 30 volts.
The quiescent current is 5mA, which enhances power efficiency during idle conditions.
The dimensions are 10.16mm in length, 4.7mm in width, and 8.89mm in height.
It is rated for a maximum operating temperature of 125°C, making it suitable for demanding environments.
It supports through-hole mounting, which is suitable for efficient integration into circuits.
It is a positive polarity regulator used for voltage regulation in various applications.
It is ideal for power management ICs, regulator circuits, and embedded electronic systems.
The TO-220 package features built-in heat sink capability, which supports efficient thermal dissipation.
The adjustable output voltage capability allows for flexible voltage regulation tailored to specific application needs.
The country of origin for this product is India.
