Littelfuse Thyristor SCR S602BS2RP 600 V 1.5 A 15 A 0.05 mA Gate Trigger Current SOT-89 Surface Mount

Free Delivery in India | Lowest Global Shipping Charges

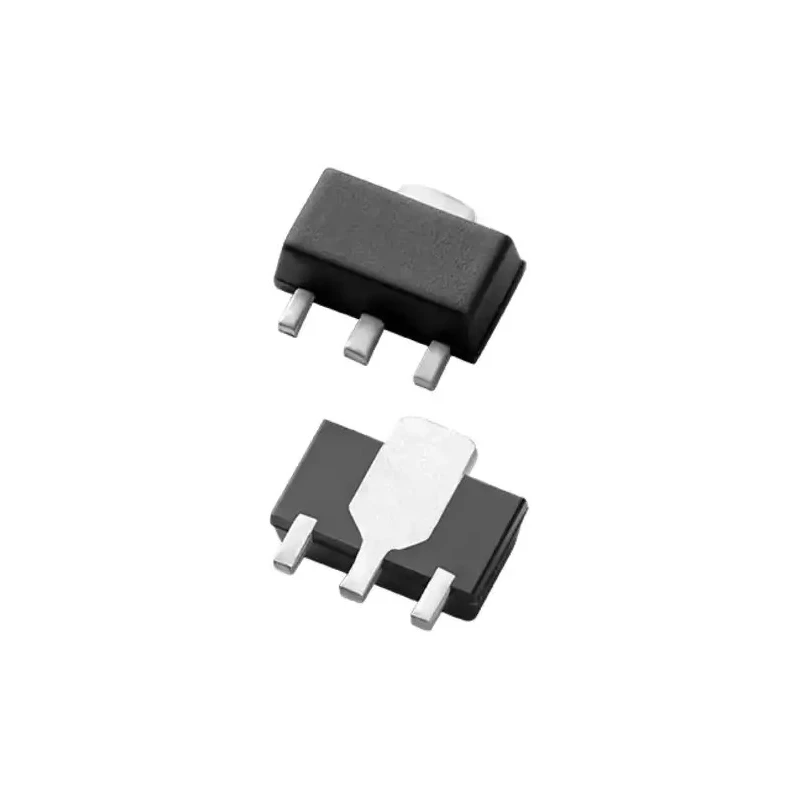

Littelfuse Thyristor SCR S602BS2RP 600 V 1.5 A 15 A 0.05 mA Gate Trigger Current SOT-89 Surface Mount

Name: Littelfuse Thyristor SCR S602BS2RP 600 V 1.5 A 15 A 0.05 mA Gate Trigger Current SOT-89 Surface Mount
Brand: LITTELFUSE
SKU: 339214
Price: 20.22 USD
Availability: InStock



Category Semiconductors Brand LITTELFUSE Condition New

Specifications

Country of Origin	India
Brand	Littelfuse
Model	S602BS2RP
Mount Type	Surface
Series	Sx02xS
Maximum Operating Temperature	125°C
Package Type	SOT-89
Minimum Operating Temperature	-40°C
Rated Average On-State Current Irms	1.5A
Thyristor Type	SCR
Repetitive Peak Reverse Voltage VDRM	600V
Surge Current Rating	15A
Maximum Gate Trigger Current Igt	0.05mA
Maximum Holding Current Ih	3mA
Maximum Gate Trigger Voltage Vgt	0.8V
Peak On-State Voltage	600V
Repetitive Peak Off-State Current	500μA

Key Features

Package type SOT-89 designed for surface mounting applications.
Maximum gate trigger current of 0.05 mA ensures efficient triggering.
Maximum gate trigger voltage of 0.8 V for reliable operation.
Maximum holding current of 3 mA supporting device stability.
Operates within temperature range from -40°C to 125°C.
High static dv/dt with fast turn-off time less than 35 microseconds.
Glass-passivated junctions provide long term reliability and parametric stability.
Suitable for solenoid drive circuits, GFCI and safety cut-off devices.

Product Description

Littelfuse S602BS2RP is a high-performance thyristor SCR designed for electronic applications requiring robust switching capabilities. It operates at a repetitive peak reverse voltage of 600 V and handles an average on-state current of 1.5 A with a surge current rating of up to 15 A. Its compact SOT-89 package is optimized for surface mount assembly, making it ideal for compact PCB layouts.

The device features a maximum gate trigger current of 0.05 mA and a maximum gate trigger voltage of 0.8 V, enabling low power control circuitry. Its maximum holding current of 3 mA ensures the SCR remains conducting only when necessary, enhancing efficiency. The junctions are glass-passivated, ensuring long-term stability and reliability of parameters.

Engineered with a small die planar construction, this thyristor offers high static dv/dt and improved switching performance with a turn-off time less than 35 microseconds, making it suitable for solenoid drive applications commonly found in Ground Fault Circuit Interrupters (GFCI) and other safety cut-off devices.

Compact SOT-89 surface mount package. Repetitive peak reverse voltage of 600 V. Average on-state current of 1.5 A with 15 A surge capability. Maximum gate trigger current 0.05 mA and voltage 0.8 V. Wide operating temperature range from -40°C to 125°C.

Glass-passivated junctions for enhanced reliability. Low turn-off time less than 35 microseconds. Designed for electronic safety and control applications. RoHS compliant and halogen-free.

This thyristor is predominantly used in industrial, electronic component manufacturing, and consumer electronics applications, including power control, safety devices, and switching modules. It fits seamlessly in electronic circuits requiring robust and reliable semiconductor switching components.
