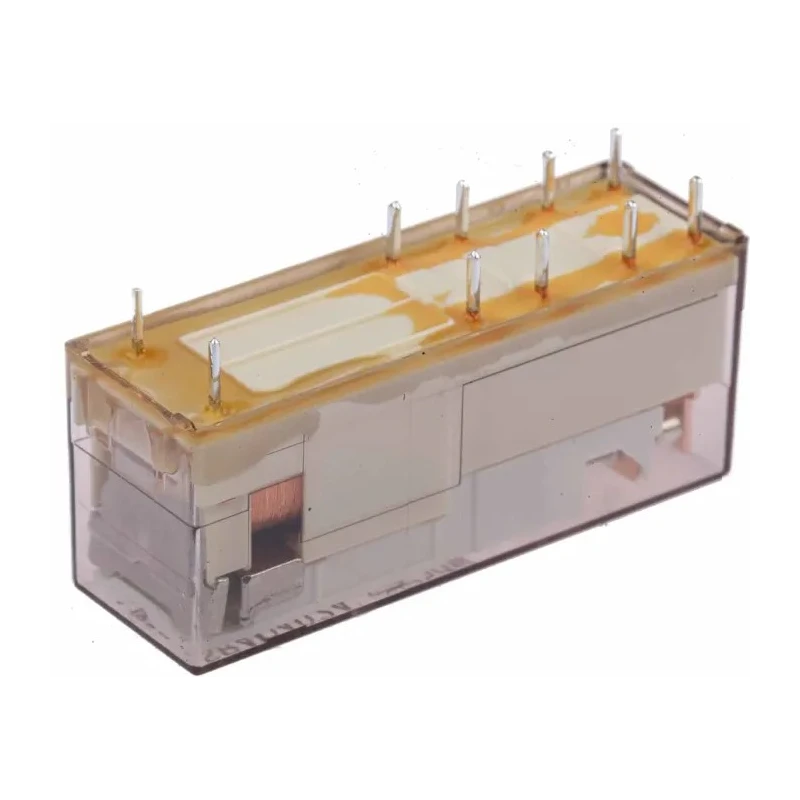

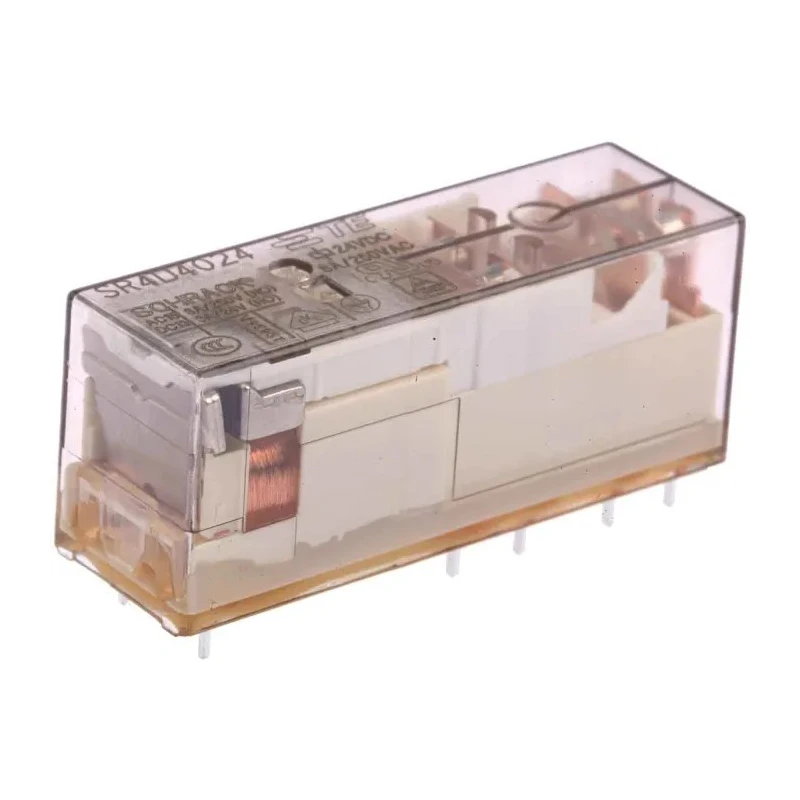

TE Connectivity Force Guided Relay 24V DC Coil Voltage 4-Pole DPDT SR4D4024 3-1415055-1
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Brand | TE Connectivity |
| Height | 16.5mm |
| Length | 40mm |
| Model | SR4D4024 3-1415055-1 |
| Depth | 13mm |
| Contact Material | Silver Alloy |
| Series | SR4 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -25°C |
| Terminal type | Through Hole |
| Number of Poles | 4 |
| Coil Resistance | 720Ω |
| Coil Power | 800mW |
| Isolation Coil To Contact | 4kVrms |
Key Features
- The relay features a coil resistance of 720 ohms to ensure energy-efficient operation.
- Contact configuration is DPDT, providing dual pole double throw switching.
- Silver alloy contact material offers high conductivity and durability.
- Operates reliably in temperatures ranging from -25°C to 70°C.
- Through-hole terminal type supports secure and robust PCB assembly.
- Compact dimensions of 40 mm length, 16.5 mm height, and 13 mm depth maximize space efficiency.
- Isolation between coil and contact is rated at 4kVrms for enhanced safety.
- Designed for elevator controls, emergency shut-off systems, machine control, and press control applications.
Product Description
TE Connectivity SR4D4024 3-1415055-1 Force Guided Relay is a high-quality, non-latching safety relay featuring a 24V DC coil voltage and four pole contacts configured as DPDT. It is designed for PCB mounting with through-hole terminals, combining compact dimensions of 40 mm length, 16.5 mm height, and 13 mm depth to optimize board space.
The relay coil has a resistance of 720 ohms and a coil power consumption of approximately 800 mW, providing efficient operation. It uses silver alloy contacts (AgSnO2) which ensure durability and superior conductivity for switching currents up to 8 A. The isolation voltage between coil and contacts is rated at 4 kVrms, ensuring robust electrical safety.
Designed to operate in industrial temperature ranges from -25°C to 70°C, this relay withstands harsh environmental conditions. Its force guided contacts comply with EN 50205 standards, frequently employed in safety critical automation contexts such as elevator and escalator controls, emergency shut-off circuits, machine control, and press control systems.
The relay’s DPDT contact configuration provides flexible switching arrangements suitable for complex control systems. Through-hole terminal design ensures secure and reliable PCB mounting in architectural configurations.
Compact and space-efficient design facilitates integration in dense electronic assemblies. Robust electrical isolation between coil and contacts enhances system safety and prevents failures. Certified to EN 50205, providing peace of mind for industrial safety relay requirements.
This force guided relay from TE Connectivity is a reliable choice for industrial, automation, building, and safety applications where precise contact sequencing and safety compliance are essential. Browse EnvMart’s wide range of relays and Force Guided Relays for additional electrical control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates with a coil voltage of 24V DC.
It features a DPDT (Dual Pole Double Throw) contact configuration.
The maximum operating temperature is 70°C.
The isolation between the coil and contact is rated at 4kVrms.
The coil resistance is 720 ohms.
The relay has compact dimensions of 40 mm in length, 16.5 mm in height, and 13 mm in depth.
It uses through-hole terminals for secure PCB mounting.
The coil power consumption is approximately 800 mW.
It is designed for applications such as elevator controls, emergency shut-off systems, machine control, and press control.
The contacts are made from silver alloy, providing high conductivity and durability.
The minimum operating temperature is -25°C.
This model has 4 poles.
