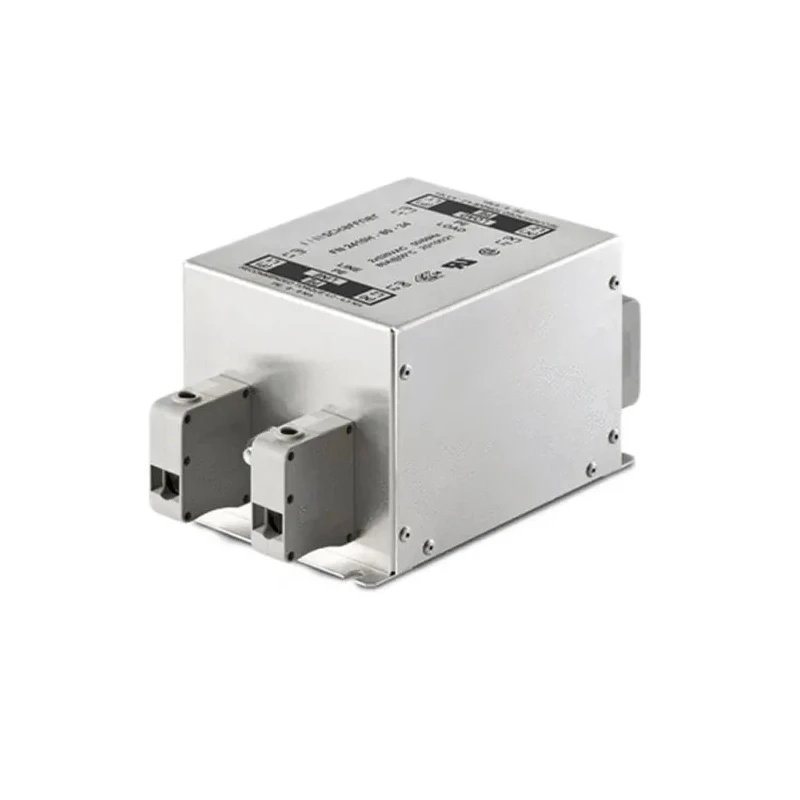

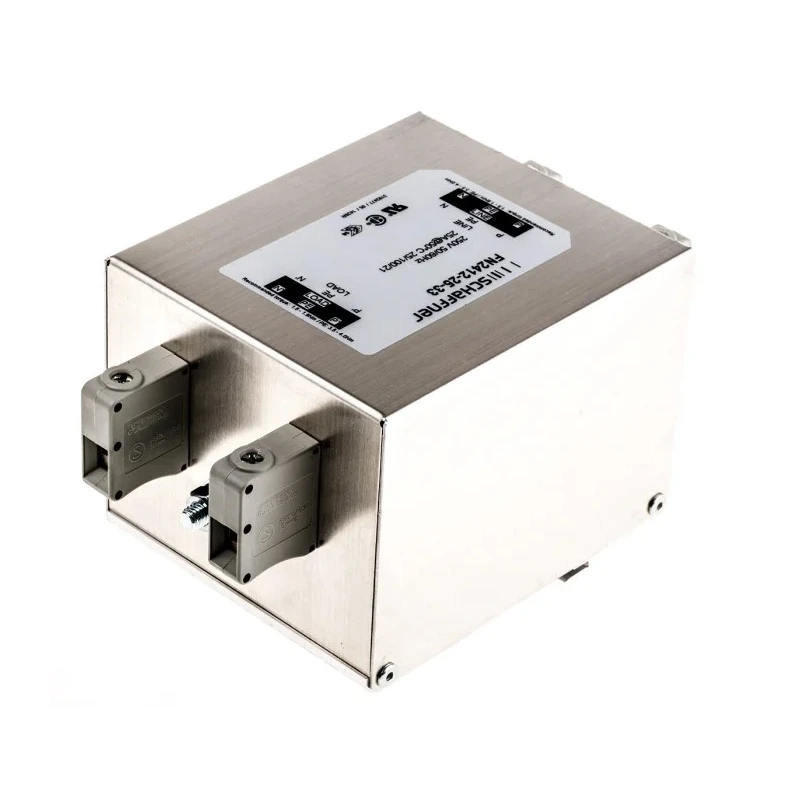

Schaffner DIN Rail EMC Filter 25A 250V AC 400Hz Terminal Block 1 Phase FN2412

Free Delivery in India | Lowest Global Shipping Charges

Schaffner DIN Rail EMC Filter 25A 250V AC 400Hz Terminal Block 1 Phase FN2412

Name: Schaffner DIN Rail EMC Filter 25A 250V AC 400Hz Terminal Block 1 Phase FN2412
Brand: Schaffner
SKU: 338428
Price: 168.97 USD
Availability: InStock



Category Terminal Block Brand Schaffner Condition New

Specifications

Country of Origin	India
Brand	Schaffner
Height	87mm
Length	93mm
Model	FN2412
Depth	160mm
Mount Type	DIN Rail
Operating Frequency	400Hz
Series	FN2412
Maximum Operating Temperature	100°C
Number Of Stages	1
Capacitance	4.7μF
Minimum Operating Temperature	-25°C
Maximum Current	25A
Number of Phases	1
Leakage Current	3.4mA
Maximum Voltage	250V ac
Termination Style	Terminal Block
Power Loss	5.5W

Key Features

Robust DIN rail mounting for easy installation.
Terminal block termination style ensures secure electrical connections.
Designed for single-phase applications with one stage filtering.
Capacitance rating of 4.7μF ensures effective EMI noise suppression.
Operates reliably between -25°C to 100°C temperature range.
Leakage current rated at 3.4mA maintains safety during operation.
Complies with EN 133 200 standard and UL1283, CSA22.2 No.8 1986 approvals.
Power loss is minimal at 5.5W under full load.

Product Description

Schaffner FN2412 DIN Rail EMC Filter is engineered for industrial and electronic applications requiring high-quality conducted attenuation of electromagnetic interference. This 1-phase filter accommodates a maximum current of 25A and operates at 250V AC with a frequency of 400Hz, making it ideal for use in single-phase variable-speed motor drives, inverters, and converters.

Its DIN rail mount design allows for fast and secure snap-in installation on standard TS 35 DIN rails, supporting up to 45A operation. The terminal block termination style provides a reliable electrical connection suitable for harsh industrial environments.

The filter features a capacitance of 4.7μF and effectively suppresses EMI noise, ensuring equipment runs smoothly without interference. It maintains performance even in noisy environments and under full load conditions, thanks to chokes with high saturation resistance and excellent thermal behavior.

This EMC filter is rated for operation in a temperature range from -25°C to 100°C with a leakage current of 3.4mA, ensuring safety and reliability. Power dissipation is measured at 5.5 watts, contributing to energy-efficient operation.

Compact and robust, the filter's dimensions are 87mm in height, 93mm in length, and 160mm in depth, making it suitable for various industrial control panels and setups. Robust DIN rail mounting for rapid installation. Industrial-grade Terminal Blocks for electrical safety.

Capacitance provides effective EMI filtering. Suitable for harsh industrial operating temperatures. Minimal power loss for efficient operation. Compliance with EN 133 200 and UL1283, CSA22.2 No.8 1986 standards. Designed to maintain performance under noisy conditions and full load.

Ideal for motors, inverters, converters, and industrial equipment. This Schaffner FN2412 DIN Rail EMC Filter is essential for ensuring electromagnetic compatibility and smooth operation of sensitive industrial electronic components.
