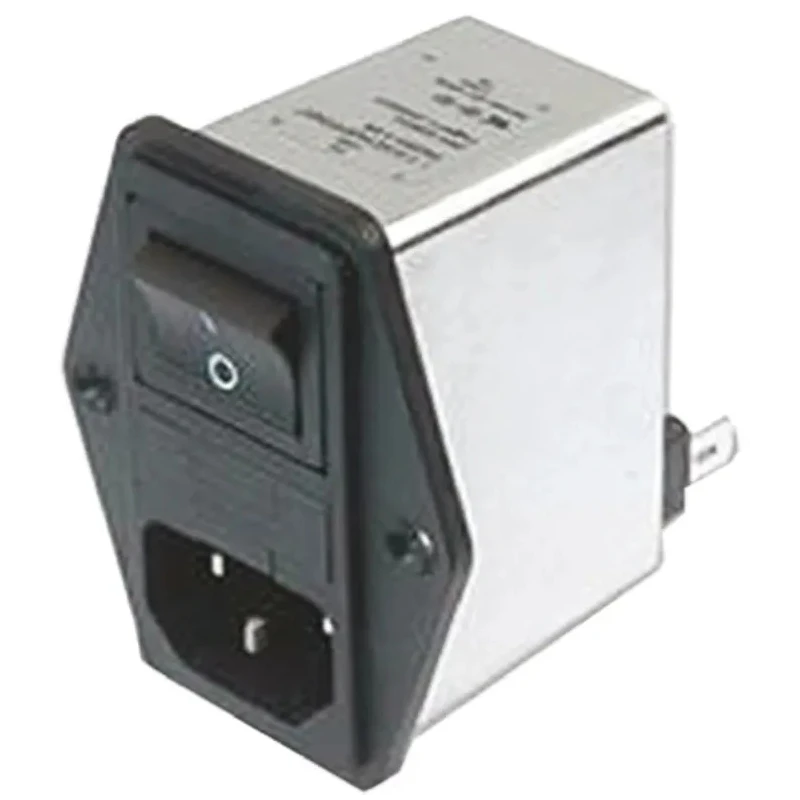

Schaffner 250V ac 1.2A 2 Pole Flange IEC Filter Male Connector with 1 Fuse FN283-1-06
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V ac |
| Brand | Schaffner |
| Current | 1.2A |
| Height | 65mm |
| Model | FN283-1-06 |
| Filter Type | Line |
| Depth | 62mm |
| Width | 50mm |
| Mount Type | Flange |
| Operating Frequency | 400, 50Hz |
| Switch Type | 2 Pole |
| Series | FN28X |
| Termination Type | Faston |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -25°C |
| Contact Gender | Male |
| Connector Gender | Male |
| Fuse Size | 5 x 20 mm |
| Number of Fuses | 1 |
| IEC Connector Type | C14 |
Key Features
- Includes a single 5 x 20 mm fuse for circuit protection.
- Designed for flange mounting with IEC C14 connector type.
- Operates efficiently at 400 and 50Hz frequency.
- Faston termination type with male contact gender ensures reliable connections.
- Operating temperature range from -25°C to 85°C supports diverse environments.
- Suitable for use in portable electronic equipment and power supplies.
- Part of the FN280 series offering line filtering with integrated fuse holder and rocker switch.
Product Description
Schaffner FN283-1-06 flange IEC filter is a reliable power entry module rated for 250V ac voltage and 1.2A current. This device integrates an IEC inlet with a mains filter, a single fuse holder, and a 2-pole rocker switch in a compact flange-mount form factor. It features a 5 x 20 mm fuse and faston termination for easy and secure installation.
The filter operates at frequencies of 400 and 50Hz and is designed to withstand operating temperatures from -25°C up to 85°C. With its IEC C14 male connector, it provides efficient line filtering for electronic, portable, and single-phase power supplies. Its compact size (65mm height x 62mm depth x 50mm width) makes it suitable for integration into various electrical equipment including consumer goods, office devices, test and measurement instruments, and medical equipment.
The FN280 series is known for its extensive range of amperage ratings, fuse options, and mounting possibilities. This product complies with IEC/EN 60601-1 and is ideal for applications requiring effective electromagnetic interference (EMI) line filtration combined with protective fuse functionality.
Includes a single fuse rated 1.2A with 5 x 20 mm size for reliable circuit protection. Faston termination and male contacts enhance connection reliability. Flange mount type facilitates stable integration into devices. Rated for voltage of 250V ac suitable for standard mains power.
Compact dimensions support space-conscious installation requirements.
This Schaffner IEC filter model FN283-1-06 is suited for industrial, laboratory, office, medical, and power supply applications where electromagnetic interference suppression and circuit safety are critical. For more IEC Filters and related power connectors, explore the Electronics Components category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Schaffner FN283-1-06 IEC filter is rated for 250V AC voltage.
This model has a current capacity of 1.2A.
The dimensions of this IEC filter are 65mm in height, 62mm in depth, and 50mm in width.
It operates efficiently within a temperature range of -25°C to 85°C.
This filter uses an IEC C14 male connector type.
The FN283-1-06 features Faston termination for reliable connections.
The filter operates at frequencies of 400Hz and 50Hz.
Yes, it includes a single 5 x 20 mm fuse for circuit protection.
This model integrates a 2-pole rocker switch.
The FN283-1-06 is designed for flange mounting.
It is suitable for use in portable electronic equipment and power supplies, including industrial, laboratory, and medical applications.
This model is part of the FN280 series, which offers a range of amperage ratings and fuse options.
