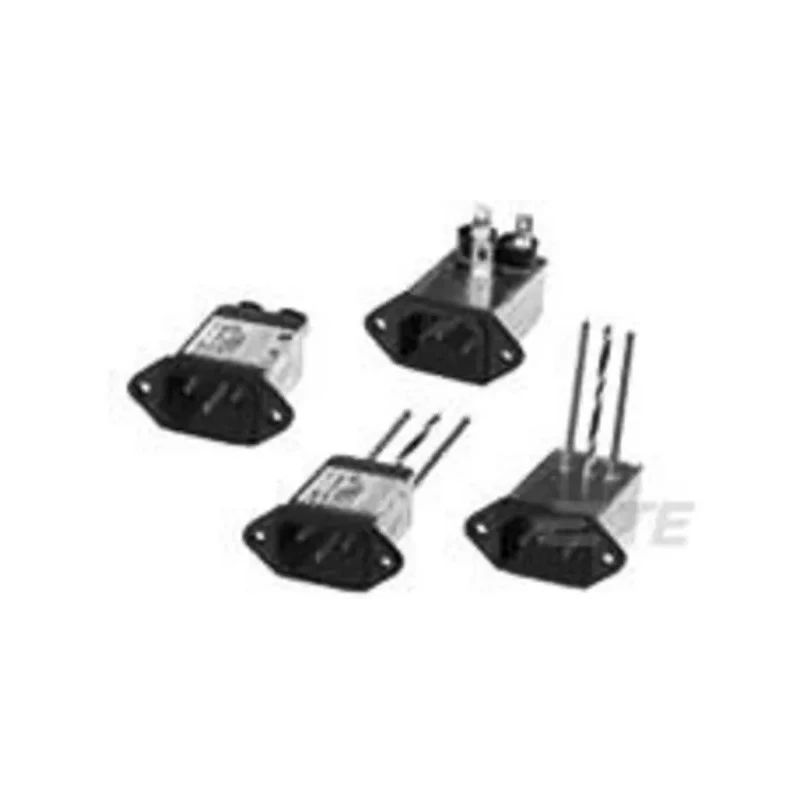

TE Connectivity IEC Filter 250V AC 3A Flange, Right Angle Wire Termination 3ED8
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 250V ac |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 3A |
| Height | 39.4mm |
| Model | 3ED8 |
| Depth | 20.06mm |
| Mount Type | Flange |
| Operating Frequency | 50, 60Hz |
| Series | Corcom ED |
| Termination Type | Wire |
| Maximum Operating Temperature | 40°C |
| Minimum Operating Temperature | -10°C |
| Standards/Approvals | CSA, UL |
Key Features
- The filter features a flange mount and wire termination for right angle orientation.
- Designed for operating frequencies of 50 and 60 Hz to suit typical AC power lines.
- Operates in ambient temperatures ranging from -10°C to 40°C.
- Medium attenuation capability with internal ground-circuit inductor versions available for chassis isolation.
- Compact height of 39.4 mm and depth of 20.06 mm for space-efficient installations.
- Meets CSA and UL standards ensuring safety and reliability in industrial applications.
- Suited for EMI filtering in electronic components, power connectors, and industrial equipment.
Product Description
TE Connectivity 3ED8 IEC Filter is a medium performance compact EMI power inlet filter designed for industrial and commercial electronic applications. Rated at 250V AC voltage and 3A current, it provides effective interference suppression for power lines with a two element circuit that achieves medium attenuation levels.
The filter features a flange mounting type with wire termination in a right angle orientation, enabling easy and secure installation into equipment chassis. It operates reliably within a temperature range of -10°C to 40°C, suitable for typical industrial environments.
Operating frequency is compatible with 50 and 60 Hz AC power systems, making it suitable for a wide range of regions and applications. This IEC filter includes safety approvals from CSA and UL, guaranteeing compliance with stringent electrical safety standards.
With a compact form factor measuring 39.4 mm in height and 20.06 mm in depth, this device fits seamlessly into space-constrained setups. Optional model versions with an internal ground-circuit inductor help isolate equipment chassis from the power line ground, reducing electromagnetic interference at radio frequencies.
TE Connectivity's 3ED8 filter is ideal for integration in electronic equipment, power connectors, industrial devices, and systems requiring reliable EMI suppression. It supports enhanced performance in environments such as manufacturing, telecommunications, power distribution, and laboratory instrumentation.
The filter offers medium attenuation with a two element circuit design. Right angle wire termination and flange mount provide versatile installation options. Equipment operating range from -10°C to 40°C for industrial robustness.
Compliance with CSA and UL standards ensures safety and reliability. Compact dimensions enable integration into limited space assemblies. Suitable for use in EMI filtering across multiple industrial and electronic applications.
Explore EnvMart's Electronics Components category for more high-quality IEC Filters and power connectors from trusted brands like TE Connectivity.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The voltage rating of this filter is 250V AC.
It has a current capacity of 3A.
This filter has a height of 39.4 mm and a depth of 20.06 mm.
The filter features a flange mount type for installation.
It operates within a temperature range of -10°C to 40°C.
This model is compatible with operating frequencies of 50 and 60 Hz.
Yes, it meets CSA and UL standards for safety and reliability.
The filter uses a wire termination type.
It is suitable for EMI filtering in electronic components, power connectors, and industrial equipment.
Yes, optional versions with an internal ground-circuit inductor are available for chassis isolation.
This filter belongs to the Corcom ED series.
It provides medium attenuation levels with a two element circuit design.
