Entrelec SNA Series Stud Terminal Grey 120mm² 1-Level Bolt 1SNA115149R2000

Free Delivery in India | Lowest Global Shipping Charges

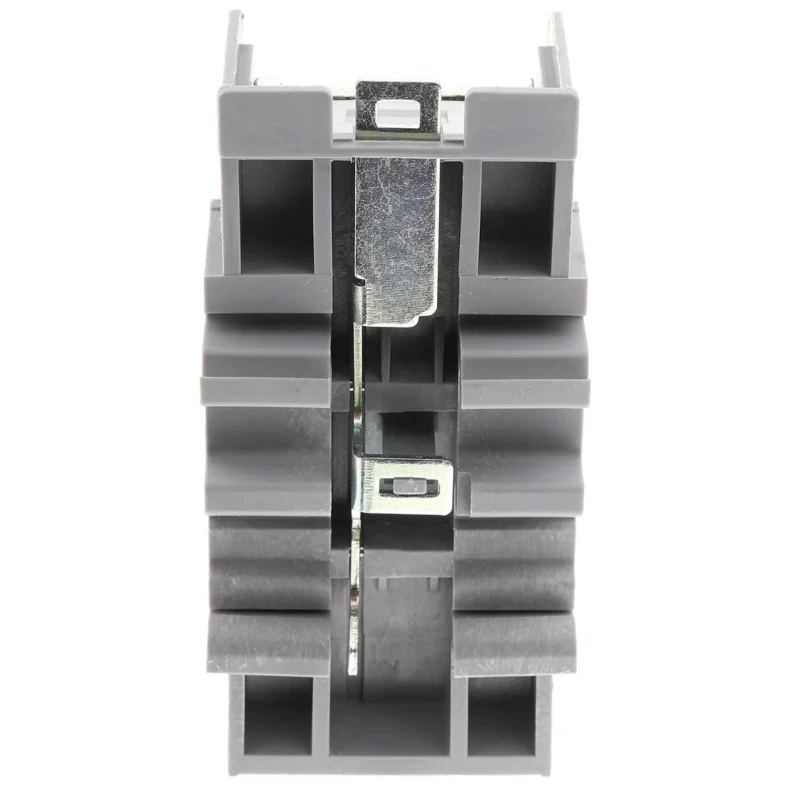

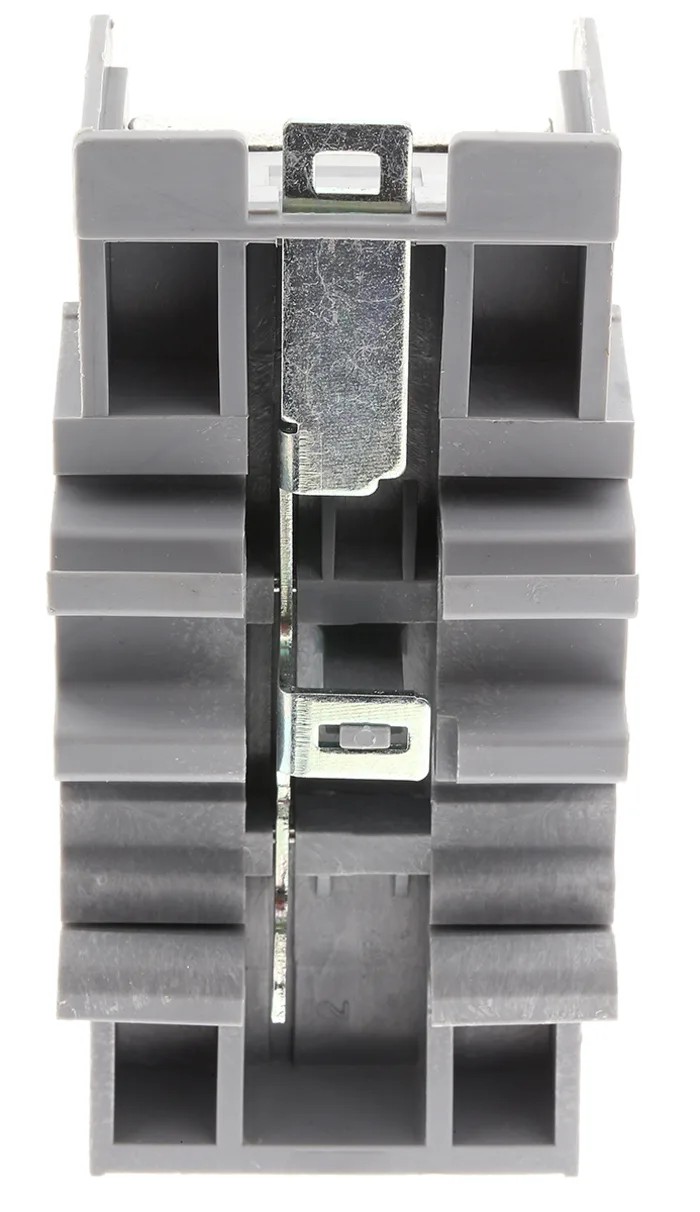

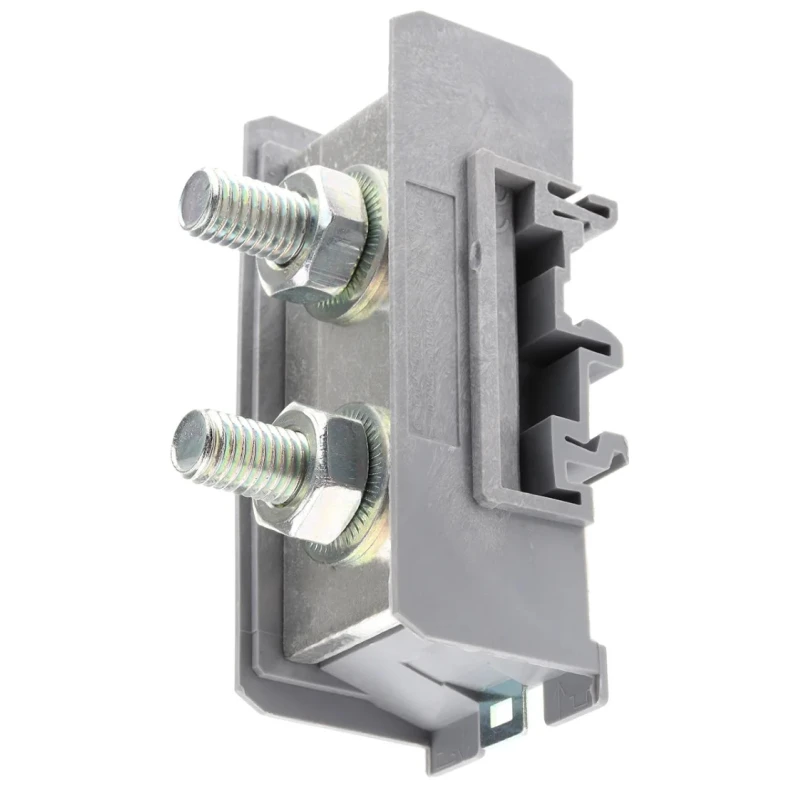

Entrelec SNA Series Stud Terminal Grey 120mm² 1-Level Bolt 1SNA115149R2000

Name: Entrelec SNA Series Stud Terminal Grey 120mm² 1-Level Bolt 1SNA115149R2000
Brand: Entrelec
SKU: 326358
Price: 20.22 USD
Availability: InStock



Category Terminal Block Brand Entrelec Condition New

Specifications

Country of Origin	France
Voltage	1kV ac
Brand	Entrelec
Colour	Grey
Model	1SNA115149R2000
Series	SNA
Termination Type	Bolt
Maximum Operating Temperature	40°C
Number of Levels	1
Sub Type	Terminal Block
Minimum Operating Temperature	-5°C
Pitch	42mm
Standards/Approvals	EU Directive 2011/65/EU
Cable CSA	120mm²
Terminal Block Current	269A

Key Features

Constructed with flame-resistant polyamide 6.6 allowing operation from -5°C to 40°C.
Designed for use with asymmetric or top hat rails with a 42mm pitch.
Includes captive hardened terminal screws to prevent burring and facilitate easy installation.
Compatible with spacers and translucent covers for enhanced terminal isolation.
Complies with EU Directive 2011/65/EU RoHS standards.
Certified for EExe and EExi hazardous area use, offering safety in industrial environments.
Manufactured in France ensuring quality and durability.

Product Description

Entrelec 1SNA115149R2000 SNA Series Stud Terminal is a robust, flame-resistant polyamide 6.6 terminal block designed for power cable termination. It supports a cable cross-sectional area of 120mm² and operates efficiently at voltages up to 1kV AC with a current rating of 269 amps. The product features a bolt termination type ensuring secure electrical connections and reliability in industrial, electrical, and power distribution applications.

With a single level configuration and a 42mm pitch, this terminal is suitable for mounting on both asymmetric rail 'G' profiles and top hat profiles, offering versatility within DIN rail terminal blocks category. The captive hardened terminal screws prevent damage during installation, and the mounting design supports accessories such as spacers and translucent covers for enhanced isolation and safety.

Operating within a temperature range of -5°C to 40°C, the stud terminal complies with EU Directive 2011/65/EU ensuring environmental and safety standards adherence. Its application extends to industrial automation, electrical distribution, power connectors, and hazardous area installations with EExe and EExi certifications.

Manufactured from tough, flame-resistant polyamide 6.6. Supports cable CSA of 120mm² for high current capacity connections. Rated for 1kV AC voltage and 269A terminal block current. Features a bolt termination system with hardened captive screws.

Designed for DIN rail mounting with 42mm pitch and single level. Compatible with isolation spacers and translucent covers for safety. Meets RoHS compliance and EU Directive 2011/65/EU standards. Manufactured in France for high quality and performance.

This stud terminal is well-suited for industrial applications including electrical power management, automation systems, and power connector assemblies. Discover the full range of DIN rail Terminal Blocks and power connectors at EnvMart for your electrical component needs.
