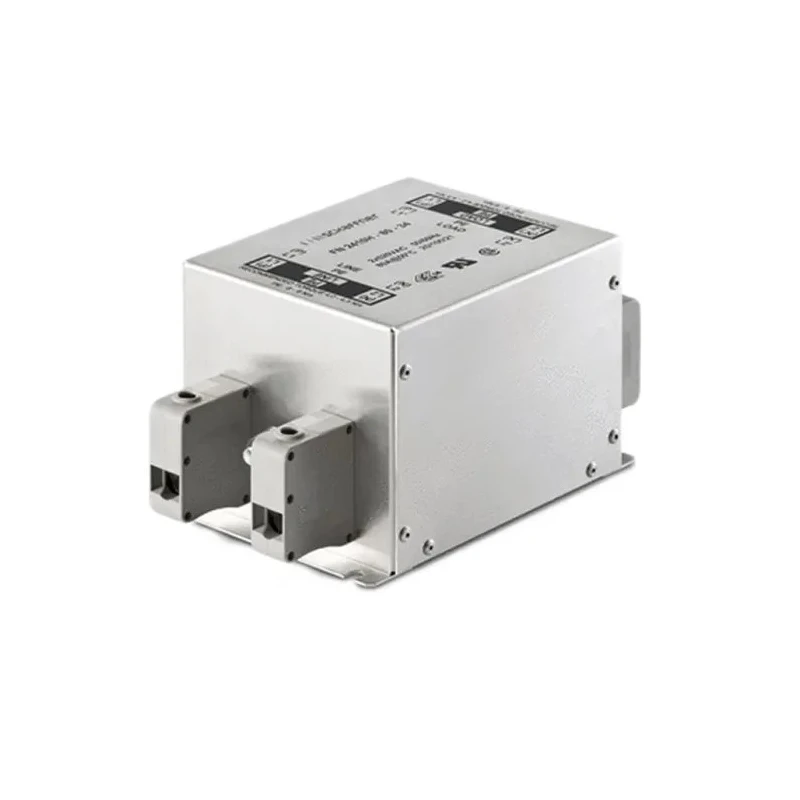

Schaffner DIN Rail EMC Filter 45A 250V AC 400Hz Terminal Block 1 Phase FN2412

Schaffner FN2412 DIN Rail EMC Filter delivers high-performance conducted attenuation using chokes with excellent thermal behavior and saturation resistance. It operates with a maximum current of 45A, voltage of 250V AC, and frequency of 400Hz, supporting single-phase applications.

This filter is engineered for demanding industrial environments including single-phase variable speed motor drives, inverters, converters, and other industrial equipment requiring EMI suppression. Its design ensures stable performance even under high noise and full load conditions.

The device features fast and convenient snap-in installation on popular TS 35 DIN rails with industrial-grade terminal blocks, providing enhanced electrical safety and reliability. The capacitance is rated at 4.7μF with a leakage current of only 3.4mA. It functions efficiently across a temperature range from -25°C to 100°C, with a power loss of 7.4W.

Compact and robust with dimensions of 87mm height, 160mm depth, and 93mm length, this filter fits well in industrial switchboards and control panels. Exceptional conducted attenuation with high saturation resistance chokes.

Maintains filter performance under full load and noisy environments. Suitable for single-phase variable speed motor drives and industrial equipment. Snap-in installation on TS 35 DIN rails rated up to 45A. Industrial grade Terminal Blocks ensure electrical safety.

Capacitance: 4.7μF with leakage current of 3.4mA. Operating temperature range: -25°C to 100°C. Dimensions: 87mm (H) x 160mm (D) x 93mm (L). Power loss of 7.4W during operation.

This Schaffner FN2412 EMC filter is widely used in industrial, manufacturing, HVAC and motor control applications where electromagnetic interference reduction is critical. It is compliant with EN 133 200 and approved to UL1283 and CSA22.2 No.8 1986 standards.
