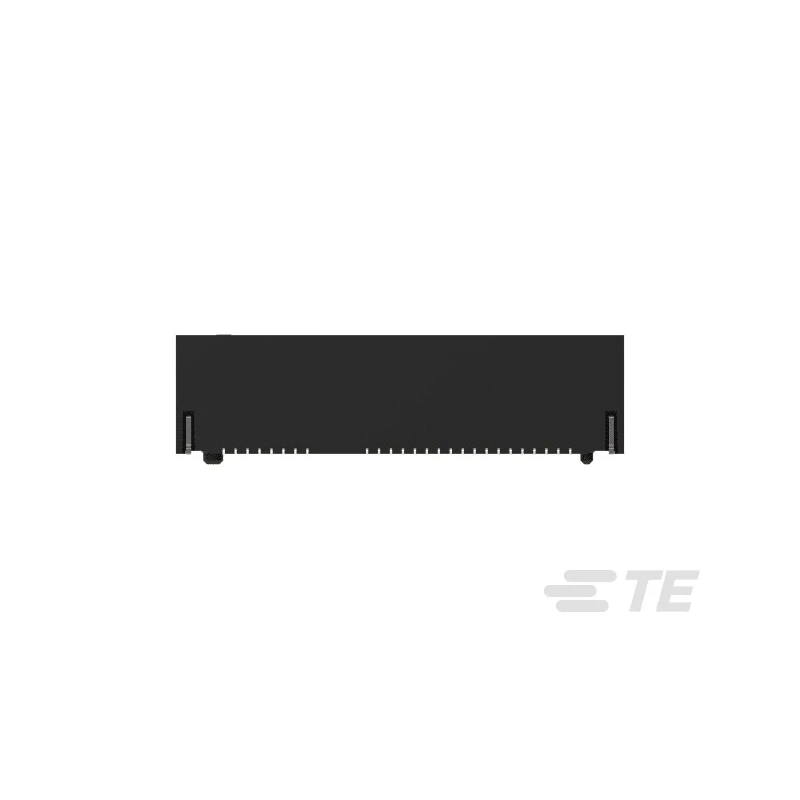

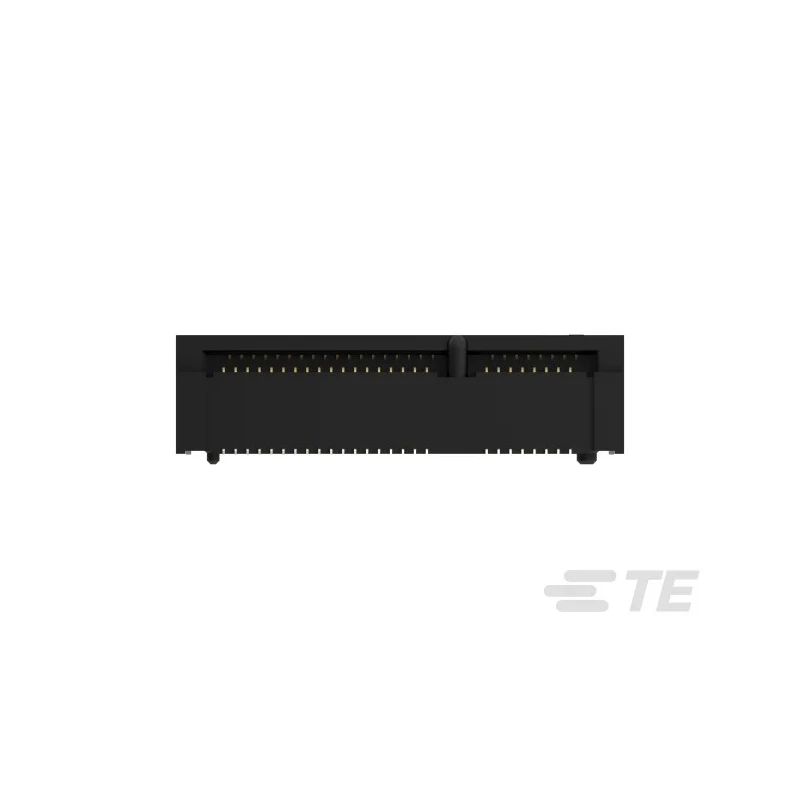

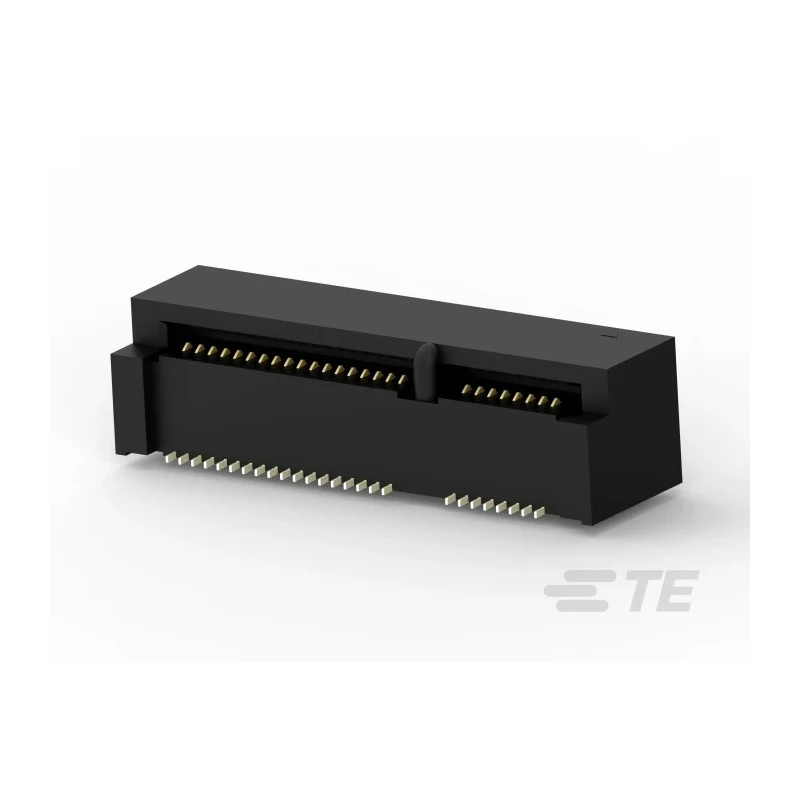

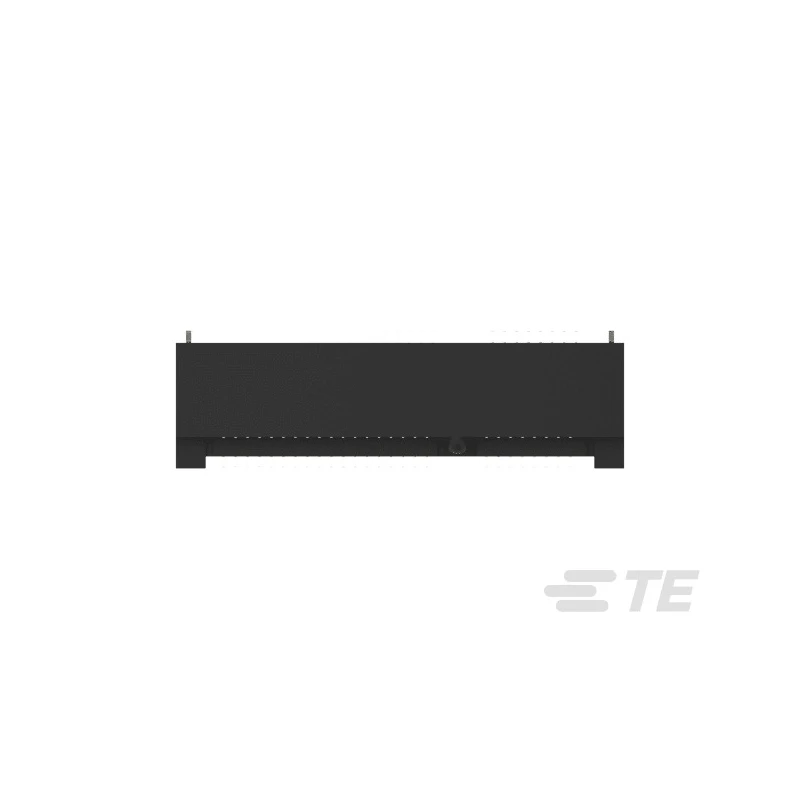

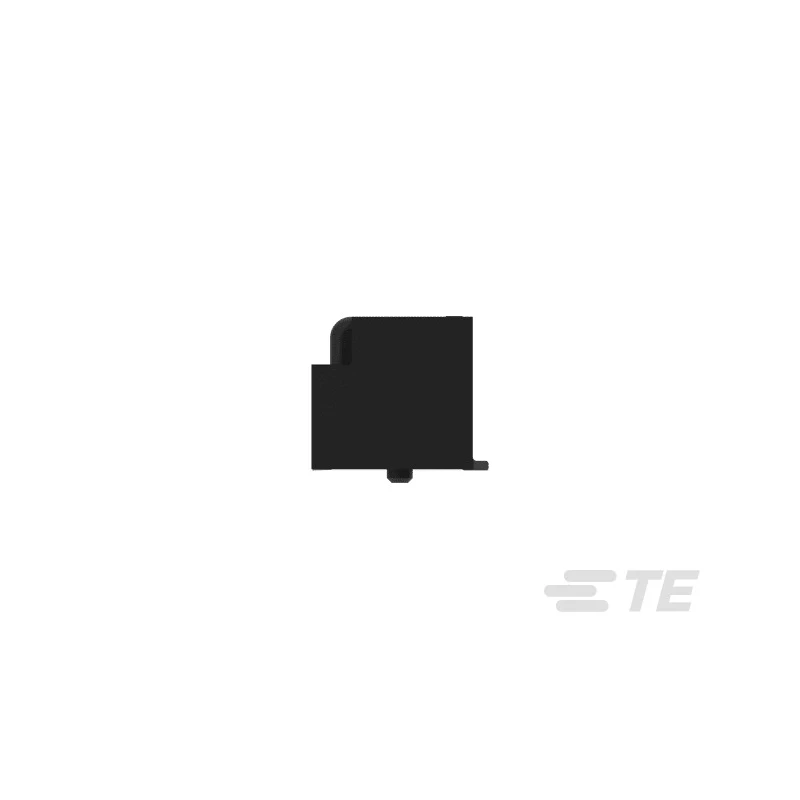

TE Connectivity mini PCI-E Series Straight Edge Connector Female Board 52 Contacts 0.8 mm Pitch 1 Row Solder 1759503-1
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 15V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Mount Type | Board |
| Housing Material | Fibreglass Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | mini PCI-E |
| Termination Type | Solder |
| Number of Rows | 1 |
| Pitch | 0.8mm |
| Standards/Approvals | RoHS |
| Contact Plating | Gold Flash |
| Number of Contacts | 52 |
| Contact Gender | Female |
| Connector Gender | Female |
| Card Type | Mini PCIe |
Key Features
- Compatible with Mini PCIe cards featuring a single row of 52 female contacts.
- Constructed with phosphor bronze contact material plated with gold flash for reliable connectivity.
- Mount type is board-level with solder termination suitable for reflow soldering up to 260°C.
- Housing made of fiberglass liquid crystal polymer ensures durability and stability.
- Complies with RoHS standards ensuring environmental safety.
- Operates safely at voltage rating of 15V suitable for electronic component applications.
- Straight orientation edge connector designed for compact PCI Express interfaces.
- Ideal for applications in electronics, computing, and embedded systems requiring mini PCI-E connectivity.
Product Description
TE Connectivity 1759503-1 mini PCI-E series straight edge connector is a high-quality electronic component designed for reliable connections on printed circuit boards. It features a female connector gender with 52 contacts arranged in a single row at a pitch of 0.8 mm, making it compatible with Mini PCIe card interfaces.
The connector's contacts are made of phosphor bronze and plated with a gold flash to ensure excellent conductivity and corrosion resistance. Termination is solder type, suitable for board mount applications, with capability of reflow soldering up to 260°C, ensuring robust mechanical and electrical stability.
The housing material is fiberglass liquid crystal polymer, selected for its strength and thermal stability, suitable for industrial and commercial electronics environments. This product conforms to RoHS standards, reflecting adherence to environmental and hazardous substance regulations.
With a voltage rating of 15V, this connector is suitable for varied electronic devices and embedded system applications requiring secure and durable PCI Express connections.
The connector's straight orientation simplifies PCB layout and aids compact designs in telecommunications, computing, and industrial control systems. TE Connectivity's established quality assures long-term performance in demanding applications.
Compatible with Mini PCIe cards featuring a single row of 52 female contacts. Constructed with phosphor bronze contact material plated with gold flash for reliable connectivity. Mount type is board-level with solder termination suitable for reflow soldering up to 260°C.
Housing made of fiberglass liquid crystal polymer ensures durability and stability. Complies with RoHS standards ensuring environmental safety. Operates safely at voltage rating of 15V suitable for electronic component applications.
Straight orientation edge connector designed for compact PCI Express interfaces. Ideal for applications in electronics, computing, and embedded systems requiring mini PCI-E connectivity.
This TE Connectivity mini PCI-E series Edge Connector is essential for professionals and industries involved with electronic component manufacturing, telecommunications, computing hardware assembly, and embedded system development. Browse various connectors and edge interface products at EnvMart for additional compatible components to meet your design and production needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contacts on this connector have a pitch of 0.8 mm.
This connector features 52 contacts arranged in a single row.
It operates safely at a voltage rating of 15V, making it suitable for various electronic applications.
The contacts are made of phosphor bronze and are plated with gold flash for enhanced conductivity and corrosion resistance.
It uses a solder termination type, suitable for board mount applications.
The housing is made of fiberglass liquid crystal polymer, which provides strength and thermal stability.
Yes, it complies with RoHS standards, ensuring it meets environmental and hazardous substance regulations.
The connector features a straight orientation, which aids in compact PCB layouts.
The connector is manufactured in India.
It is ideal for applications in electronics, computing, and embedded systems that require mini PCI-E connectivity.
It is suitable for reflow soldering up to a maximum temperature of 260°C.
This connector is compatible with Mini PCIe cards featuring a single row of 52 female contacts.
