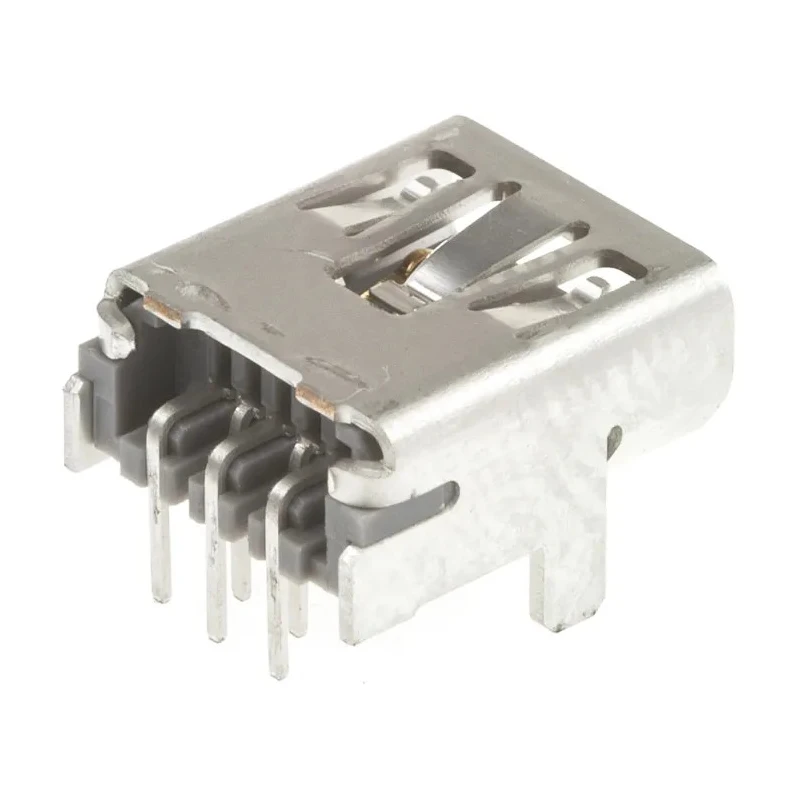

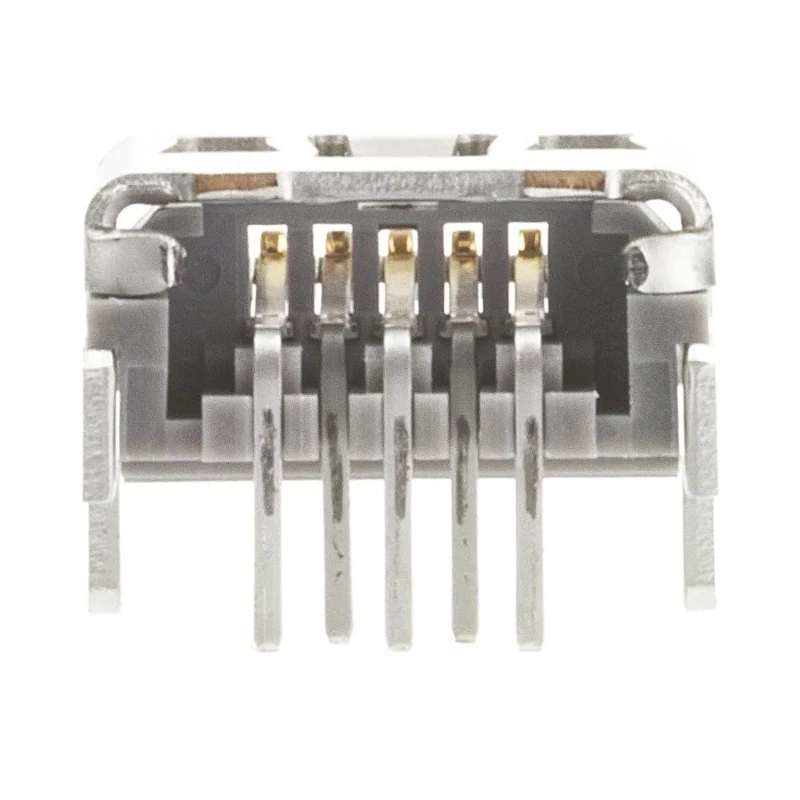

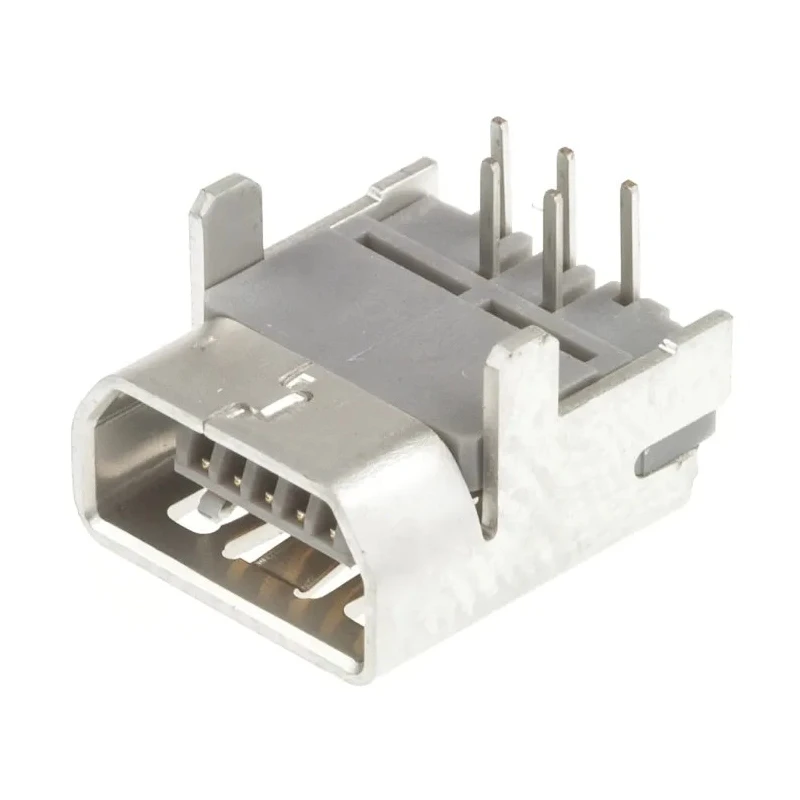

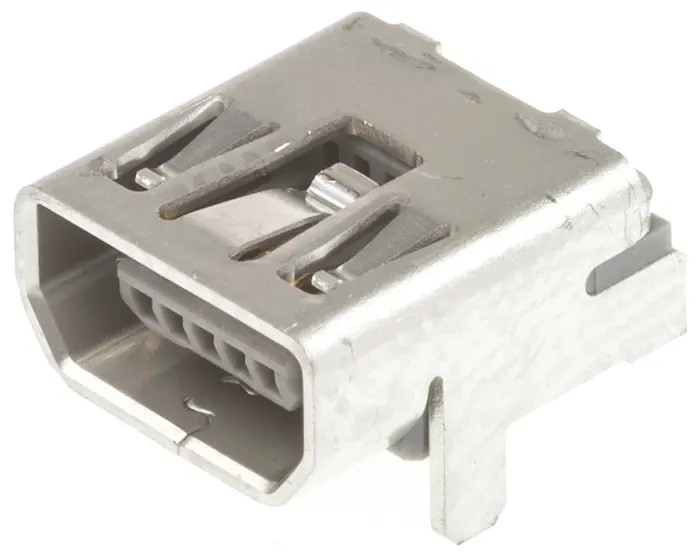

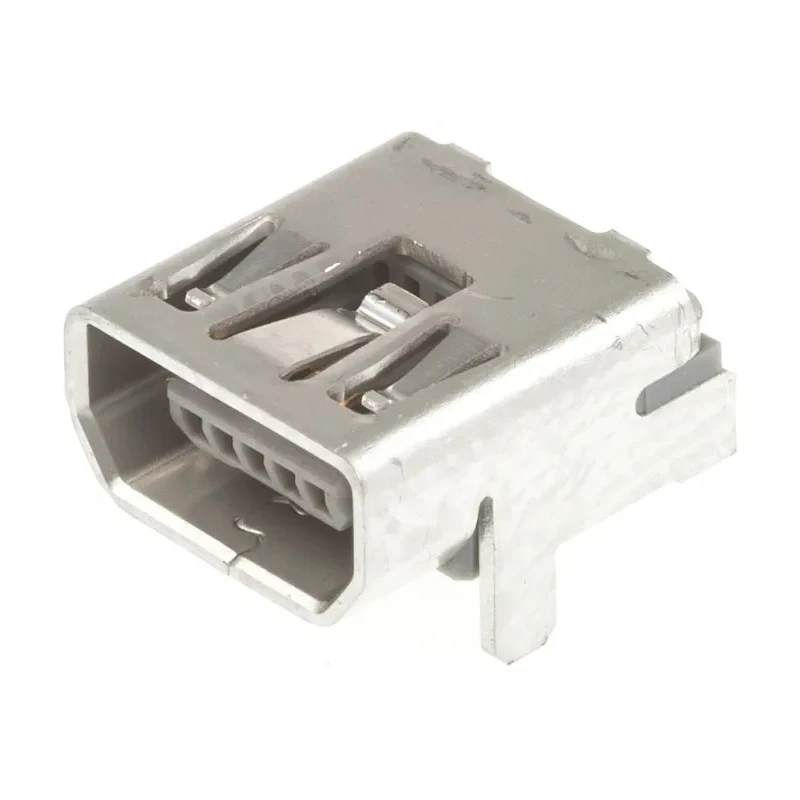

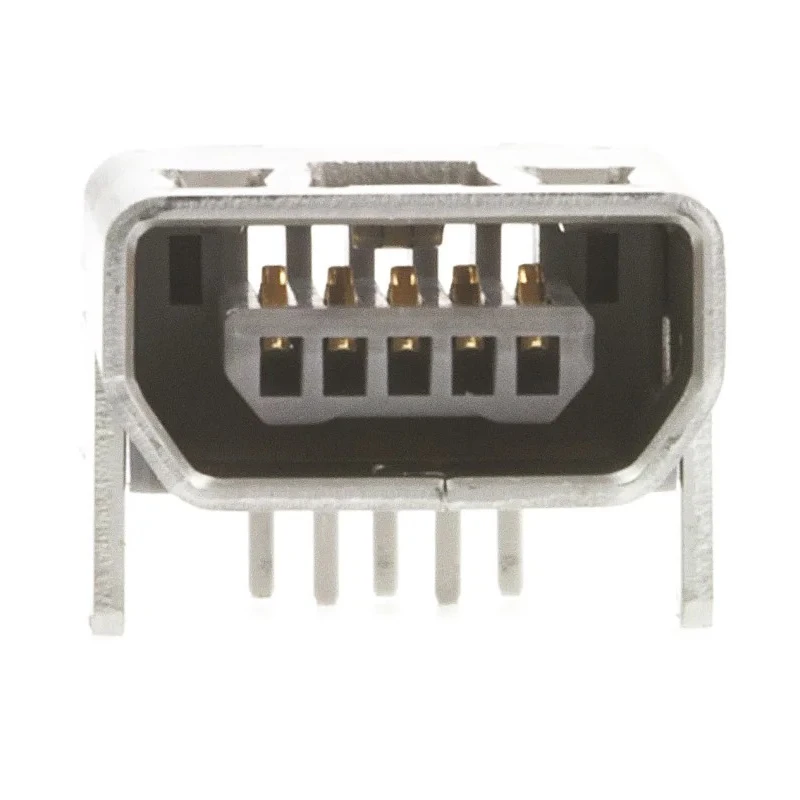

Molex Mini USB Type AB Right Angle Through Hole Female USB Connector USB 2.0 56579-0519
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 30V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 1A |
| Mount Type | Through Hole |
| Contact Material | Copper Alloy |
| Series | On-The-Go |
| Number Of Ports | 1 |
| Termination Type | Solder |
| Maximum Operating Temperature | 50°C |
| Minimum Operating Temperature | 0°C |
| Interfaces | standard USB-B connector Excellent RFI/EMI performance |
| USB Type | Mini USB Type AB |
| Connector Gender | Female |
| USB Specification | USB 2.0 |
Key Features
- Compact right angle design reduces mounting space requirements.
- Supports USB 2.0 specification for data transfer rates up to 480 Mbps.
- Rated for 30V and 1A current for safe operation.
- Constructed with copper alloy contacts for durable performance.
- Operating temperature range from 0°C to 50°C suitable for various environments.
- Through-hole mounting type for secure PCB attachment.
- Female connector gender with 1 port ensures compatibility with mini USB Type AB cables.
- Termination by solder for reliable electrical connection.
Product Description
Molex 56579-0519 is a Mini USB Type AB Right Angle Through Hole Female USB Connector designed according to USB 2.0 standards, providing high-speed data transfer capabilities up to 480 Mbps. Its right angle orientation and through-hole mount reduce PCB space requirements, making it suitable for compact electronic applications.
The connector supports a voltage rating of 30V and a current rating of 1A, ensuring safe and efficient power delivery. Constructed from copper alloy contacts, it offers excellent durability and reliable contact performance under repeated mating cycles.
Operating across a temperature range of 0°C to 50°C, this connector can be used reliably in diverse environments including industrial, consumer electronics, computer peripherals, and embedded system applications.
Features include a 5-pin pitch design, solder termination type for stable electrical connections, and compliance with USB On-The-Go (OTG) specifications to support evolving portable device connectivity needs. The Molex 56579-0519 connector is ideal for integration into compact and lightweight electronics requiring robust USB interfacing.
Compact right angle design reduces PCB footprint. USB 2.0 compliant allowing data rates of up to 480 Mbps. Rated for 30 volts and 1 amp current load. Copper alloy contacts for long-lasting performance. Through-hole mounting for secure connection to circuit boards.
Female connector type with 1 port for mini USB Type AB cables. Wide operating temperature range from 0°C to 50°C. Ideal for industrial, consumer, and embedded applications requiring USB interfacing.
This connector is manufactured in China and represents a high-quality component choice for engineers and designers in electronics manufacturing, laboratory instruments, telecommunications, and computing equipment sectors.
Explore more USB Connectors and related electronic components at EnvMart for your specialized application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports data transfer rates of up to 480 Mbps as per USB 2.0 specifications.
This model is rated for a voltage of 30V and a current of 1A.
It features a through-hole mounting type for secure attachment to PCBs.
It is constructed with copper alloy contacts, providing durability and reliable performance.
The operating temperature range is from 0°C to 50°C, suitable for various environments.
This connector has 1 port designed for mini USB Type AB cables.
It features a right angle orientation, which helps reduce PCB space requirements.
It uses solder termination for a reliable electrical connection.
Yes, it is compliant with USB 2.0 specifications and supports USB On-The-Go (OTG).
It is suitable for industrial, consumer electronics, computer peripherals, and embedded systems.
This model is a female connector, compatible with standard USB-B cables.
It is manufactured in China.
