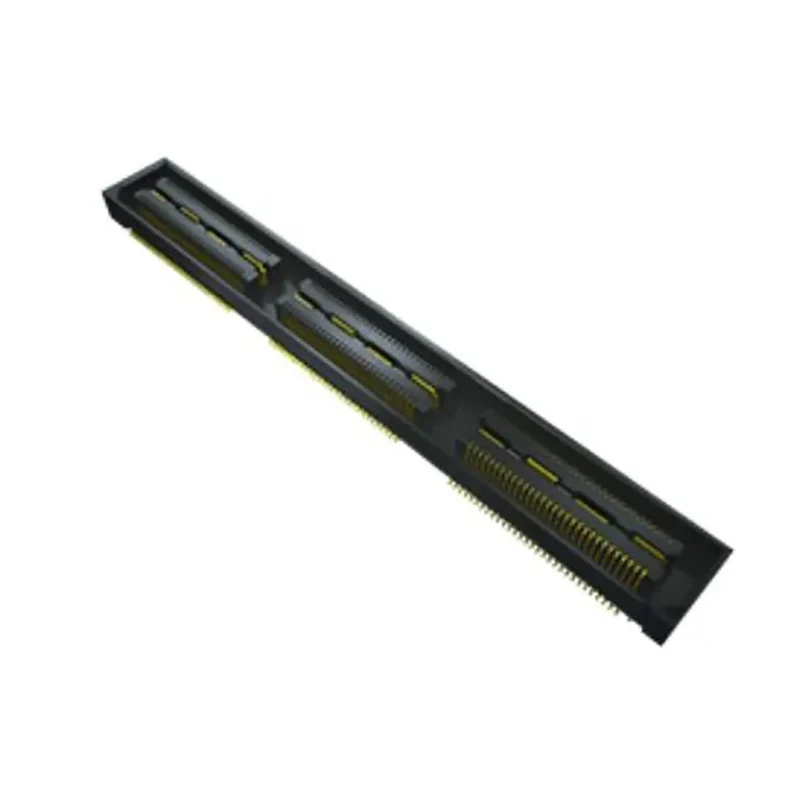

Samtec QSH Series Right Angle Surface PCB Socket 40-Contact 2 Row 0.5 mm Pitch 220V 21.8A QSH-020-01-C-D-DP-A-K
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 220V |
| Brand | Samtec |
| Orientation | Right Angle |
| Current | 21.8A |
| Model | QSH-020-01-C-D-DP-A-K |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | QSH |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Socket |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 0.5mm |
| Standards/Approvals | RoHS |
| Contact Plating | Gold |
| Number of Contacts | 40 |
| Connector System | Board-to-Board |
Key Features
- Operates at a voltage rating of 220V suitable for diverse electronic applications.
- Supports a current capacity of 21.8A ensuring reliable power handling.
- Constructed with a Liquid Crystal Polymer housing offering high thermal and mechanical stability.
- Contacts made of phosphor bronze and plated with gold provide excellent conductivity and corrosion resistance.
- Designed for surface mounting with a right angle orientation to optimize PCB layout.
- Compliant with RoHS standards for environmental and safety assurance.
- Functional within an operating temperature range from -55°C to 125°C.
- Ideal for high-speed and high-density board-to-board connector systems.
Product Description
Samtec QSH-020-01-C-D-DP-A-K is a right angle surface PCB socket designed for board-to-board connection applications requiring high contact density and reliability. It features 40 contacts arranged in two rows with a compact 0.5 mm pitch, facilitating dense circuit designs while maintaining signal integrity.
The socket is constructed with a durable Liquid Crystal Polymer housing, providing excellent heat resistance and mechanical strength to withstand industrial and laboratory environments. The contact material is phosphor bronze plated with gold to ensure superior conductivity and resistance to corrosion, guaranteeing long-term performance.
Operating reliably at 220V and capable of handling currents up to 21.8A, this PCB socket supports demanding electronic power requirements. Its right angle mounting orientation allows efficient usage of PCB real estate and facilitates easy solder termination on surface mount technology boards.
The device complies with RoHS directives, affirming its environmental friendliness and conformity with global safety standards. Its operating temperature range from -55°C to 125°C makes it suitable for use in diverse HVAC, manufacturing, industrial, and commercial electronic equipment.
Operates at 220V voltage rating ensuring compatibility across various devices. Supports 21.8A current for enhanced electrical performance. Liquid Crystal Polymer housing offers durability and heat resistance. Phosphor bronze contacts plated with gold for excellent conductivity.
Right angle surface mount design for efficient PCB layout. Meets RoHS requirements for environmental compliance. Wide operating temperature range from -55°C to 125°C. Suitable for board-to-board connector systems with 0.5 mm pitch.
This product is optimized for use in industrial electronics, laboratory instrumentation, automotive electronics, and other sectors requiring secure and reliable PCB connections. For users seeking advanced PCB socket solutions, the Samtec QSH-020-01-C-D-DP-A-K offers a robust and precise connector option.
Explore more PCB Sockets and connector solutions in our Electronics & Electricals category at EnvMart for comprehensive choices.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates at a voltage rating of 220V, making it suitable for various electronic applications.
This model supports a current capacity of 21.8A, ensuring reliable power handling for demanding applications.
The housing is made of Liquid Crystal Polymer, while the contacts are constructed from phosphor bronze and plated with gold for excellent conductivity and corrosion resistance.
It features a compact 0.5 mm pitch with a total of 40 contacts arranged in two rows.
The operating temperature range is from -55°C to 125°C, allowing it to function in diverse environments.
It is designed for surface mounting with a right angle orientation, optimizing PCB layout.
Yes, it complies with RoHS standards, ensuring environmental and safety assurance.
This unit utilizes solder termination, suitable for surface mount technology boards.
It is designed for board-to-board connector systems, making it ideal for high-density applications.
The right angle orientation allows for efficient usage of PCB real estate and facilitates easy soldering during installation.
The QSH-020-01-C-D-DP-A-K is manufactured in India.
This socket is part of the QSH series, which features high contact density and reliability for electronic applications.
