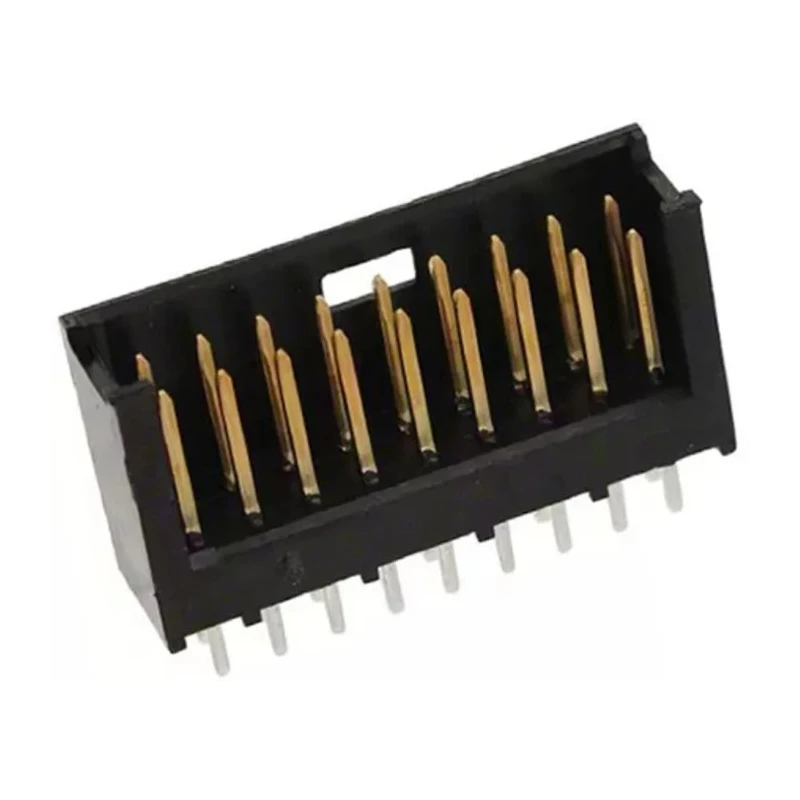

TE Connectivity AMPMODU Mod II Series Straight Through Hole 2 Row Shrouded PCB Header 18 Contacts 2.54 mm Pitch 280509-2
Specifications
| Country of Origin | Italy |
|---|---|
| Voltage | 750V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 3A |
| Model | 280509-2 |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Brass |
| Series | AMPMODU MOD II |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 18 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 3.5mm |
Key Features
- Features a shrouded 2 row design for enhanced protection.
- Supports a maximum current rating of 3 A.
- Constructed with thermoplastic housing and brass contacts plated in gold.
- Provides polarization to prevent mismating and includes a detent positive locking mechanism.
- Solder termination type with male contacts and 3.5 mm tail pin length.
- Suitable for board-to-board and wire-to-board connector systems.
- Rated for voltage up to 750 V with operating temperature range from -65°C to 105°C.
- Manufactured in Italy ensuring quality and reliability.
Product Description
TE Connectivity 280509-2 AMPMODU Mod II Series Straight Through Hole Shrouded PCB Header features 18 male contacts in a 2 row configuration with a 2.54 mm pitch. Its thermoplastic housing provides robust insulation and shrouding on three sides protects the pins from damage and mismating, essential for high-reliability industrial and automotive applications.
The header incorporates polarization to ensure proper connector orientation and a detent positive locking mechanism for secure mating in demanding environments. Brass contacts plated with gold offer excellent conductivity and corrosion resistance, while a solder termination type ensures stable mounting on printed circuit boards.
Rated at 3 A current and capable of handling voltages up to 750 V, this connector performs reliably in temperature ranges from -65°C to 105°C, making it ideal for a wide array of industrial, automotive, telecommunications, computing, and medical instrument applications.
This product supports board-to-board and wire-to-board connector systems with a straight orientation and through hole mount type, facilitating versatile PCB interconnect solutions.
Manufactured in Italy with high-quality standards, the AMPMODU Mod II interconnect system from TE Connectivity is a proven reliable choice for automation and control applications where signal integrity and mechanical stability are paramount.
Features a shrouded 2 row design for enhanced protection. Supports a maximum current rating of 3 A. Constructed with thermoplastic housing and brass contacts plated in gold. Provides polarization to prevent mismating and includes a detent positive locking mechanism.
Solder termination type with male contacts and 3.5 mm tail pin length. Suitable for board-to-board and wire-to-board connector systems. Rated for voltage up to 750 V with operating temperature range from -65°C to 105°C. Manufactured in Italy ensuring quality and reliability.
Explore more TE Connectivity connectors and PCB Headers at EnvMart to meet your precise industrial and electronic interconnection requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB header supports a maximum current rating of 3 A.
It is rated for voltages up to 750 V.
The operating temperature range is from -65°C to 105°C.
This connector features 18 male contacts.
The pitch size of the contacts is 2.54 mm.
It is constructed with a thermoplastic housing and brass contacts plated in gold.
This model uses a solder termination type.
The tail pin length is 3.5 mm.
This header is designed for through hole mounting.
It is suitable for board-to-board and wire-to-board connector systems.
Yes, it provides polarization to prevent mismating and includes a detent positive locking mechanism.
This product is manufactured in Italy.
