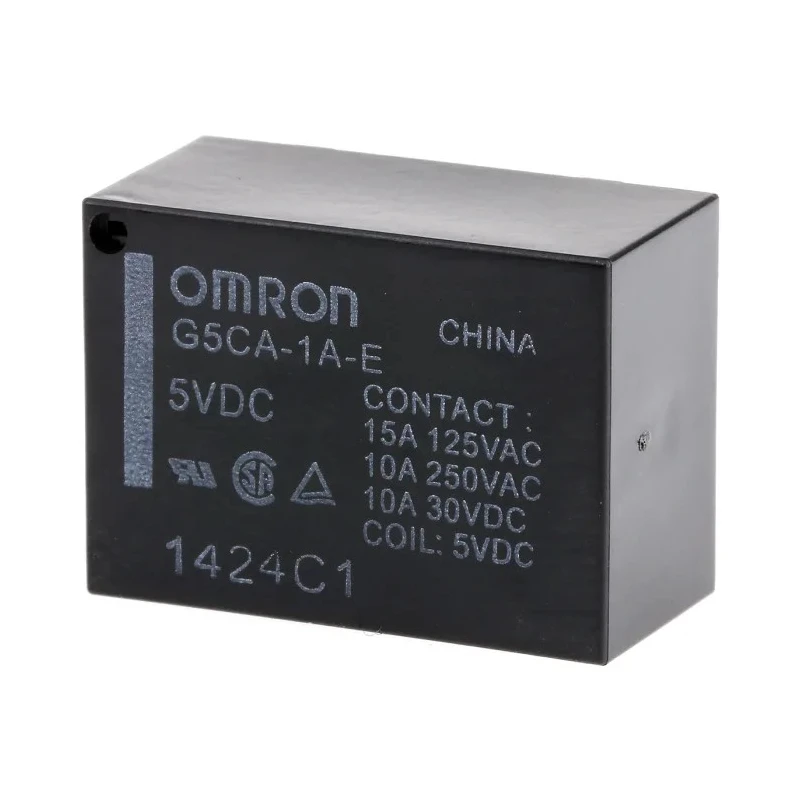

Omron PCB Power Relay 5V DC Coil 15A Switching Current SPST G5CA-1A-E DC5

Omron G5CA-1A-E DC5 PCB Power Relay is a high-performance power relay designed for switching in electronic and industrial applications. This relay features a 5V DC coil voltage with a 15A switching current, ideal for efficiently controlling power in PCB-mounted circuits. Its SPST contact configuration provides a reliable single-pole single-throw switching mechanism.

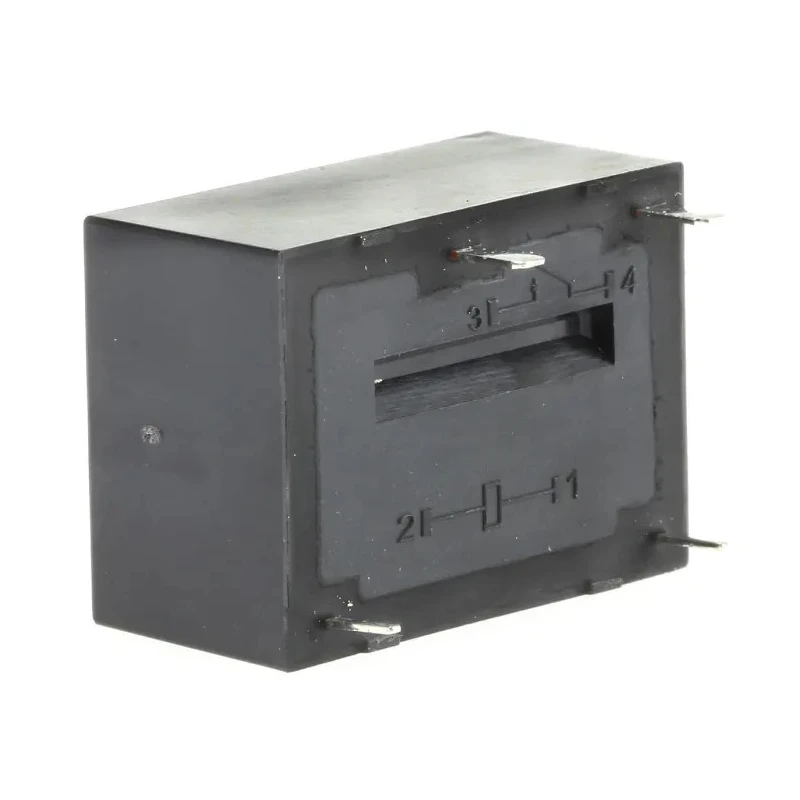

With compact dimensions measuring 22mm in length, 16mm in width, and 11mm in height, the relay is sub-miniature and fits easily on printed circuit boards. It includes through-hole terminals facilitating secure soldered connections.

The coil resistance of 2.9kΩ and coil power consumption of just 200mW contribute to energy-efficient operation. The relay supports switching of AC voltages up to 240V and DC voltages up to 60V, making it versatile for various electrical and automation control tasks.

Built with a silver alloy contact material, it ensures excellent conductivity and durability under operating conditions. This relay performs reliably within an ambient temperature range from -25°C to 70°C, suitable for industrial and commercial environments.

Environmentally compliant, the G5CA series adheres to RoHS standards, making it a responsible choice for electronics manufacturing. Operates using a 5V DC coil voltage for efficient control. Supports switching currents up to 15 amperes for power handling.

SPST contact arrangement for straightforward switching tasks. Compact sub-miniature form factor for PCB mounting applications. Silver alloy contacts ensure reliable and long-lasting performance. Designed for through-hole PCB mounting for robust mechanical stability.

Suitable operating temperature range from -25°C to 70°C for varied environments. Switches both AC and DC voltages up to rated limits. Low coil power consumption of 200mW for energy-saving benefits. RoHS certified adhering to environmental compliance requirements.

This Omron PCB Power Relay is an excellent choice for industrial automation, electrical control panels, household appliances, and other applications requiring dependable power switching at moderate voltages and currents. It combines compact size, robust construction, and efficient operation to deliver reliable relay performance for professional use.
