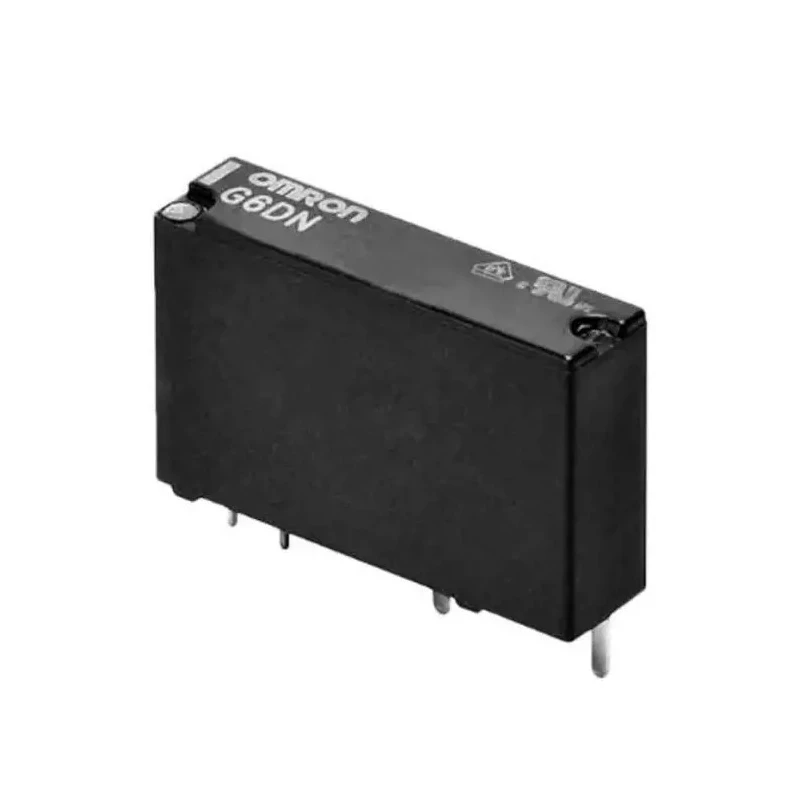

Omron Power Relay 24V DC Coil 5A Switching Current SPST PCB Mount G6DN-1A DC24
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Omron |
| Height | 12.5mm |
| Length | 20mm |
| Model | G6DN-1A DC24 |
| Width | 5.1mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G6DN |
| Maximum Operating Temperature | 90°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 5A |
| Terminal type | PCB Pin |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 5.2kΩ |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 125V dc |
| Switching AC Voltage | 277V ac |
| Coil Power | 110mW |
Key Features
- Operates with a coil voltage of 24V DC ensuring low power consumption of 110 mW.
- Features a SPST contact configuration suitable for single-pole single-throw switching.
- Supports switching currents up to 5A for reliable power relay operations.
- Designed to operate within a temperature range of -40°C to 90°C for harsh environments.
- Constructed with silver alloy contacts for superior conductivity and durability.
- Compact dimensions of 20mm length, 12.5mm height, and 5.1mm width for PCB mounting.
- Coil resistance is 5.2 kΩ, enabling stable coil current control.
- Capable of switching DC voltages up to 125V and AC voltages up to 277V.
Product Description
Omron G6DN-1A DC24 Power Relay is a highly reliable SPST power relay designed for PCB mounting applications requiring a 24V DC coil and 5A switching capacity. This relay features silver alloy contacts and achieves low power consumption at 110 mW, making it ideal for use in electronic control systems including programmable controllers, temperature controllers, building automation setups, and other output control systems.
Its compact form factor with precise dimensions of 20mm length, 12.5mm height, and 5.1mm width allows easy integration on PCBs, while the coil resistance of 5.2 kΩ ensures consistent electrical performance. Operating in a wide temperature range from -40°C to +90°C and capable of withstanding switching voltages up to 125V DC and 277V AC, the G6DN-1A DC24 maintains durability and operational stability under demanding conditions. The relay’s contact resistance is a low 100 mΩ, which guarantees efficient current flow and contact longevity.
This product complies with RoHS directives, ensuring environmentally safe manufacturing. It is made in Japan, reflecting high-quality craftsmanship. Operates at 24V DC coil voltage with low power consumption of 110 mW. SPST contact configuration suitable for single-pole single-throw switching.
Switching current rated at 5A for reliable circuit control. Wide operating temperature range from -40°C to 90°C. Silver alloy contact material providing durability and conductivity. Compact size measuring 20mm x 12.5mm x 5.1mm for PCB mounting.
Coil resistance of 5.2 kΩ ensures stable coil current. Rated switching voltages: 125V DC and 277V AC. Low contact resistance of 100 mΩ for efficient operation. RoHS compliant and manufactured in Japan assuring quality.
This Omron Power Relay is perfect for industrial, manufacturing, and automation applications where precise and efficient switching is critical. Browse our extensive selection of relays and electrical components at EnvMart for all your control system needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this power relay is 24V DC.
It can handle a maximum switching current of 5A.
The dimensions of this relay are 20mm in length, 12.5mm in height, and 5.1mm in width.
This model features an SPST (Single-Pole Single-Throw) contact configuration.
The relay operates within a temperature range of -40°C to 90°C.
The coil resistance is 5.2 kΩ, which ensures stable coil current control.
The contacts are constructed from silver alloy, providing good conductivity and durability.
It can switch DC voltages up to 125V and AC voltages up to 277V.
Yes, this power relay complies with RoHS directives, ensuring environmentally safe manufacturing.
This relay is designed for PCB (Printed Circuit Board) mounting.
The coil power consumption is 110 mW, ensuring low power usage.
The contact resistance is low at 100 mΩ, which facilitates efficient current flow.
