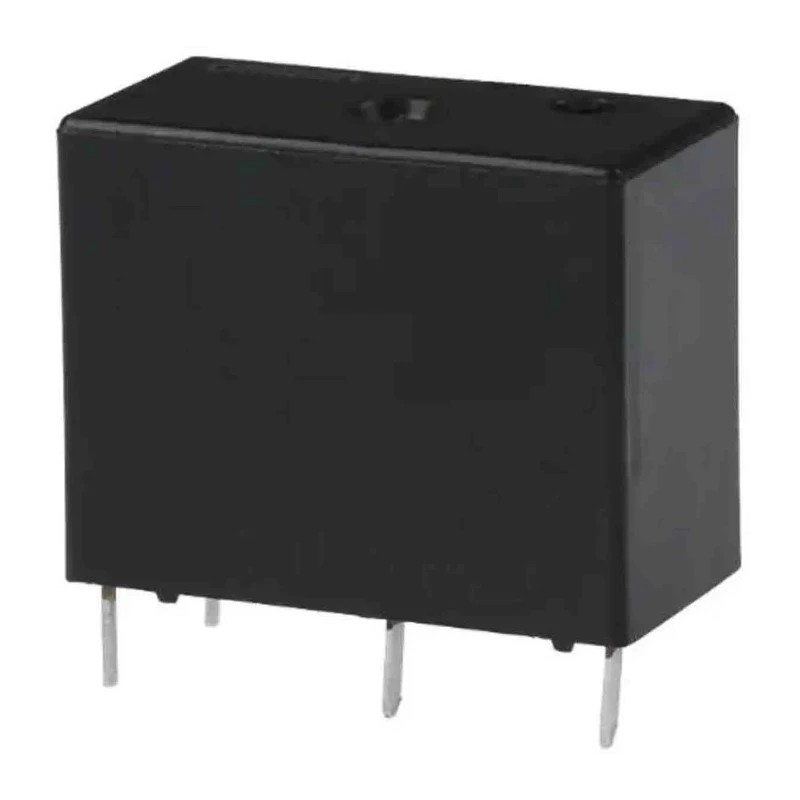

Omron PCB Power Relay 12V dc Coil 10A Switching Current SPST G5Q-1A4 DC12 (TY)
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Height | 18.9mm |
| Length | 20mm |
| Model | G5Q-1A4 DC12 (TY) |
| Width | 10mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G5Q |
| Maximum Operating Temperature | 105°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 10A |
| Terminal type | PCB Pin |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 720Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 277V ac |
| Coil Power | 200mW |
Key Features
- This relay has a SPST contact configuration suitable for switching applications.
- It offers a compact design with dimensions of 20mm length, 18.9mm height, and 10mm width.
- The relay is suitable for PCB mounting with PCB pin terminals for easy integration.
- Operating temperature ranges from -40°C to 105°C, supporting a wide range of environments.
- The coil resistance is 720Ω with a coil power consumption of 200mW.
- Supports switching AC voltage up to 277V and DC voltage up to 30V.
- Contact material is high-quality silver alloy ensuring reliable conductivity.
- Contact resistance is low at 100mΩ for efficient switching performance.
Product Description
Omron G5Q-1A4 DC12 (TY) is a PCB Power Relay designed for electrical, automation, and control equipment applications. It features a 12V dc coil and supports a 10A switching current with a Single Pole Single Throw (SPST) contact configuration, making it ideal for output control circuits.
The relay’s compact form factor, measuring 20mm in length, 18.9mm in height, and 10mm in width, allows it to be easily integrated onto printed circuit boards using its PCB pin mounting type. It guarantees reliable operations across a broad operating temperature range from -40°C to 105°C, suitable for various industrial and commercial environments.
The coil resistance is 720Ω with a coil power consumption of 200mW, ensuring efficient power usage. This relay supports switching of AC voltages up to 277V and DC voltages up to 30V, catering to diverse switching requirements.
High-quality silver alloy contacts provide excellent conductivity and durability, with a low contact resistance of 100mΩ for optimized performance. Designed to meet RoHS standards, it is environmentally compliant and suitable for sustainable applications.
Typical industrial applications include automation systems, control panels, signal conditioning circuits, and power relay uses in manufacturing, water treatment, HVAC, and electrical distribution systems.
This relay has a SPST contact configuration suitable for switching applications. It offers a compact design with dimensions of 20mm length, 18.9mm height, and 10mm width. The relay is suitable for PCB mounting with PCB pin terminals for easy integration.
Operating temperature ranges from -40°C to 105°C, supporting a wide range of environments. The coil resistance is 720Ω with a coil power consumption of 200mW. Supports switching AC voltage up to 277V and DC voltage up to 30V.
Contact material is high-quality silver alloy ensuring reliable conductivity. Contact resistance is low at 100mΩ for efficient switching performance. Designed to RoHS standards for environmental compliance.
Choose Omron relays for reliable, compact, and efficient power switching solutions in your electronic and electrical projects. Explore more Power Relay products in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a switching current of 10A, making it suitable for various output control applications.
The relay has a compact design with dimensions of 20mm in length, 18.9mm in height, and 10mm in width, allowing for easy integration into PCB layouts.
It operates with a 12V dc coil and has a coil power consumption of 200mW, ensuring efficient power usage during operation.
This relay features a Single Pole Single Throw (SPST) contact configuration, suitable for a variety of switching applications.
The operating temperature range for this model is from -40°C to 105°C, allowing it to function effectively in diverse environments.
It is designed for PCB mounting and features PCB pin terminals for straightforward integration into circuit boards.
This relay can switch AC voltages up to 277V and DC voltages up to 30V, accommodating a wide range of electrical applications.
The contact material is a high-quality silver alloy, which ensures reliable conductivity and performance.
It has a low contact resistance of 100mΩ, which contributes to efficient switching performance.
Yes, this model is designed to meet RoHS standards, ensuring it is environmentally compliant.
Typical applications include automation systems, control panels, signal conditioning circuits, and various power relay uses in industrial settings.
The coil resistance is 720Ω, which is important for determining the relay's operational characteristics and efficiency.
