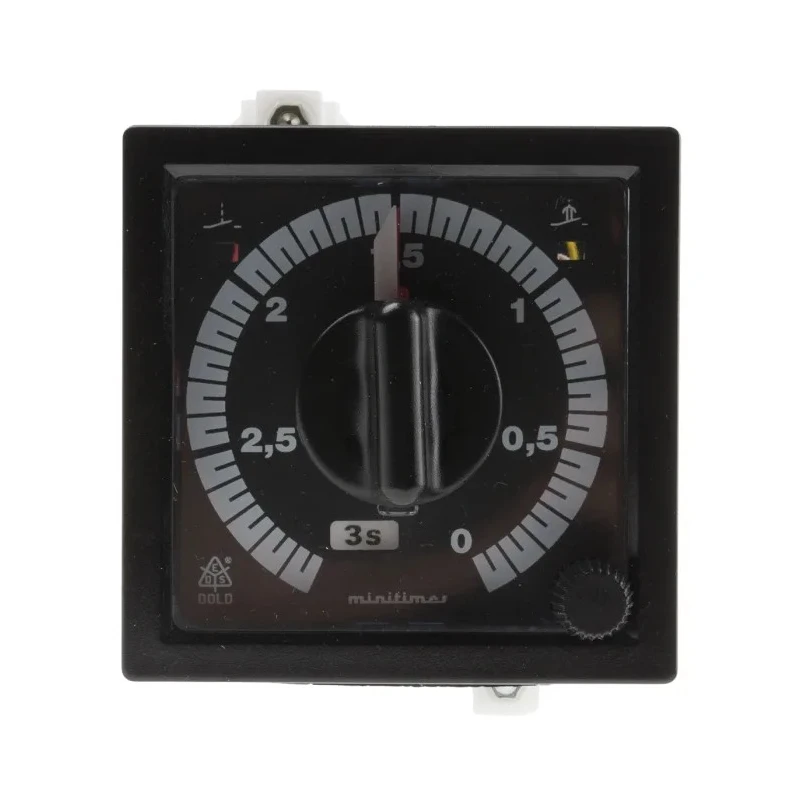

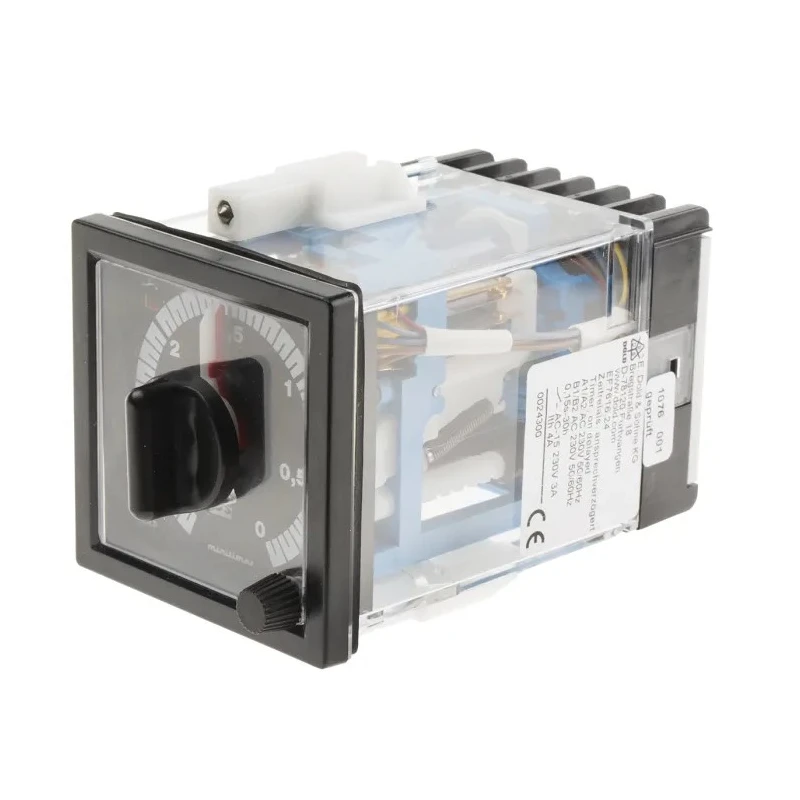

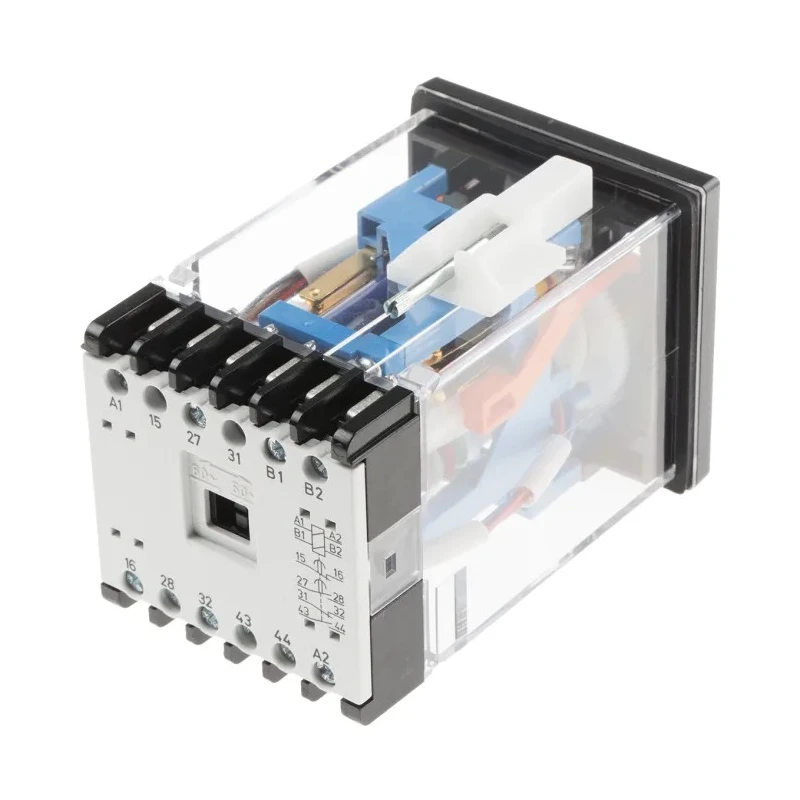

Dold EF7616 Series Panel Timer Relay, 2-Contact, 230V AC, 0.15 s to 30 h Timing Range EF7616.24 AC50/60HZ 230V 0.15S-30H

The Dold EF7616.24 AC50/60HZ 230V 0.15S-30H panel timer relay is a precision industrial timing device designed for continuous operation in demanding environments. Featuring a robust motor-driven mechanism, it provides an adjustable delay range from 0.15 seconds up to 30 hours, selected easily via two rotary switches on the front panel. This compact unit is engineered for panel mounting and incorporates a reliable 2-contact SPDT switch configuration rated for 3A compliant with 230V AC switching.

This timer relay offers repeat accuracy within ±0.5% for most ranges, ensuring dependable timing control for process automation. The IP40 rated casing protects against solid foreign objects, while the front panel is sealed up to IP65 standards to resist water ingress. Adjustment is user-friendly via a screwdriver slot, enabling precise time setting on site without the need for specialized tools.

Operating within an ambient temperature of -20°C to 55°C, the EF7616 is rugged yet compact, measuring 128mm in height, 72mm in width, and 72mm in length. Its CE certification along with CSA, GL, and TÜV approvals confirm compliance with international safety and electromagnetic compatibility standards.

Applications of this timer relay span various sectors including textiles, chemical processing, mining operations, industrial process automation, irrigation controls, and food and beverage handling. The unit's instantaneous contact and no-voltage safe design enhance operational safety and reliability.

Compact panel mounting for easy integration into control systems. Time delay adjustable from 0.15 seconds to 30 hours to accommodate diverse timing requirements. SPDT switch providing a single pole double throw contact setup rated at 3A for load switching.

Front panel screwdriver slot facilitates quick and precise timing adjustments. Wide operating temperature range ensures consistent performance in harsh industrial conditions. Robust IP40 protective housing with an IP65 rated front panel for water resistance.

Certifications include CE, CSA, GL, TÜV, and compliance with IEC/EN standards. Ideal for use in industrial automation, manufacturing, process control, chemical, and agricultural applications. Features a time-lapse display, switching position display, and instantaneous contact for enhanced usability.

Motor-driven offset double ring end function supports accurate and reliable timing control.
