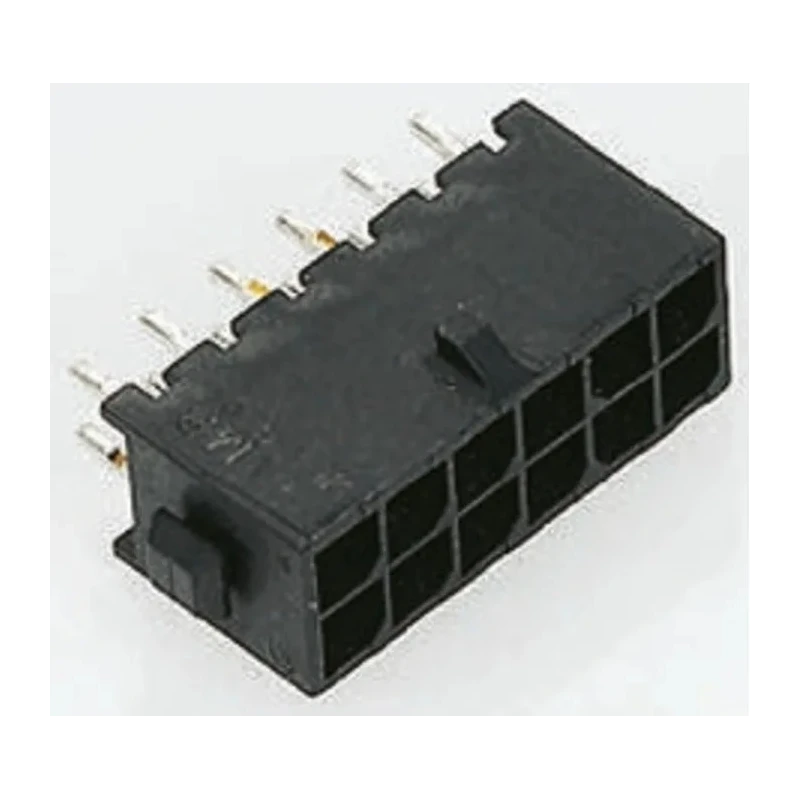

TE Connectivity Micro MATE-N-LOK Series Straight Through Hole PCB Header 20 Contact 3 mm Pitch 2 Row Shrouded 5A 5-794630-0
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 250V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 5A |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | Micro MATE-N-LOK |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 3mm |
| Contact Plating | Tin |
| Number of Contacts | 20 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.56mm |
Key Features
- Rated for a maximum current of 5 amperes and voltage of 250 volts.
- Constructed with nylon housing and brass contacts plated with tin for durability.
- Features a straight orientation with shrouded design to prevent mis-mating.
- Mount type is through hole with solder termination and a tail pin length of 3.56 mm.
- Designed to operate in temperatures ranging from -40°C to 105°C.
- Includes polarization and positive lock tabs for secure connections.
- Suitable for various industrial and consumer electronic applications.
- Compatible with IR reflow soldering processes for manufacturing flexibility.
Product Description
TE Connectivity 5-794630-0 Micro MATE-N-LOK Series PCB Header is a high-reliability wire-to-board connector system featuring 20 contacts arranged in 2 rows with a 3 mm pitch. It is designed for current ratings up to 5A and voltage ratings of 250V, making it suitable for demanding electronic applications.
The housing is made of durable nylon material and features a shrouded design to prevent connector mismating. Its brass contacts are plated with tin, ensuring excellent conductivity and corrosion resistance. The component mounts through the PCB with solder termination and a 3.56 mm tail pin length for secure soldering.
Operating temperature spans from -40°C to 105°C, suitable for a wide range of environments. The connector also includes polarization features and positive locking tabs that guarantee secure and stable connections with mating cables.
This PCB header is widely used across various sectors including household appliances, lighting systems, factory automation, data storage, and security systems. The low-profile design makes it especially ideal for lighting industry applications such as LED lights.
TE Connectivity's Micro MATE-N-LOK 3 mm connector system supports wire-to-wire, wire-to-board, and wire-to-panel applications. The headers are available in vertical and right-angle configurations and are compatible with IR reflow soldering processes, enhancing manufacturing flexibility.
Rated for 5A current and 250V voltage applications. Nylon housing ensures high-quality insulation and durability. Brass contacts with tin plating provide reliable electrical performance. Shrouded and polarized design prevents mis-connections.
Through-hole mounting with solder termination for stable PCB mounting. Operating temperature range from -40°C to 105°C suits harsh industrial environments. Positive locking tabs secure cable connectors firmly. Ideal for industrial, consumer electronics, lighting, automation, and security systems.
Explore the extensive range of PCB connectors and headers by TE Connectivity on EnvMart to find compatible components for your electronic design projects.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It is rated for a maximum current of 5 amperes and a voltage of 250 volts.
The housing is made of nylon, while the contacts are brass plated with tin to ensure conductivity and corrosion resistance.
This model features a 3 mm pitch with 20 contacts arranged in 2 rows.
It uses a through-hole mounting method with solder termination for secure installation on a PCB.
It operates within a temperature range of -40°C to 105°C, making it suitable for various environments.
Yes, it has a shrouded design along with polarization and positive locking tabs to prevent mis-connections and ensure secure mating.
Yes, it is compatible with IR reflow soldering processes, allowing for flexible manufacturing options.
It is suitable for various applications including industrial, consumer electronics, lighting systems, factory automation, and security systems.
The tail pin length is 3.56 mm, providing stability during soldering.
This model is part of the Micro MATE-N-LOK series, designed for wire-to-board connections.
This header has 2 rows of contacts.
The contacts in this model are male.
