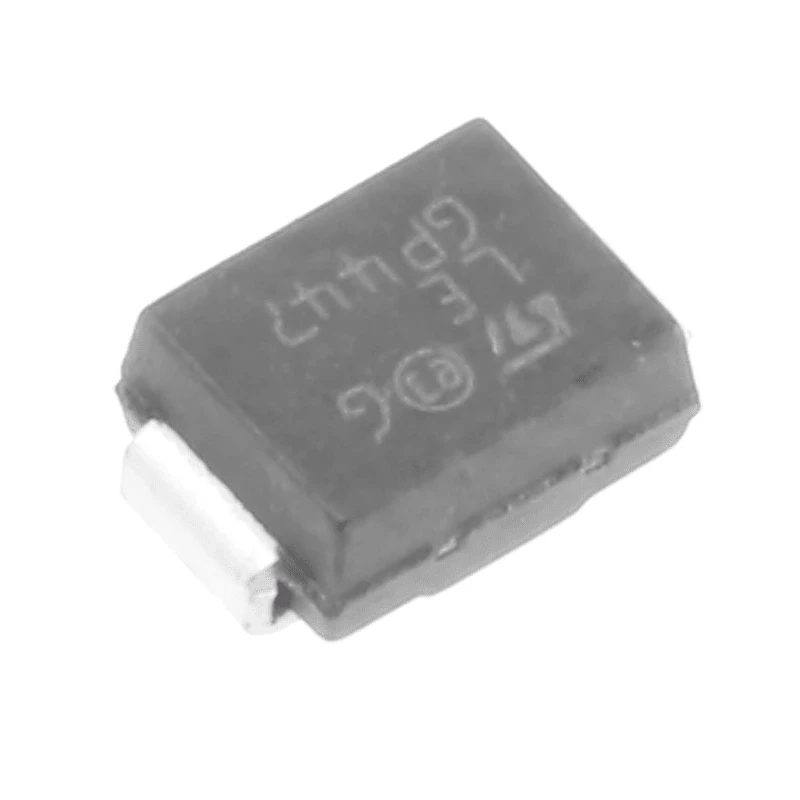

STMicroelectronics 1-Element Bi-Directional TVS Diode 2-Pin DO-214 600W SM6T6V8CA

STMicroelectronics SM6T6V8CA is a 1-element Bi-Directional Transient Voltage Suppression (TVS) diode designed for protecting sensitive electronic circuits from transient overvoltage damage. Featuring a robust peak pulse power dissipation of 600W, this diode is packaged in a compact 2-pin DO-214 surface mount format suitable for automated PCB assembly.

Its bi-directional diode configuration enables it to clamp voltage spikes in both positive and negative directions, providing enhanced protection for AC and DC voltage lines. With a minimum breakdown voltage of 6.45V and a maximum reverse stand-off voltage of 5.8V, the device activates quickly to suppress transient voltages effectively.

This TVS Diode withstands a maximum peak pulse current of 298A and features a clamping voltage of 13.4V, ensuring that transient surges are limited within safe thresholds to protect downstream circuitry. The device is qualified for operation between -55°C and 150°C, making it suitable for demanding industrial, automotive, and consumer electronic applications.

The small footprint with dimensions 4.6mm length, 3.95mm width, and 2.45mm height allows integration into space-constrained assemblies. Its surface mount design facilitates automated production processes, enhancing manufacturing efficiency.

Typical use cases include overvoltage protection of power supplies, data lines, telecommunications equipment, automotive electronics, and industrial control systems. The SM6T6V8CA conforms to quality and reliability standards expected in transient voltage suppression technologies.

Single diode configuration for effective transient voltage suppression. Bi-directional design protects circuits from voltage spikes in both polarity directions. Peak pulse power dissipation of 600 watts suitable for high energy transient events.

Minimum breakdown voltage of 6.45 volts ensures effective clamp threshold. Package dimensions 4.6mm length, 3.95mm width, and 2.45mm height for compact PCB integration. Maximum operating temperature of 150°C allows reliable performance in harsh environments.

Surface mount mount type for automated assembly processes. Clamping voltage of 13.4 volts for rapid voltage spike suppression. Test current rating of 10mA for qualification under standard conditions. Maximum peak pulse current of 298 amps protects against high surge currents.
