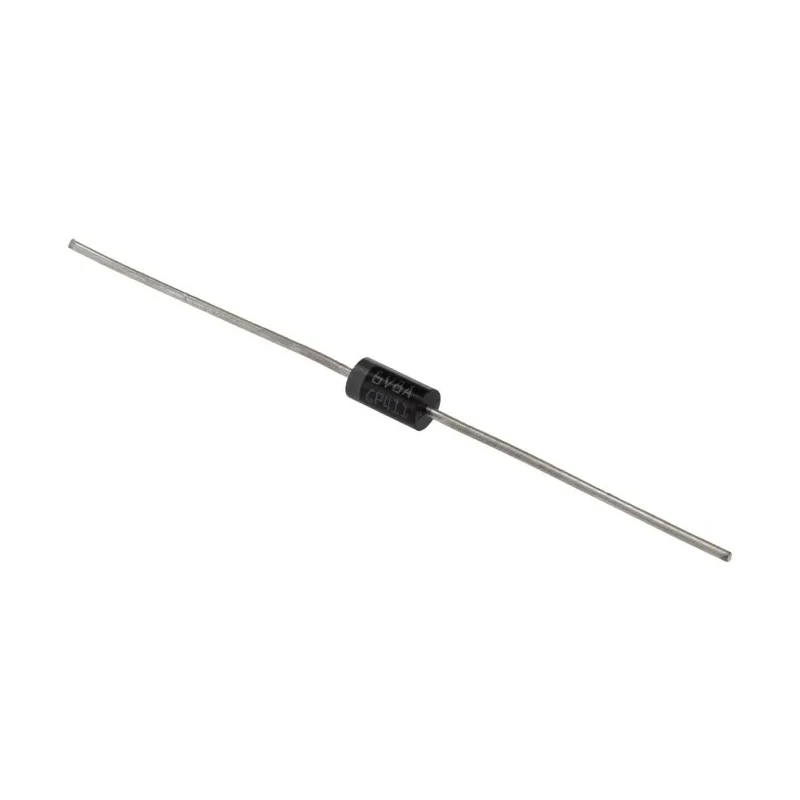

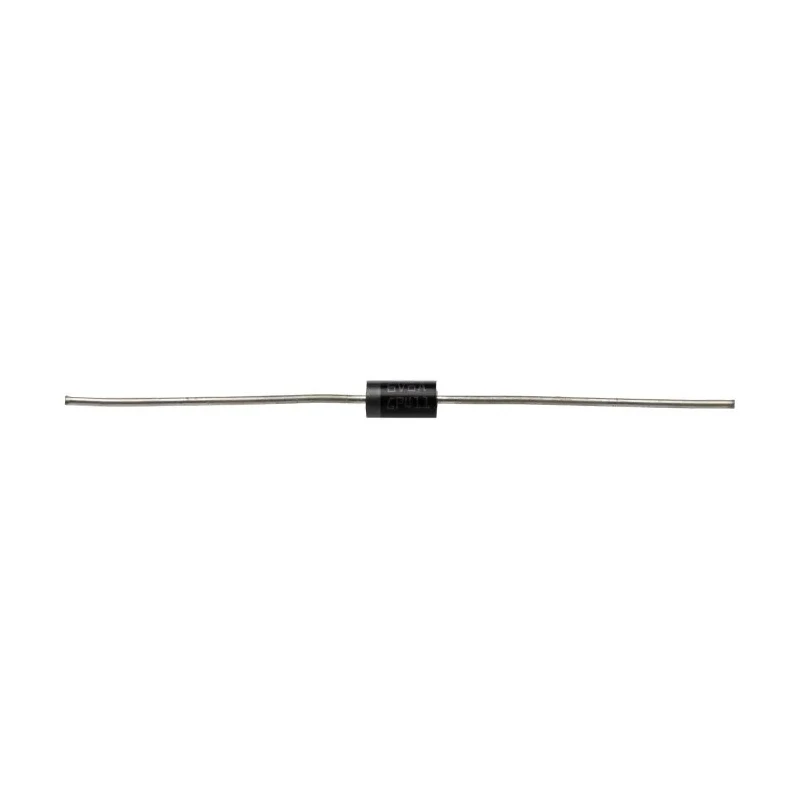

STMicroelectronics 1-Element Uni-Directional TVS Diode 600 W, 2-Pin DO-15 P6KE6V8A
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 3.53mm |
| Brand | STMicroelectronics |
| Height | 3.53mm |
| Length | 6.75mm |
| Model | P6KE6V8A |
| Width | 3.53mm |
| Mount Type | Through Hole |
| Series | P6KE |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-15 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 13.4V |
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 6.45V |
| Maximum Reverse Stand-off Voltage Vwm | 5.8V |
| Peak Pulse Power Dissipation Pppm | 600W |
| Test Current It | 10mA |
| Maximum Peak Pulse Current Ippm | 298A |
| Maximum Reverse Leakage Current | 1mA |
Key Features
- Single diode configuration ensuring efficient transient voltage suppression.
- Uni-directional type designed for polarity-sensitive protection.
- Minimum breakdown voltage of 6.45 V suitable for low voltage applications.
- Clamping voltage rated at 13.4 V for effective voltage spike absorption.
- Operating temperature range from -65°C to 175°C for harsh environments.
- Maximum peak pulse current of 298 A to handle high transient surges.
- Through-hole mount type for reliable PCB assembly.
- Compact DO-15 package with dimensions 6.75 mm length and 3.53 mm diameter.
Product Description
STMicroelectronics P6KE6V8A is a single-element uni-directional Transient Voltage Suppressor (TVS) diode designed for protecting sensitive electronic circuits from voltage spikes and transient surges. It supports a peak pulse power dissipation of 600 W, making it suitable for robust surge protection applications in industrial, electronic components, and power connector domains.
This TVS Diode operates with a minimum breakdown voltage of 6.45 V and clamps at 13.4 V to efficiently absorb sudden voltage spikes. It is housed in a DO-15 package with a through-hole mount type, featuring a compact form factor measuring 6.75 mm in length and 3.53 mm in diameter.
The device supports a wide operating temperature range from -65°C to 175°C, ensuring stable performance across harsh environments. Its maximum peak pulse current rating of 298 A guarantees effective handling of transient surges. The low maximum reverse leakage current of 1 mA helps maintain energy efficiency.
This diode is ideal for use in electrical and electronic assemblies requiring protection against transient voltage conditions without automotive-specific standards. Typical applications include industrial electronics, power supplies, communication equipment, and general purpose surge protection.
Single diode configuration ensuring efficient transient voltage suppression. Uni-directional type designed for polarity-sensitive protection. Minimum breakdown voltage: 6.45 V. Peak pulse power dissipation: 600 W. Operating temperature range: -65°C to 175°C.
Maximum peak pulse current: 298 A. Through-hole mount type DO-15 package. Compact dimensions: 6.75 mm length, 3.53 mm diameter. Maximum reverse leakage current: 1 mA. Non-automotive standard design suitable for industrial use.
Explore STMicroelectronics products and other semiconductor devices in EnvMart's Electronics & Electricals category for comprehensive solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The P6KE6V8A has a peak pulse power dissipation of 600 W, making it suitable for robust surge protection applications.
The minimum breakdown voltage of this model is 6.45 V, which is suitable for low voltage applications.
The clamping voltage is rated at 13.4 V, which allows for effective absorption of voltage spikes.
This diode can handle a maximum peak pulse current of 298 A, ensuring it can manage high transient surges effectively.
The DO-15 package has a length of 6.75 mm and a diameter of 3.53 mm, providing a compact form factor for installation.
It operates within a temperature range of -65°C to 175°C, making it suitable for harsh environments.
This model features a through-hole mount type, which is designed for reliable PCB assembly.
The P6KE6V8A has a single diode configuration, ensuring efficient transient voltage suppression.
The maximum reverse leakage current is 1 mA, which helps maintain energy efficiency during operation.
This diode is suitable for protecting sensitive electronic circuits in applications such as industrial electronics, power supplies, and communication equipment.
The P6KE6V8A is a uni-directional diode, designed specifically for polarity-sensitive protection.
The test current for this model is 10 mA, which is used during the testing of the diode's performance.
