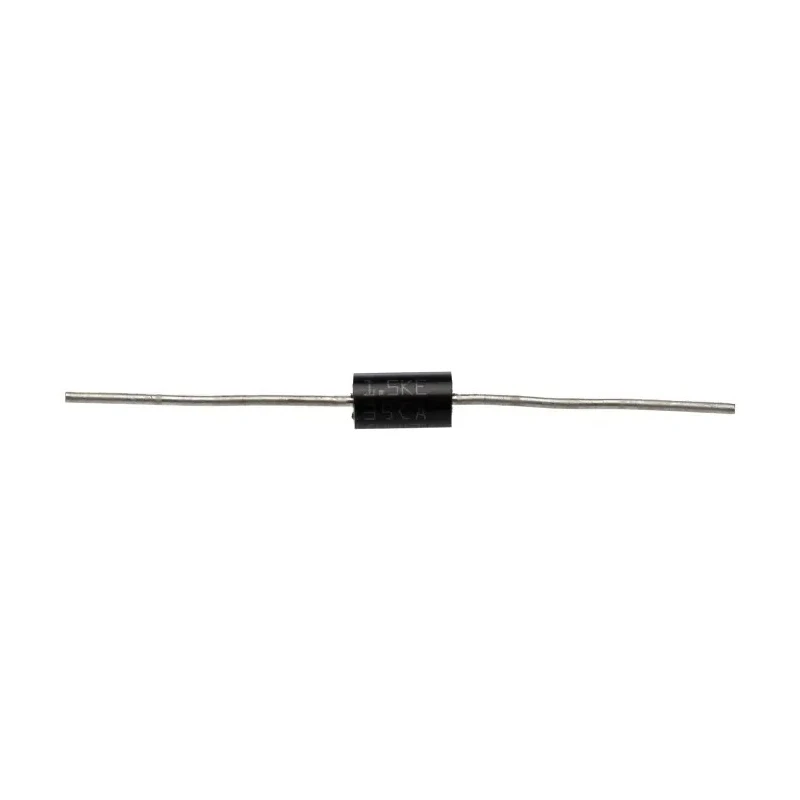

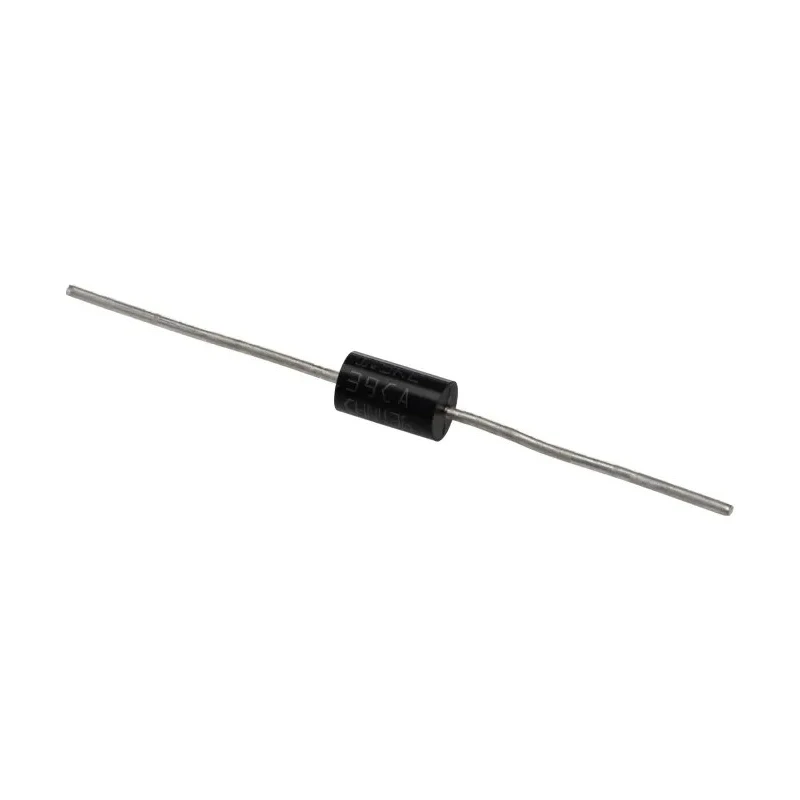

STMicroelectronics 1-Element Bi-Directional TVS Diode 1.5 kW, 37.1V Breakdown Voltage, DO-201 Package 1.5KE39CA
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 5.3mm |
| Brand | STMicroelectronics |
| Height | 5.3mm |
| Length | 9.5mm |
| Model | 1.5KE39CA |
| Width | 5.3mm |
| Mount Type | Through Hole |
| Series | 1.5KE |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-201 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 69.7V |
| Diode Configuration | Single |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 37.1V |
| Maximum Reverse Stand-off Voltage Vwm | 33.3V |
| Peak Pulse Power Dissipation Pppm | 1.5kW |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 143A |
| Maximum Reverse Leakage Current | 1μA |
Key Features
- Designed with a single diode configuration for bi-directional transient voltage suppression.
- Features a breakdown voltage of 37.1 volts with a clamping voltage of 69.7 volts.
- Supports high-energy absorption with a peak pulse current of 143 amps.
- Operates reliably within a wide temperature range from -65°C to 175°C.
- Compact through-hole mounting in a DO-201 axial package with dimensions approximately 5.3 mm diameter and 9.5 mm length.
- Low maximum reverse leakage current of 1 microampere to ensure minimal standby loss.
- Suitable for protection of electronic circuits against voltage spikes, ideal for industrial and electronic applications.
- Manufactured in China with durable quality standards.
Product Description
STMicroelectronics 1.5KE39CA is a high-performance single-element bi-directional Transient Voltage Suppressor (TVS) diode capable of dissipating peak pulse power of 1.5 kW. Packaged in a DO-201 axial through-hole form factor, it provides reliable clamp voltage performance and protection against voltage transients in sensitive electronic circuits.
This device offers a minimum breakdown voltage of 37.1 volts and a maximum reverse stand-off voltage of 33.3 volts, ensuring strong suppression of voltage spikes up to 69.7 volts clamping voltage. It safely conducts peak pulse currents up to 143 amps without damage, enabling effective protection against lightning surges and other transient events.
Designed for harsh industrial environments, the 1.5KE39CA operates within a wide temperature range from -65°C to 175°C. The maximum reverse leakage current is minimal at 1 microampere, contributing to energy efficiency and device longevity.
Its robust DO-201 package measures approximately 5.3 mm in diameter, width, and height, with a length of 9.5 mm, making it suitable for through-hole PCB applications in electronic and electrical equipment.
Single diode configuration and bi-directional operation for comprehensive transient protection. Peak pulse power dissipation rating of 1.5 kW for high energy absorption. Wide operating temperature range from -65°C to 175°C for reliability.
Compact axial DO-201 package enables easy integration in various electronic assemblies. Low leakage current reduces power loss and heat generation in circuits.
This TVS Diode is ideal for use in a broad spectrum of industrial, electronic, and electrical applications where protection from voltage transients is critical, including power supplies, communication devices, and automotive electronics. STMicroelectronics ensures product quality and reliability with consistent manufacturing standards.
Explore our extensive range of semiconductor and discrete components at EnvMart for your industrial and electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The breakdown voltage of the 1.5KE39CA is 37.1 volts.
The clamping voltage for this diode is 69.7 volts.
This TVS diode has a peak pulse power dissipation rating of 1.5 kW.
The maximum reverse leakage current for the 1.5KE39CA is 1 microampere.
The DO-201 package has a diameter of approximately 5.3 mm and a length of 9.5 mm.
This model operates reliably within a temperature range from -65°C to 175°C.
The 1.5KE39CA features a single element per chip configuration.
It supports through-hole mounting in its DO-201 package.
The maximum peak pulse current for this diode is 143 amps.
This TVS diode is suitable for protecting electronic circuits against voltage spikes in industrial and electronic applications.
The maximum reverse stand-off voltage for the 1.5KE39CA is 33.3 volts.
The country of origin for the 1.5KE39CA is China.
