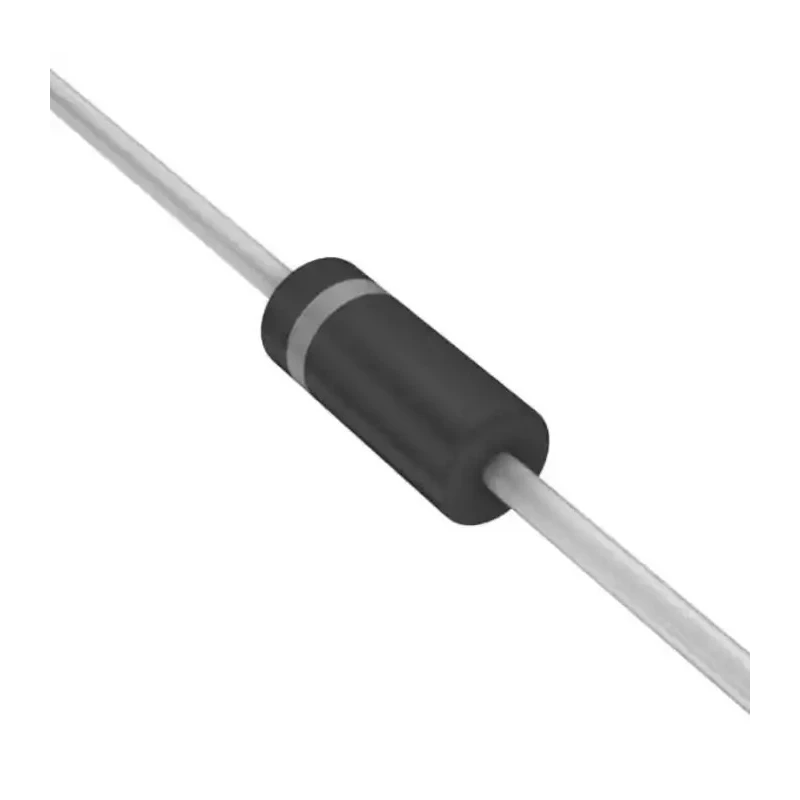

onsemi Zener Diode 11 V 5 W Single 5% Through Hole 2-Pin DO-15 1N5348BG

onsemi 1N5348BG is a high-quality Zener Diode designed for voltage regulation with a nominal Zener voltage of 11 V and power rating of 5 W. This single-element diode features a through-hole mount in a DO-15 axial lead package, suitable for various industrial and electronic applications.

The diode is constructed with a void-free, transfer-molded thermo-setting plastic case, offering excellent corrosion resistance and robust environmental protection. Its leads are readily solderable, making it ideal for through-hole PCB assembly in electronic and semiconductor manufacturing.

It operates reliably in extreme temperature environments ranging from -65°C to 200°C and delivers stable performance with a maximum Zener impedance of 2.5 ohms. The device has a maximum reverse leakage current of 8 microamperes and undergoes testing at a test current of 125 mA to ensure consistent voltage regulation.

The diode is lightweight at approximately 0.7 gram and features polarity marking via a color band indicating the cathode. It supports any mounting position without functional degradation, enhancing suitability for diverse industrial electronics, power supply stabilization, and voltage reference applications.

Applications include industrial semiconductor voltage regulation circuits, laboratory power supplies, and electronic component assemblies requiring precise voltage clamping and regulation.

Designed for stable voltage regulation with nominal 11 V Zener voltage. Power dissipation capacity is rated at 5 watts for robust performance. Through-hole mounting with DO-15 package type for ease of assembly. Operating temperature range extends from -65°C to 200°C for versatility.

Featuring an axial-lead plastic package providing environmental protection. Maximum Zener impedance is 2.5 ohms ensuring precise voltage regulation. Test current set at 125 mA for optimal diode performance evaluation. Maximum reverse leakage current is limited to 8 microamps for efficiency.

Cathode polarity marked by color band to aid correct circuit installation. Lightweight design at approximately 0.7 gram facilitating compact electronics.

This product is listed under the Zener Diode category in semiconductor electronic components, ideal for professionals seeking reliable voltage regulation devices. Browse EnvMart's comprehensive Electronics & Electricals section for compatible components and advanced semiconductor parts.
