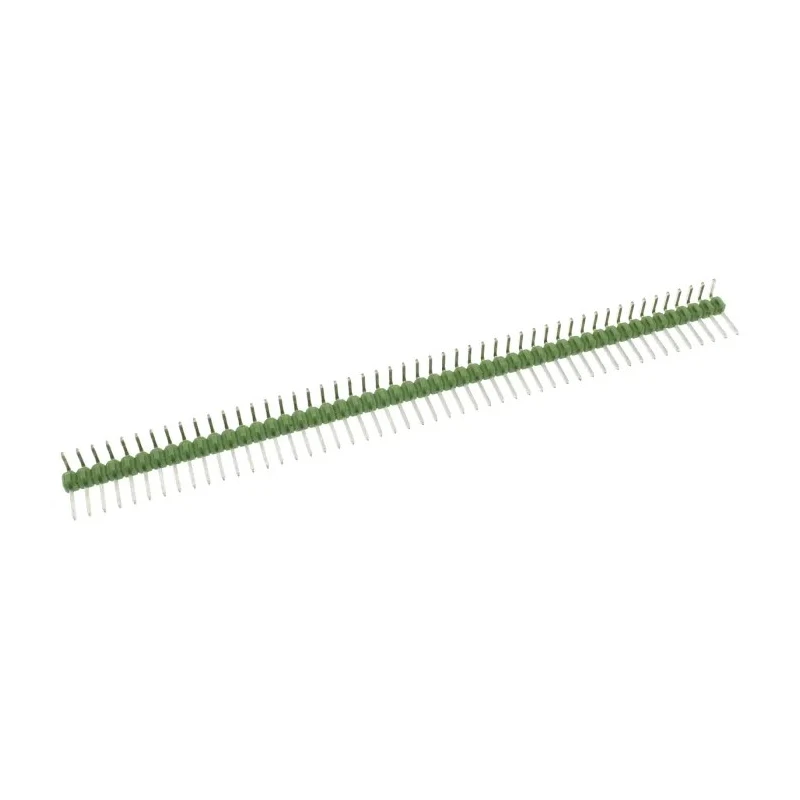

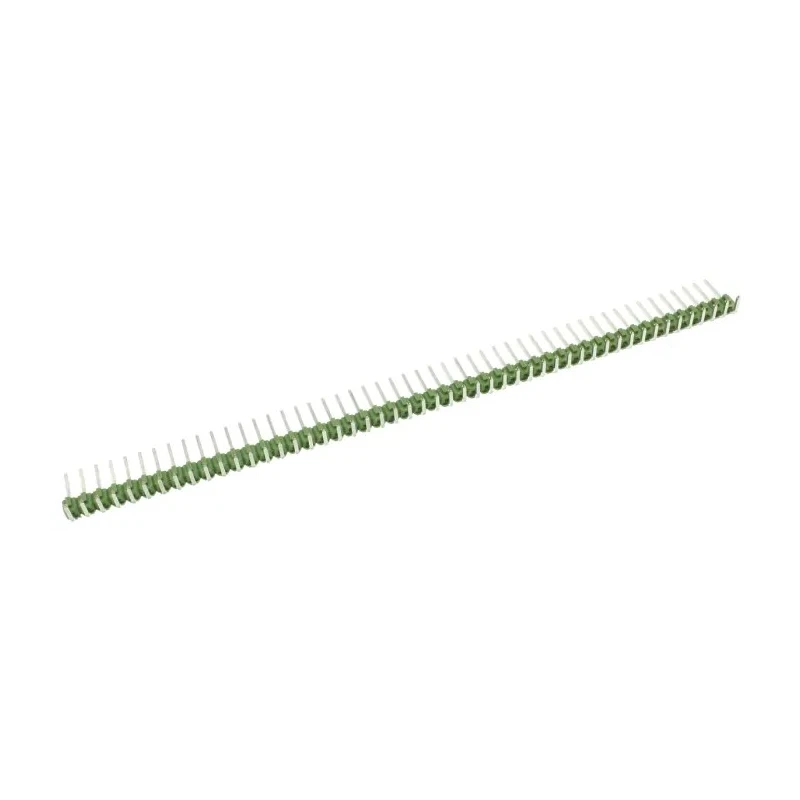

TE Connectivity AMPMODU MOD II Series Right Angle Through Hole Pin Header, 50 Contacts, 2.54 mm Pitch, 1 Row 5-826947-0
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 750V |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | Polyester |
| Contact Material | Phosphor Bronze |
| Series | AMPMODU MOD II |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 50 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 3.2mm |
| Mating Pin Length | 6.7mm |
| 50 way 1 row r/a unshrouded headerBrand | TE Connectivity |
Key Features
- Features a right angle orientation suitable for board-to-board and wire-to-board connections.
- Constructed with polyester housing ensuring durability and electrical insulation.
- Employs phosphor bronze contacts plated with tin for reliable conductivity and corrosion resistance.
- Supports operating temperatures from -55°C to 105°C for versatile application environments.
- Accommodates a current rating of 3A and voltage rating of 750V.
- Includes 3.2 mm tail pin length with male contact gender and solder termination type.
- Designed for through hole mounting ensuring secure mechanical and electrical connection.
- Unshrouded configuration allows easy mating with compatible connectors or receptacles.
Product Description
TE Connectivity 5-826947-0 is a high-quality AMPMODU MOD II Series Right Angle Through Hole Pin Header with 50 contacts arranged in a single row at a 2.54 mm pitch.
This pin header is designed to provide reliable and robust connectivity solutions for electronic assemblies requiring board-to-board or wire-to-board connections. Its right angle mounting orientation facilitates space-saving configurations and flexible layout designs.
The polyester housing provides superior electrical insulation and mechanical protection, while the phosphor bronze contact material combined with tin plating ensures optimal conductivity and corrosion resistance.
Operating temperature range from -55°C to 105°C supports use in demanding industrial environments. Rated for 3A current and 750V voltage, this connector is suitable for various electronic and industrial applications.
The pin header uses a male contact gender with solder termination type and a tail pin length of 3.2 mm for reliable mounting and electrical contact. The unshrouded design allows for easy mating with corresponding connectors and offers flexibility in assembly.
Right angle orientation for versatile mounting options. 50 contacts in one row with 2.54 mm pitch ensure dense connectivity. Durable polyester housing for insulation and mechanical strength. Phosphor bronze contacts plated with tin provide reliable conductivity.
Wide operating temperature range (-55°C to 105°C) for industrial use. 3A current and 750V voltage ratings accommodate varied electrical requirements. Through hole mounting method secures the pin header firmly to PCBs. Unshrouded and male contact design facilitates easy connection.
This TE Connectivity pin header is ideally suited for electronic manufacturing, industrial controls, and instrumentation where reliable interconnectivity is critical. It supports applications across industrial, manufacturing, and electronics sectors.
Discover more high-quality connectors and electronic components from TE Connectivity and explore our extensive range of PCB Headers at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating for this pin header is 750V.
This model has a current rating of 3A.
The contacts in this pin header are arranged at a pitch of 2.54 mm.
It supports an operating temperature range from -55°C to 105°C.
This pin header features 50 contacts arranged in a single row.
It uses a solder termination type for secure connections.
The housing is constructed from polyester, providing electrical insulation and mechanical protection.
The tail pin length for this pin header is 3.2 mm.
Yes, it is designed for through hole mounting, ensuring secure mechanical and electrical connections.
This model features a male contact gender.
The contacts are made of phosphor bronze, plated with tin for reliable conductivity and corrosion resistance.
It is suitable for board-to-board and wire-to-board connections in various electronic and industrial applications.
