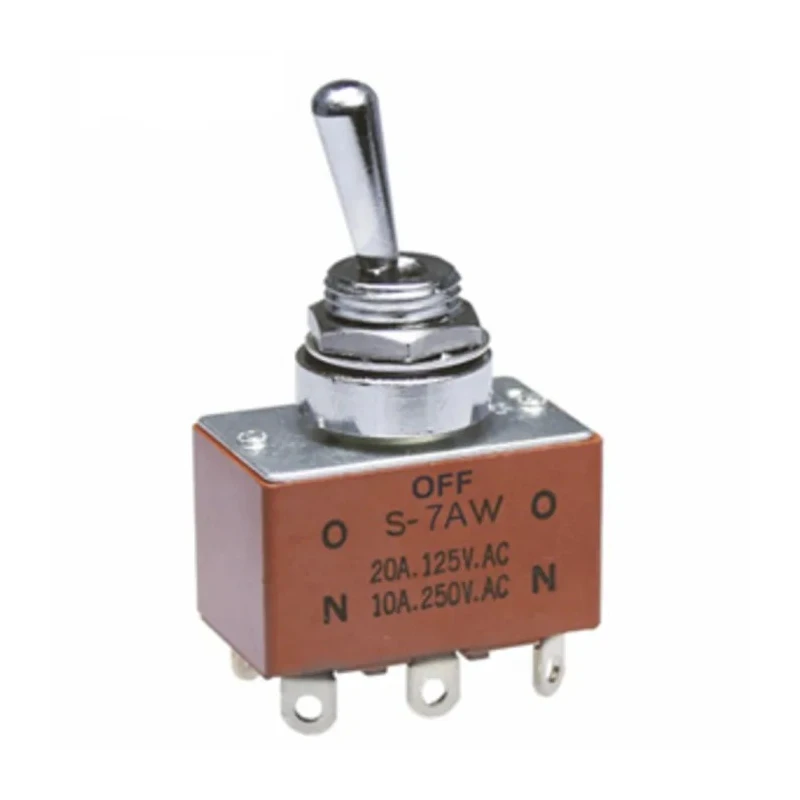

NKK Switches Toggle Switch Panel Mount On-Off-On DPDT Solder Terminal 30 V dc 125 V ac S7AW
Specifications
| Country of Origin | Philippines |
|---|---|
| Brand | NKK Switches |
| Height | 55.7mm |
| Length | 31.2mm |
| Model | S7AW |
| IP Rating | IP67 |
| Mount Type | Panel |
| Series | S |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Switch Configuration | DPDT |
| Minimum Operating Temperature | -10°C |
| Panel Cutout Size | 12.5 mm |
| Terminal type | Solder |
| Standards/Approvals | CSA, cULus, UL |
| Switch Operation | On-Off-On |
| Actuator Length | 17.5mm |
| Contact DC Voltage | 30V dc |
| Switch Contact Current | 20A |
| Contact AC Voltage | 125V ac |
Key Features
- This toggle switch features a solder terminal for reliable connection.
- IP67 rated for dust and waterproof protection.
- Operates from -10°C to 70°C in temperature.
- Certified to CSA, cULus, and UL safety standards.
- Suitable for industrial, automation, and electrical control applications.
Product Description
NKK Switches S7AW toggle switch is a high-quality panel mount switch with On-Off-On operation and Double Pole Double Throw (DPDT) contact configuration. It supports electrical ratings of 30 V dc and 125 V ac, making it suitable for a range of electrical control and automation tasks.
Equipped with solder terminals, this switch ensures secure and reliable connections, facilitating effortless integration into circuit boards or panels. Its IP67 protection rating guarantees resistance to dust and water ingress, allowing it to perform reliably even in harsh industrial environments.
The switch operates effectively over a temperature range from -10°C to 70°C, making it versatile for indoor and outdoor applications. Its compact size with a 12.5 mm panel cutout and a 17.5 mm actuator length allows for seamless panel mounting in space-constrained setups.
Built to meet CSA, cULus, and UL standards, the S7AW model assures safety and compliance in demanding applications. The medium capacity rating supports up to 20 A contact current, making it suitable for medium power switching needs.
This toggle switch features a solder terminal for reliable connection. IP67 rated for dust and waterproof protection. Operates from -10°C to 70°C in temperature. Panel cutout size: 12.5 mm and actuator length: 17.5 mm. Certified to CSA, cULus, and UL safety standards.
Contact current rating: 20 A with DPDT contact configuration. Dimensions: length 31.2 mm, height 55.7 mm. Suitable for industrial, automation, and electrical control applications.
This product is manufactured in the Philippines and designed to provide reliable switching performance in critical industrial and automation systems. Its durability and certifications make it an essential component for control panels and equipment requiring robust, versatile toggle switches.
Explore more Toggle Switches and electrical components on EnvMart for your industrial and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This toggle switch supports electrical ratings of 30 V DC and 125 V AC, with a contact current rating of 20 A.
The S7AW model has an IP67 rating, providing protection against dust and water ingress.
It operates effectively within a temperature range of -10°C to 70°C.
The required panel cutout size for installation is 12.5 mm.
This model features solder terminals for reliable connections.
The dimensions of the switch are 31.2 mm in length and 55.7 mm in height.
The actuator length of this toggle switch is 17.5 mm.
It is certified to CSA, cULus, and UL safety standards.
The contact configuration is Double Pole Double Throw (DPDT).
This switch is suitable for industrial, automation, and electrical control applications.
This toggle switch is manufactured in the Philippines.
The S7AW model operates in an On-Off-On configuration.
