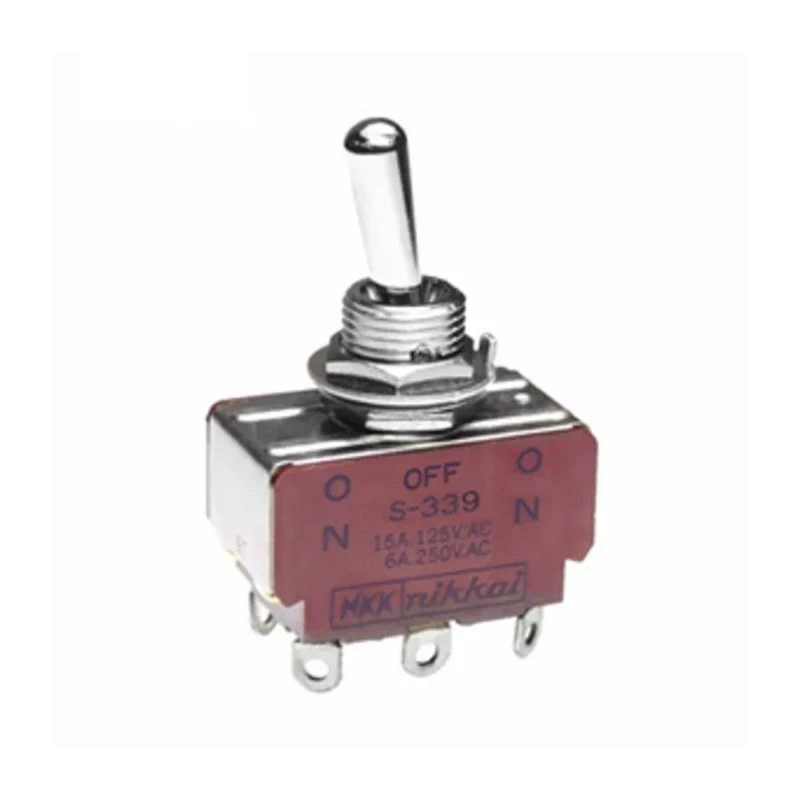

NKK Switches Toggle Switch Panel Mount On-Off-On DPDT 15A 30V DC 125V AC Chrome Plated Brass Actuator S339

NKK Switches S339 is a robust toggle switch designed for panel mounting with a double pole double throw (DPDT) On-Off-On configuration. It supports high current ratings of 15A with contact voltages of 30 V DC and 125 V AC. The chrome plated brass actuator offers durability and an attractive finish, suitable for industrial and marine environments.

The switch features a panel cutout size of 12.5 mm and a compact form factor with dimensions of 54.6 mm height, 33.2 mm length, and an actuator length of 17.5 mm, making it adaptable to a wide range of applications. Its IP67 rating ensures excellent protection against dust and water, perfect for harsh and demanding conditions.

This toggle switch operates reliably across a temperature range from -10°C to 70°C and has a mechanical life expectancy of 50,000 operations, assuring long-term durability. Its solder terminal type provides a secure electrical connection, suitable for automated assembly or manual soldering.

Compliance with UL and CSA standards confirms its safety and quality for use in industrial, automotive, marine, medical, and control system applications. The robust construction and high capacity of this switch make it an excellent choice for electrical switching needs requiring reliable on-off-on operation.

The switch features a chrome plated brass actuator for durability and aesthetic appeal. It operates efficiently within a voltage range of 30 V DC and 125 V AC. Panel cutout size is 12.5 mm, ensuring compatibility with standard panel fittings.

Rated IP67, offering high protection against dust and water ingress. Switch is non-illuminated and has a mechanical life of 50,000 operations. Solder terminal type ensures secure and durable electrical connections. Designed for operating temperatures from -10°C to 70°C.

Dimensions include an actuator length of 17.5 mm, height of 54.6 mm, and length of 33.2 mm. UL and CSA approvals guarantee compliance with key safety standards. Ideal for critical applications in automotive, industrial controls, marine, and medical equipment.

Choose NKK Switches for high-quality, reliable toggle switches that meet stringent industrial demands and ensure long-lasting performance. Browse more Toggle Switches and related components on EnvMart for your electrical and automation projects.
