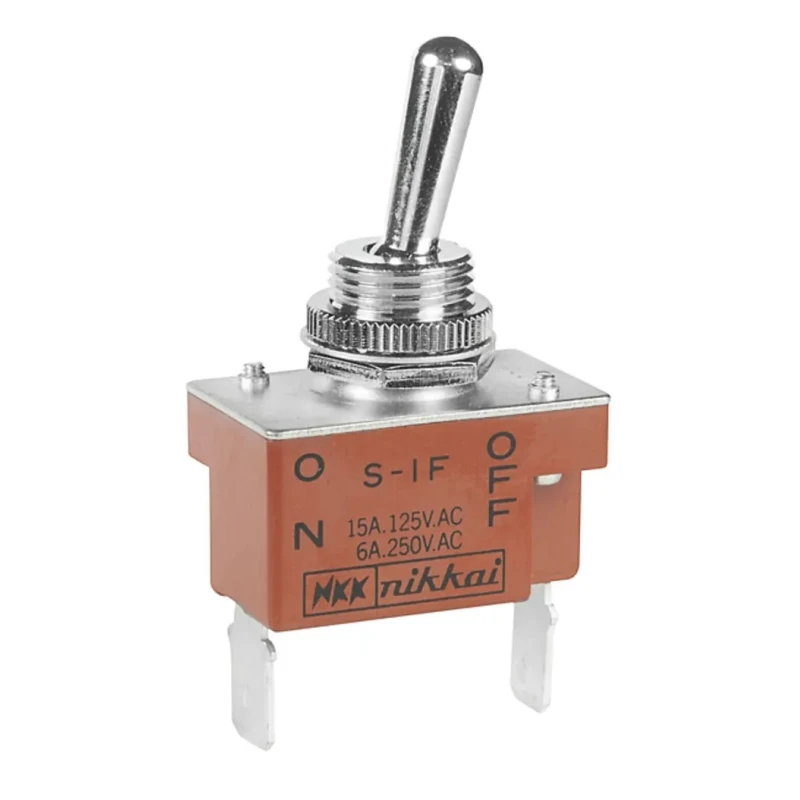

NKK Switches Toggle Switch Panel Mount On-Off SPST Tab Terminal 30V DC 125V AC S1F
Specifications
| Country of Origin | Philippines |
|---|---|
| Brand | NKK Switches |
| Height | 57.2mm |
| Length | 30mm |
| Model | S1F |
| IP Rating | IP67 |
| Mount Type | Panel |
| Series | S |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Switch Configuration | DPDT, SPDT, DPST, SPST |
| Minimum Operating Temperature | -10°C |
| Panel Cutout Size | 12.5 mm |
| Terminal type | Tab |
| Standards/Approvals | CSA, UL, cULus |
| Switch Operation | On-Off |
| Actuator Length | 17.5mm |
| Contact DC Voltage | 30V dc |
| Switch Contact Current | 20A |
| Mechanical Life | 30000Operations |
| Contact AC Voltage | 125V ac |
Key Features
- Panel mount type for secure and easy installation.
- Single Pole Single Throw (SPST) contact configuration.
- Operates at 30V DC and 125V AC maximum voltage levels.
- Tab terminals ensure secure electrical connections.
- IP67 rated waterproof enclosure suitable for harsh environments.
- Mechanical life of 30,000 operations for long-term durability.
- Operating temperature range from -10°C to 70°C.
- Switch operation is On-Off for straightforward control.
Product Description
NKK Switches S1F Toggle Switch is a durable panel mount electrical toggle switch with On-Off operation and SPST contact configuration, rated for 20A contact current. It supports DC voltage up to 30V and AC voltage up to 125V, making it suitable for a wide range of industrial, automation, and control applications requiring reliable switching performance.
Designed with tab terminals and an IP67 rating, this toggle switch provides excellent environmental protection including dust and water resistance, making it ideal for use in harsh or outdoor environments such as industrial machinery, marine equipment, and transportation systems.
The switch has a mechanical life of 30,000 operations and functions reliably within a broad temperature range from -10°C to 70°C. Its compact panel mount design requires a 12.5 mm cutout and features a 17.5 mm actuator length for convenient operator access while maintaining a small footprint on control panels.
Components meet CSA, UL, and cULus standards, ensuring high safety and quality adherence. The toggle switch series offers various configurations including DPDT, SPDT, DPST, and SPST to meet diverse application needs, with the S1F model focusing on a Single Pole Single Throw On-Off configuration.
Panel mount toggle switch with On-Off operation and SPST configuration. Rated for 20A current at 30V DC and 125V AC. IP67 waterproof rated for harsh environment protection. Tab terminal connections for secure electrical contact.
Mechanical durability with 30,000 operation life cycles. Wide operating temperature range from -10°C to 70°C. Compact design with 12.5 mm panel cutout and 17.5 mm actuator length. Standards certified: CSA, UL, cULus.
This toggle switch is ideal for use in electrical control systems across industrial, automation, marine, and transportation equipment sectors. Its robust waterproof design ensures dependable performance even in challenging environmental conditions.
Explore the NKK Switches portfolio at EnvMart for high-quality Toggle Switches engineered for critical applications where reliability and durability are essential.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum DC voltage of 30V and a maximum AC voltage of 125V.
It features a Single Pole Single Throw (SPST) contact configuration, allowing for On-Off operation.
The mechanical life of this switch is rated for 30,000 operations, ensuring long-term functionality.
It operates effectively within a temperature range of -10°C to 70°C.
It is equipped with tab terminals, which ensure secure electrical connections.
This toggle switch has an IP67 rating, providing excellent dust and water resistance for harsh environments.
The switch has a height of 57.2mm and a length of 30mm, with a panel cutout size of 12.5mm.
It meets CSA, UL, and cULus standards, ensuring adherence to safety and quality requirements.
The actuator length is 17.5mm, allowing for convenient operator access.
It is suitable for industrial, automation, marine, and transportation equipment applications.
The series includes various configurations such as DPDT, SPDT, DPST, and SPST, catering to different application needs.
It is rated for a contact current of 20A, making it suitable for various electrical control systems.
