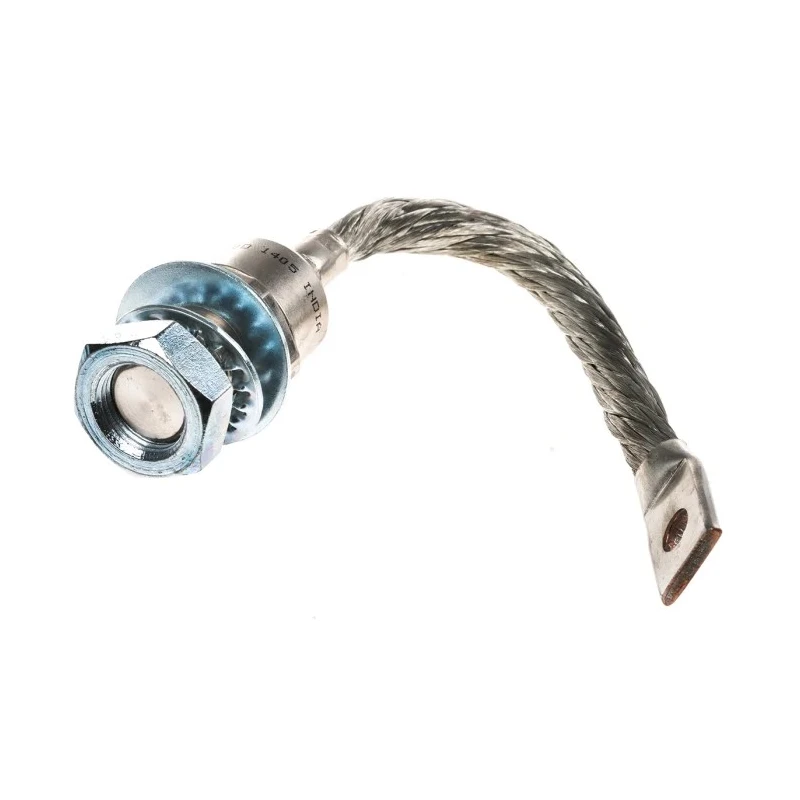

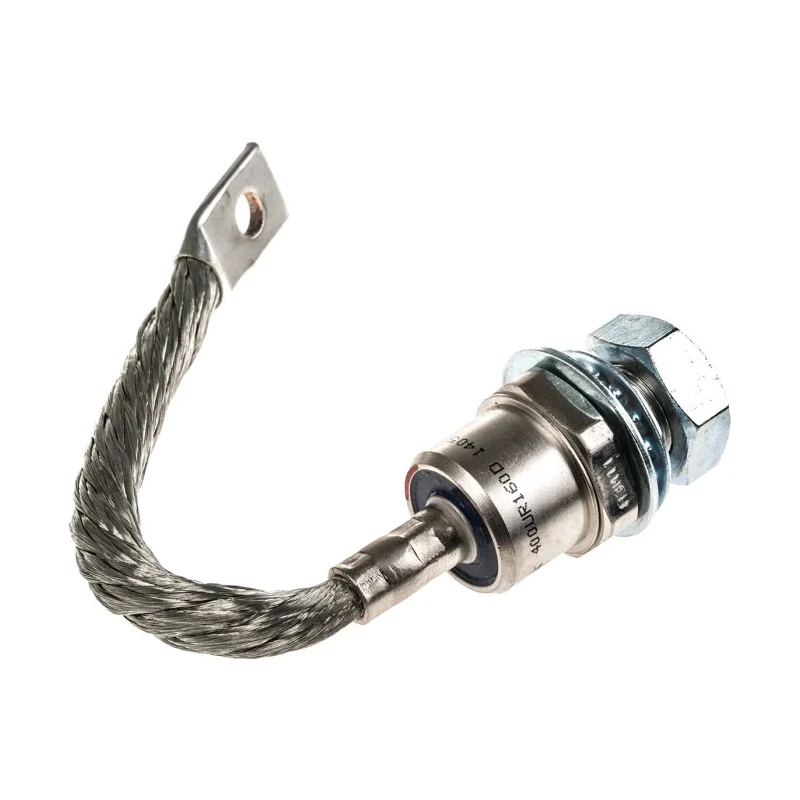

Vishay High-Efficiency Standard Recovery Switching Diode 1600 V 400 A 2-Pin DO-205AB VS-400UR160D
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 21mm |
| Brand | Vishay |
| Length | 36.96mm |
| Model | VS-400UR160D |
| Width | 32mm |
| Mount Type | Screw |
| Series | VS |
| Maximum Operating Temperature | 200°C |
| Package Type | DO-205AB |
| Minimum Operating Temperature | -40°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 400A |
| Peak Reverse Repetitive Voltage Vrrm | 1600V |
| Diode Configuration | Stud Anode |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 15mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 8.6kA |
| Maximum Forward Voltage Vf | 1.62V |
| Semikron 1600V 405A, Diode, 2-Pin E 14 SKN 130/16Brand | Semikron |
Key Features
- The diode uses a 2-pin DO-205AB package for robust screw mounting.
- It delivers a maximum forward voltage of 1.62 V ensuring efficient conduction.
- The diode supports a wide operating temperature range from -40°C to 200°C.
- Peak reverse current is low at 15 mA, reducing leakage under high voltage.
- Peak non-repetitive forward surge current rating is 8.6 kA for high transient tolerance.
- The diode configuration is stud anode, designed for industrial power rectification.
- No automotive compliance, standards or approvals are specified for this device.
Product Description
Vishay VS-400UR160D is a standard recovery switching diode designed for industrial and electronics applications requiring robust power handling with low losses. Rated for a peak reverse voltage of 1600 V and continuous forward current up to 400 A, this diode performs efficiently over a broad temperature range from -40°C to 200°C. The 2-pin DO-205AB screw mount package provides mechanical stability suitable for high-power semiconductor modules.
With a maximum forward voltage drop of 1.62 V, it offers effective current conduction while minimizing thermal losses. The low peak reverse current of 15 mA ensures reduced leakage, which is critical in power electronics. The diode's capacity to withstand up to 8.6 kA peak non-repetitive surge current adds resilience against transient overloads commonly found in industrial environments.
Physical dimensions of the device include a length of 36.96 mm, width of 32 mm, and a diameter of 21 mm, providing a compact footprint for integration into power circuits. The stud anode configuration allows for efficient thermal and electrical connection. This component is optimized for standard recovery applications where high efficiency and reliability are needed.
This diode finds applications in power rectification, industrial power supplies, and high-current switching circuits typical in manufacturing, automotive, and energy systems. It belongs to Vishay's VS series of power diodes, known for dependable semiconductor performance.
High continuous forward current capacity of 400 A. Peak reverse voltage of 1600 V for robust high-voltage blocking. Wide operating temperature range from -40°C to 200°C. Low forward voltage of 1.62 V for energy efficiency.
High surge current tolerance of 8.6 kA ensures transient robustness. 2-pin DO-205AB package for secure screw mounting. Stud anode configuration enhances electrical and thermal connectivity. Compact size optimized for power electronic systems.
Choose Vishay VS-400UR160D for high-performance power switching diode solutions. Explore more semiconductor components and power solutions on EnvMart to meet industrial and electronic design needs.
Explore more products in our Semiconductor Diodes category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this model is 400 A.
It has a peak reverse voltage rating of 1600 V, making it suitable for high-voltage applications.
This diode operates over a wide temperature range from -40°C to 200°C.
The maximum forward voltage drop is 1.62 V, which helps in minimizing thermal losses during operation.
The diode can withstand a peak non-repetitive forward surge current rating of 8.6 kA.
It uses a 2-pin DO-205AB package, which allows for robust screw mounting.
The diode features a stud anode configuration, which enhances electrical and thermal connectivity.
The physical dimensions are 36.96 mm in length, 32 mm in width, and a diameter of 21 mm.
It is suitable for applications in power rectification, industrial power supplies, and high-current switching circuits.
The peak reverse current is low at 15 mA, which helps reduce leakage under high voltage conditions.
The country of origin for this diode is India.
This diode belongs to Vishay's VS series of power diodes, known for their performance in high-efficiency applications.
