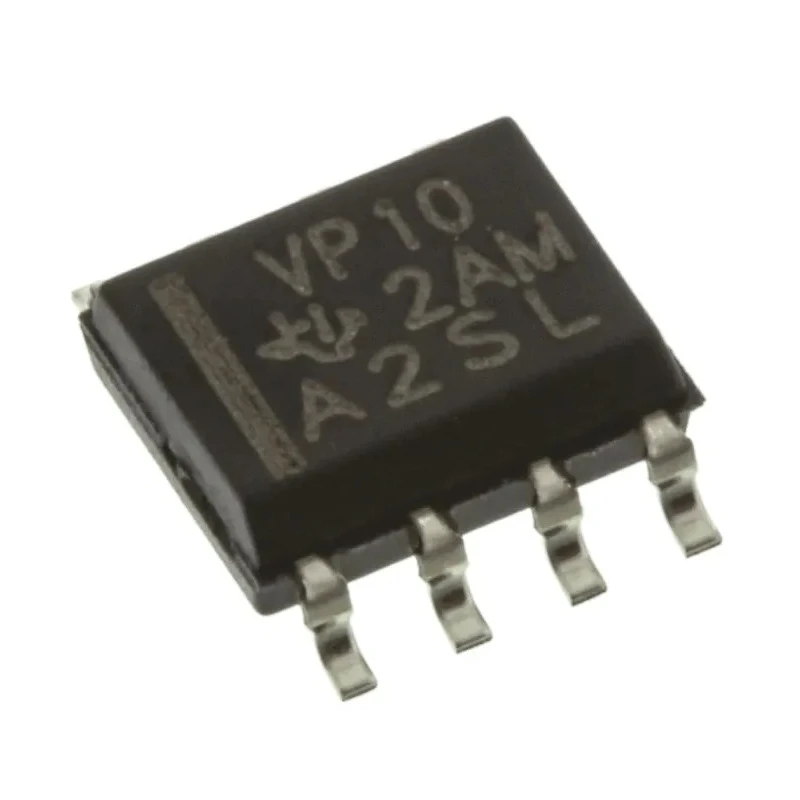

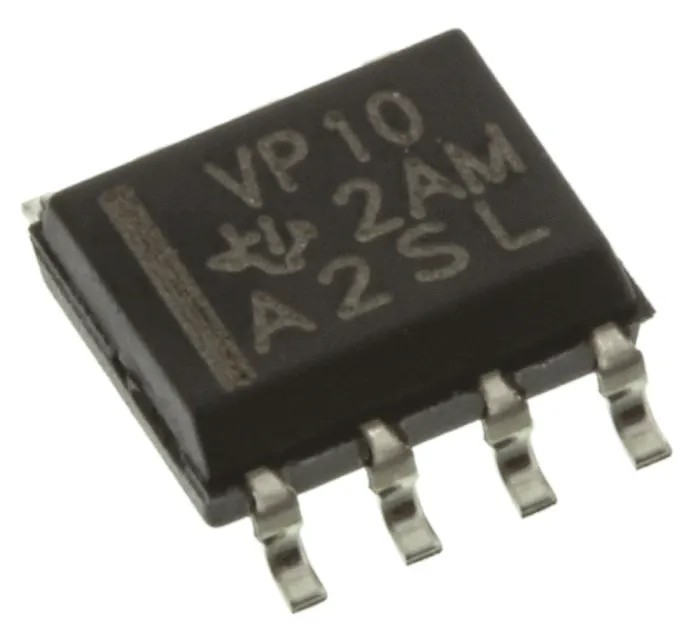

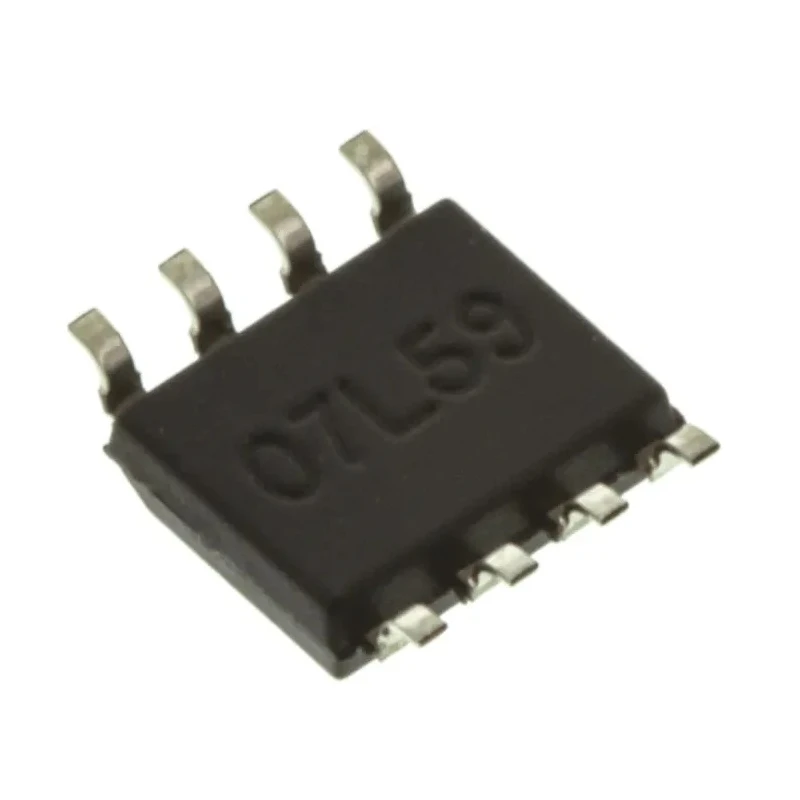

Texas Instruments Line Transceiver Differential Non-Inverting 8-Pin SOIC SN65HVD10D
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.75mm |
| Length | 5mm |
| Model | SN65HVD10D |
| Width | 3.98mm |
| Mount Type | Surface |
| Output type | Differential |
| Series | SN65HVD10 |
| Input Type | Differential |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Polarity | Non-Inverting |
| IC Type | Line Transceiver IC |
| Number Of Channels | 1 |
| Pin Count | 8 |
| Maximum Supply Voltage | 5.5V |
| Logic Family | SN65 |
| Logic Function | Line Transceiver |
| Minimum Supply Voltage | 4.5V |
| Maximum High Level Output Current | -60mA |
| Maximum Propagation Delay Time @ CL | 300ns |
| Supply Current | 15.5mA |
| Maximum Low Level Output Current | 60mA |
Key Features
- Operates with a supply voltage range of 4.5V to 5.5V suitable for standard 5V logic systems.
- Features differential input and output signals ensuring improved noise immunity and signal integrity.
- Non-inverting polarity offers stable signal transmission in data communication setups.
- Compact 8-Pin SOIC package with surface mount capability for space-saving PCB designs.
- Supports a maximum propagation delay time of 300ns enabling high-speed data transfers.
- Wide operating temperature range from -40°C to 125°C suitable for harsh industrial environments.
- Supply current of 15.5mA allows efficient power consumption during operation.
- Maximum output current of ±60mA ensures robust line driving capability in RS-485 networks.
Product Description
Texas Instruments SN65HVD10D is a line transceiver IC designed for differential signaling applications. Positioned in an 8-pin SOIC surface mount package, this device supports differential inputs and outputs with non-inverting polarity. It operates within a supply voltage range of 4.5V to 5.5V, making it compatible with standard 5V systems.
The device offers a maximum propagation delay time of 300 nanoseconds, enabling high-speed RS-485 communication with data rates of 10 Mbit/s or more. The transceiver features ±60mA maximum output current, supporting robust signal driving for reliable data transmission on long communication lines or noisy industrial environments. With a supply current of 15.5mA, it offers energy-efficient operation.
With operating temperature specifications from -40°C to 125°C, the SN65HVD10D is suited for industrial and commercial applications where temperature extremes are common. Its SOIC package conserves PCB space while allowing surface mount installation.
The device is ideally used in industrial automation, communication interfaces, and other electronic instrumentation requiring differential line transceiver functionality. It belongs to the SN65HVD10 series and meets typical RS-485 line driver and receiver criteria.
Operates from 4.5V to 5.5V supply voltage. Differential input and output signals improve noise immunity. Non-inverting polarity for stable data transmission. Surface mount 8-pin SOIC package supports compact PCB designs.
Maximum propagation delay of 300ns for high-speed data transfer. Wide industrial temperature range -40°C to 125°C. Supply current of 15.5mA for power-efficient operation. Maximum output current ±60mA to drive communication lines.
Suitable for RS-485 network applications in industrial systems. Explore more electronics and semiconductor components from Texas Instruments on EnvMart to build reliable industrial and communication systems.
Explore more products in our Line Interface ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates within a supply voltage range of 4.5V to 5.5V, making it suitable for standard 5V logic systems.
The maximum propagation delay time is 300 nanoseconds, enabling high-speed data transfers.
It supports a maximum output current of ±60mA, which allows for robust line driving capability in RS-485 networks.
The operating temperature range is from -40°C to 125°C, suitable for harsh industrial environments.
It comes in a compact 8-pin SOIC surface mount package, which is designed for space-saving PCB layouts.
The supply current is 15.5mA, allowing for efficient power consumption during operation.
The input type is differential, which improves noise immunity and signal integrity.
This model supports a single channel, making it suitable for various applications requiring differential signaling.
The logic function of this device is as a line transceiver, specifically designed for differential signaling applications.
The maximum high-level output current is -60mA, which supports effective signal driving.
It is suitable for industrial automation, communication interfaces, and other electronic instrumentation requiring differential line transceiver functionality.
The height of this model is 1.75mm, which is part of its compact design for surface mounting.
