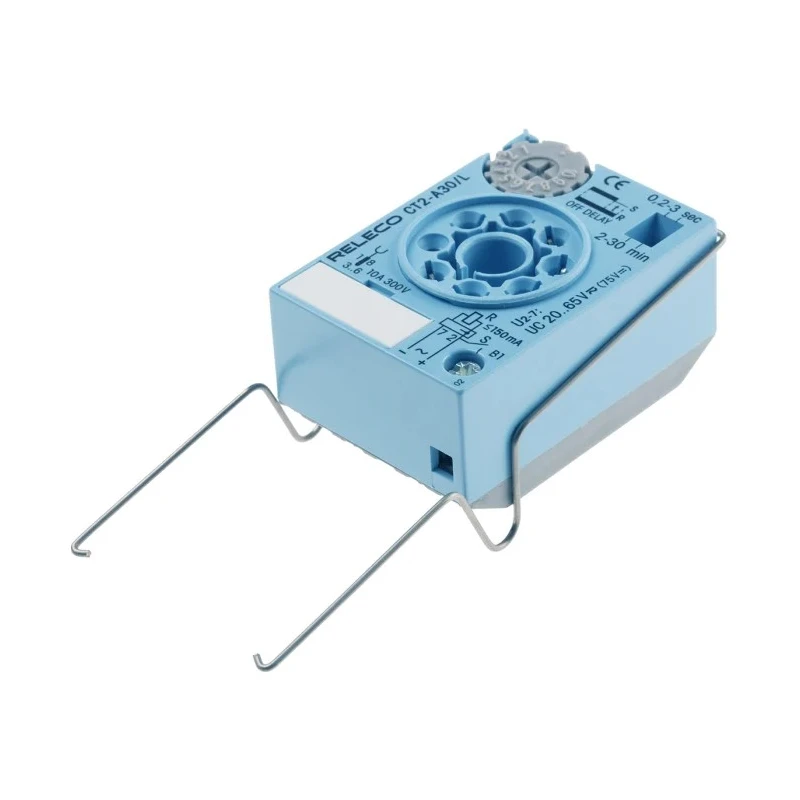

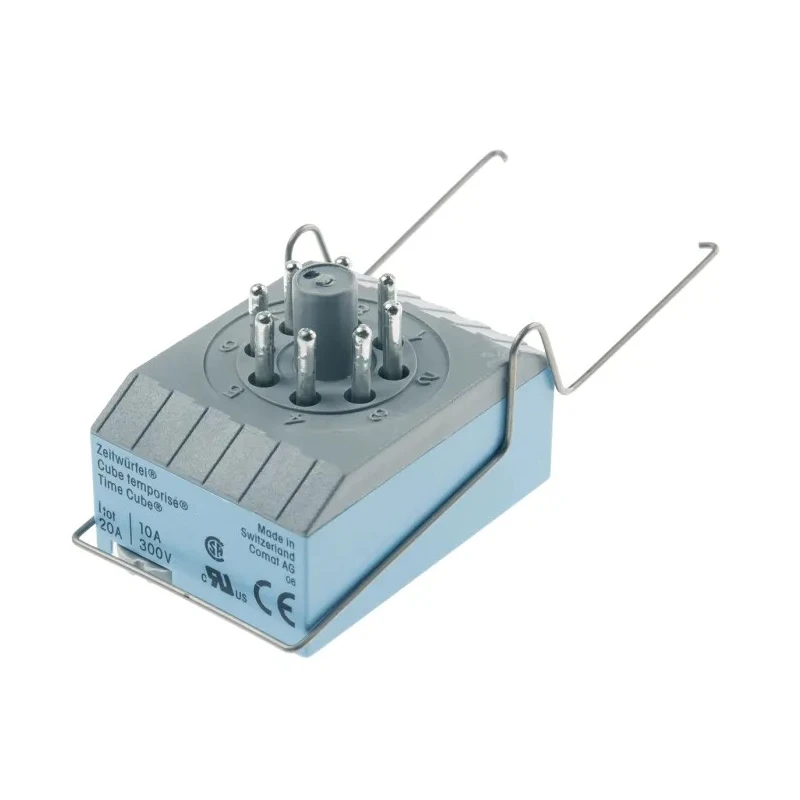

Releco Timer Relay 3-Contact, OFF Delay, 220 V dc/20, 65 V ac, 0.2 to 30 s/min Time Range, 8-Pin Terminal CT2-A

Releco CT2-A Series Timer Relay model CT2-A offers reliable time delay operation with an OFF delay function, ideal for automation, industrial control, and signal conditioning applications. It features a 3-contact configuration with 3 changeover (CO) contacts, designed to switch loads up to 10A at voltages up to 400 V.

The timer supports a broad selectable time range from 0.2 to 30 seconds and 0.2 to 30 minutes, allowing versatile timing settings to match specific application requirements. It operates on a DC supply voltage of 220 V and AC supply voltages of 20 V and 65 V, providing flexibility in power sources.

Its compact size, measuring 50 mm by 35 mm by 37 mm, enables easy installation into control panels where space is limited. The device is equipped with an 8-pin terminal design enabling plug-in installation for quick and secure connections.

The timer relay’s IP40 rating ensures protection against solid foreign objects greater than 1 mm, making it suitable for many industrial and laboratory settings. It can reliably function within a wide temperature range from -25°C to 60°C, making it suitable for demanding environments.

Timing adjustment is precisely controlled via a dial potentiometer, allowing fine tuning after installation. The relay is compliant with EN 60204-1 and EN 292-2 safety standards and is UL and CSA listed, ensuring adherence to international quality and safety benchmarks.

The timer supports a wide time range from 0.2 to 30 seconds and 0.2 to 30 minutes for versatile timing needs. Operates on 220 V dc supply voltage and accommodates 20 and 65 V ac supply voltages. Equipped with an 8-pin terminal configuration for easy installation and integration.

Designed with a durable 3 CO contact configuration rated for 10A contact current at a switching voltage of up to 400 V. Compact dimensions of 50 mm length, 35 mm width, and 37 mm height enable space-saving setups. IP40 rated housing provides protection against solid objects and suitable for many industrial environments.

Operating temperature range from -25°C to 60°C ensures reliable performance in diverse conditions. Fine timing adjustment is achieved by a dial potentiometer for precise control.

This Timer Relay is widely used in automation systems, industrial manufacturing processes, electrical control panels, and HVAC control setups. It is an essential component for delayed switching and timed control functions in electrical circuits.

Explore the Releco catalog on EnvMart for a wide selection of relays and timer devices designed for industrial and automation applications.
