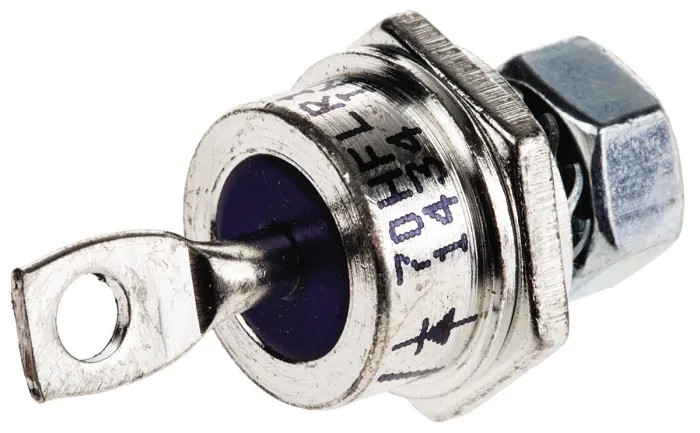

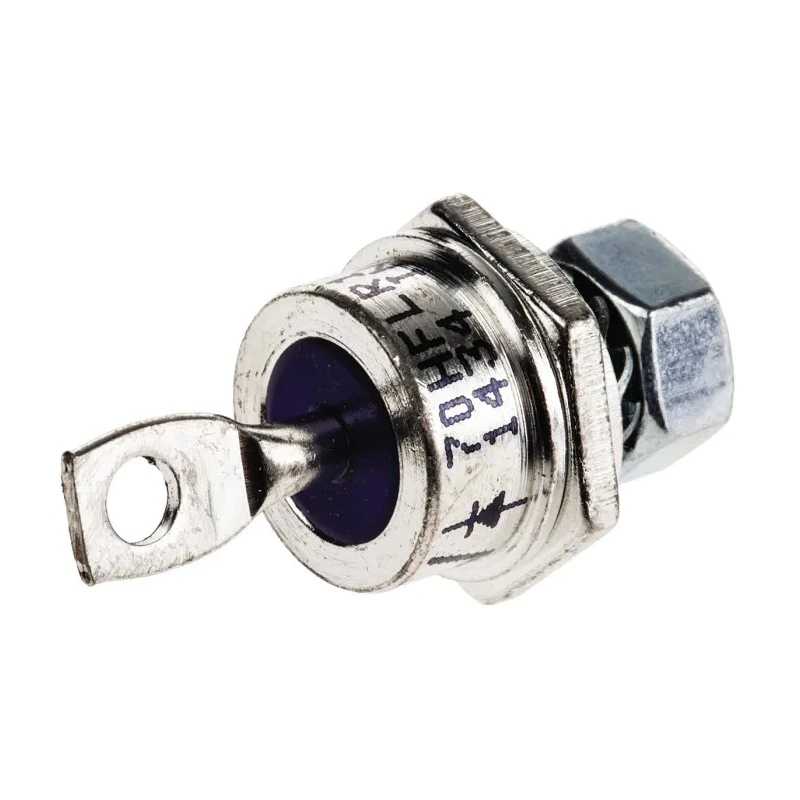

Vishay 1 kV 70 A Switching Diode 2-Pin DO-203AB VS-70HFLR100S05

Vishay VS-70HFLR100S05 is a high-performance switching diode rated for 1 kV voltage and 70 A current in a 2-pin DO-203AB package. It is designed for fast recovery applications in power electronics and industrial semiconductor circuits requiring efficient switching and surge handling.

This diode supports a maximum continuous forward current of 70 amperes and endures peak reverse repetitive voltages up to 1 kV. Its stud anode configuration and switching rectifier type make it suitable for robust and reliable switching operations.

With a low peak reverse current of 100 microamperes and a maximum forward voltage drop of 1.85 volts, it offers high efficiency and minimal power loss. The device withstands operating temperatures ranging from -40°C to 125°C, ensuring long-term durability under demanding conditions.

Its peak non-repetitive surge current rating of 730 amperes ensures safe operation under transient power spikes. The fast reverse recovery time of 500 nanoseconds enhances switching performance in power converters and industrial control systems.

The physical dimensions of 22.9 mm height and 17.35 mm diameter allow straightforward integration into various circuit designs. The diode is RoHS compliant and manufactured in India, aligning with global environmental standards.

This diode supports a maximum continuous forward current of 70 amperes. The peak reverse repetitive voltage rating is 1 kV for reliable voltage endurance. The diode features a switching rectifier type with a stud anode configuration.

Peak reverse current is limited to 100 microamperes, ensuring low leakage. Effective operation is guaranteed within temperature ranges from -40°C up to 125°C. The maximum forward voltage drop is 1.85 volts for efficient conduction.

Peak non-repetitive forward surge current rating is 730 amperes for robust transient handling. The diode has a fast reverse recovery time of 500 nanoseconds, enhancing switching speed. Compact dimensions include a height of 22.9 mm and diameter of 17.35 mm.

This product complies with RoHS standards and is made in India.

This Vishay switching diode is ideal for use in industrial electronics, power supplies, motor drives, and semiconductor switching applications. It provides reliable performance under harsh conditions with fast switching capabilities.
