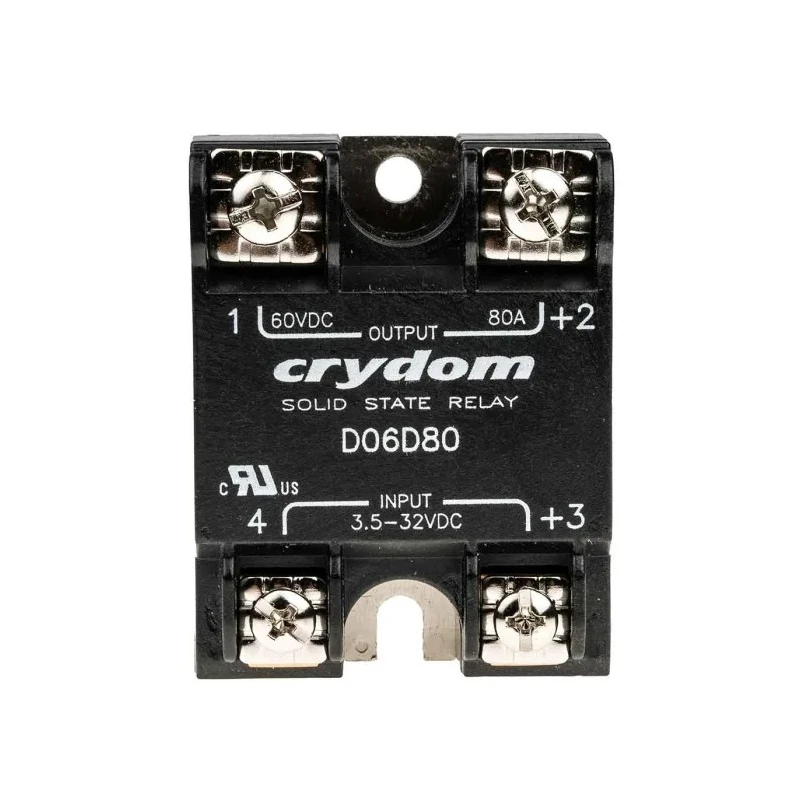

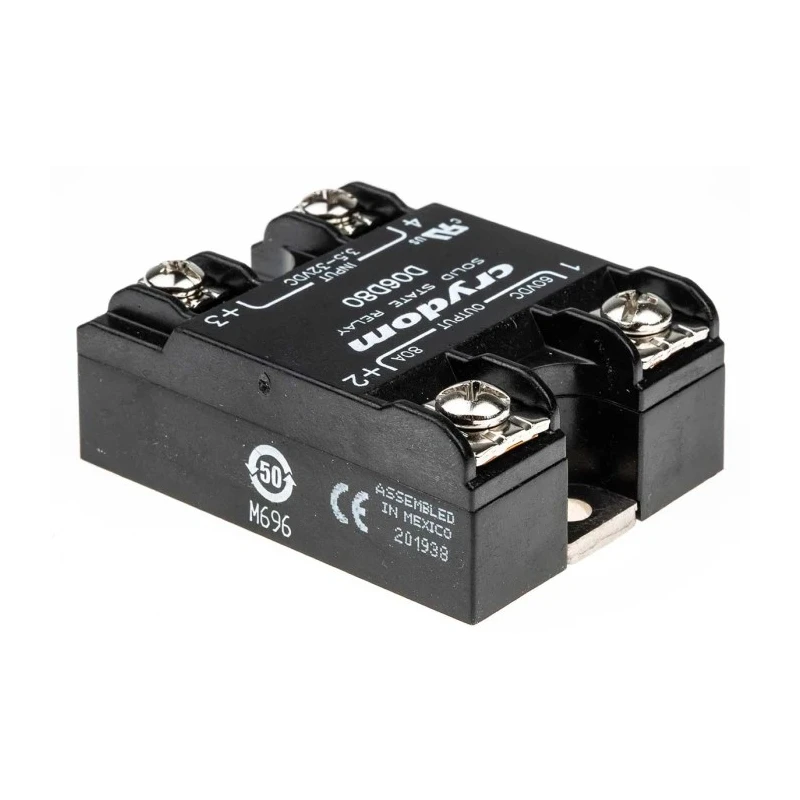

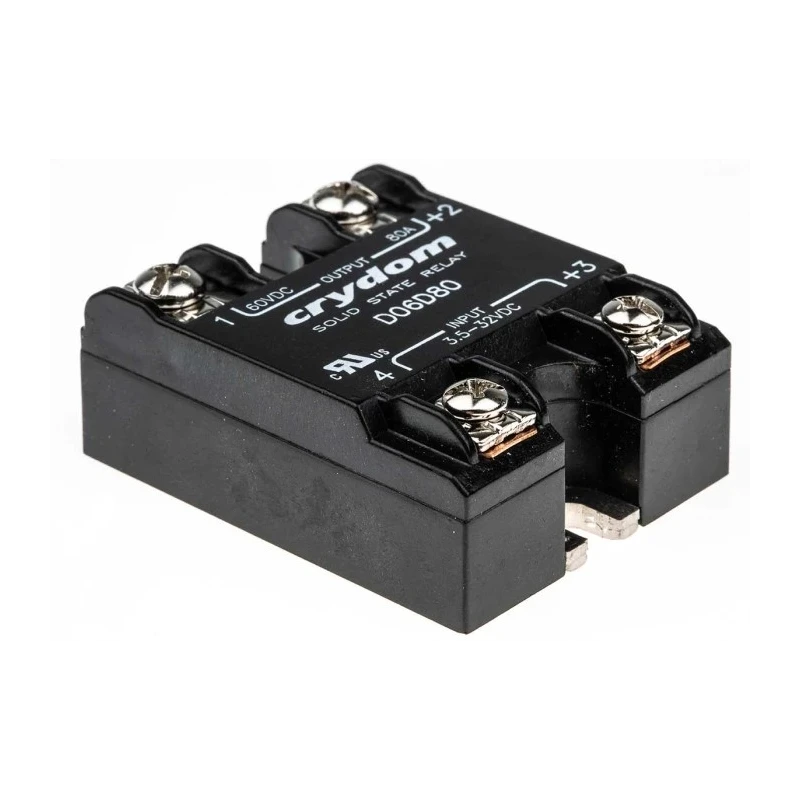

Crydom Solid State Relay Panel Mount 80 A Load 60 V dc Load 32 V Control D06D80

The Crydom D06D80 Solid State Relay is engineered for industrial and commercial applications requiring reliable, high-current DC switching.

With a maximum load current rating of 80 A and a maximum load voltage of 60 V DC, it is optimal for controlling heavy-duty loads such as motors, lamps, and heating elements in industrial automation systems. The device supports a control voltage range from 3.5 V to 32 V, accommodating a variety of control signal sources.

The solid-state design eliminates mechanical wear, enhancing durability and reducing maintenance needs, ideal for continuous operation in demanding environments. The relay offers zero-cross switching function to minimize electrical noise and prolong the lifespan of connected equipment.

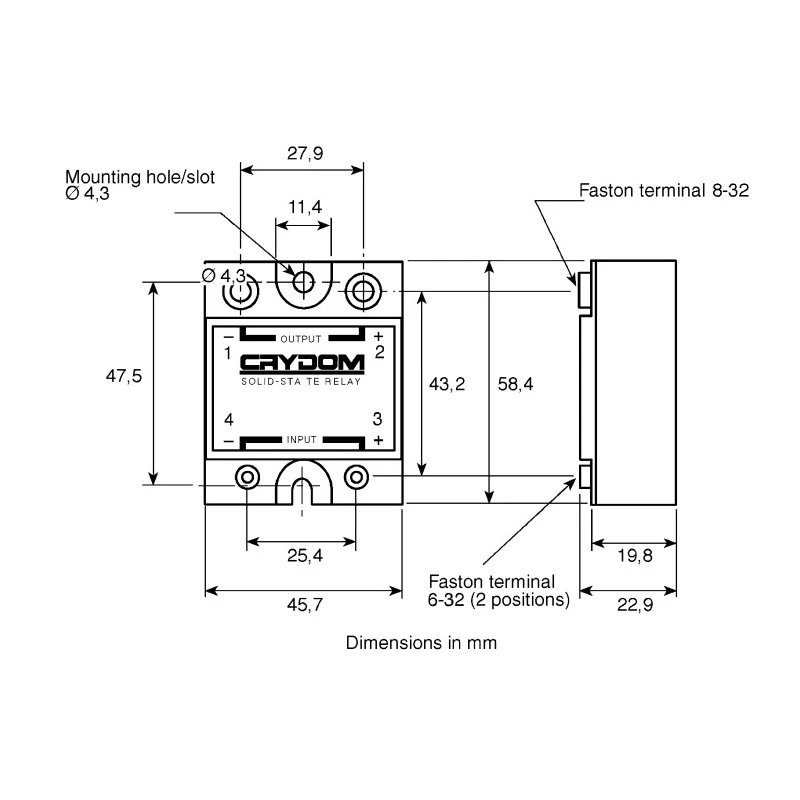

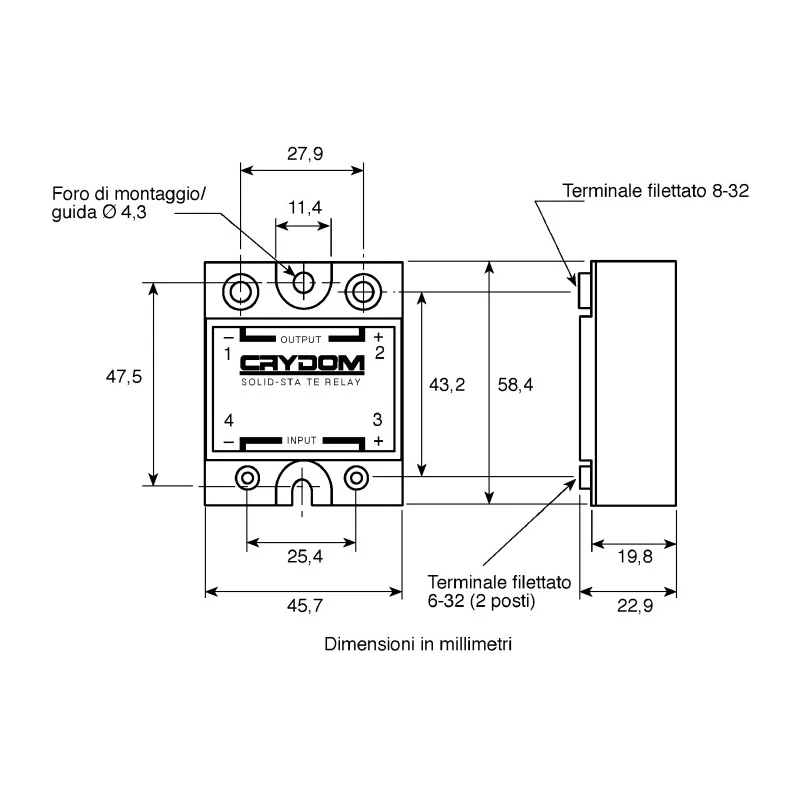

Operating temperatures span from -30°C to 80°C, allowing operation in diverse environmental conditions with IP20 protection rating ensuring basic ingress protection. Measuring 58.4 mm in length, 22.6 mm in width, and 22.9 mm in height, the compact dimensions facilitate installation in tight spaces within control panels.

Additional features include low off-state leakage current of 0.1 mArms and low I/O capacitance of 8 pF, contributing to high signal integrity. The aluminum baseplate aids in heat dissipation; however, use with an appropriate heatsink (part number 703-4552) is recommended to maintain optimal temperature during heavy usage.

This relay conforms to industry standards such as CSA, UR, and RoHS, ensuring compliance with safety and environmental regulations. Produced in Mexico, the D06D80 is well-suited for applications in industrial automation, machinery control, and HVAC systems.

The relay supports heavy-duty loads with a maximum load current of 80A. It features panel mount type with screw terminal for secure and easy installation. Designed for DC loads with maximum load voltage of 60 V and minimum load voltage of 1 V DC.

Control voltage ranges from 3.5 V minimum to a maximum of 32 V, allowing flexible control options. Compliant with CSA, UR, and RoHS standards ensuring safety and environmental compatibility. Wide operating temperature from -30°C up to 80°C making it suitable for various industrial environments.

Compact size with dimensions approximately 58.4 mm length, 22.6 mm width, and 22.9 mm height. Low off-state leakage current of 0.1 mArms and low capacitance of 8 pF to maintain signal integrity. Output type is SCR with zero-cross switching function for reliable load control and noise reduction.

Crafted with an aluminum baseplate and made in Mexico for assured manufacturing quality.
