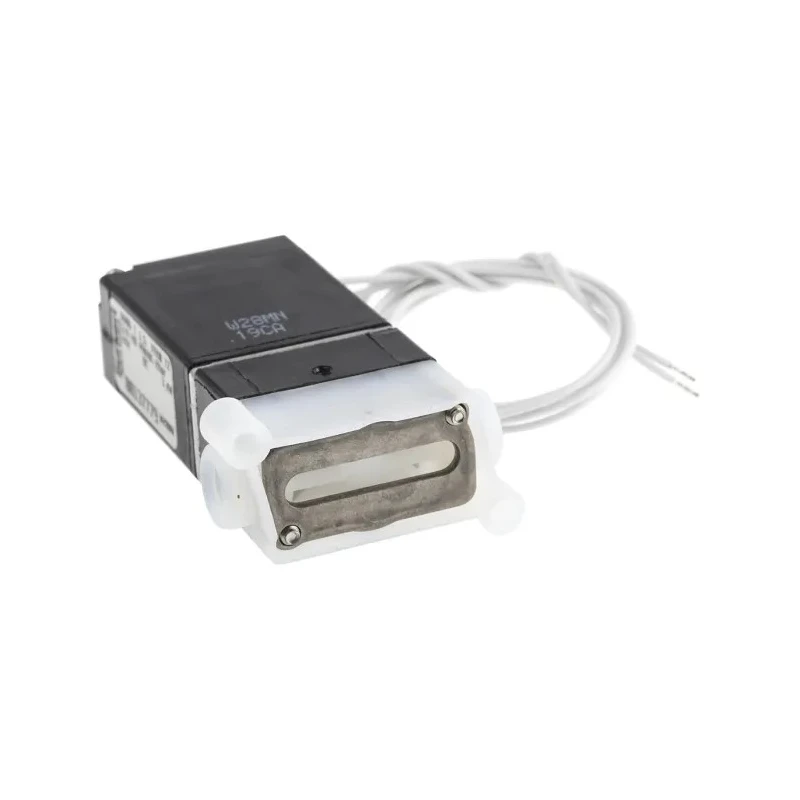

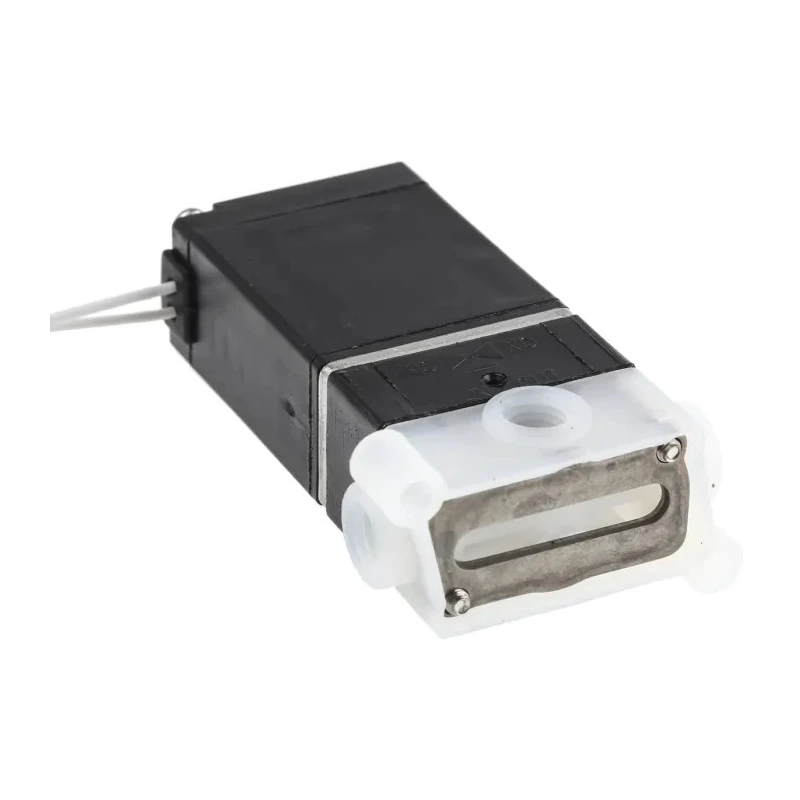

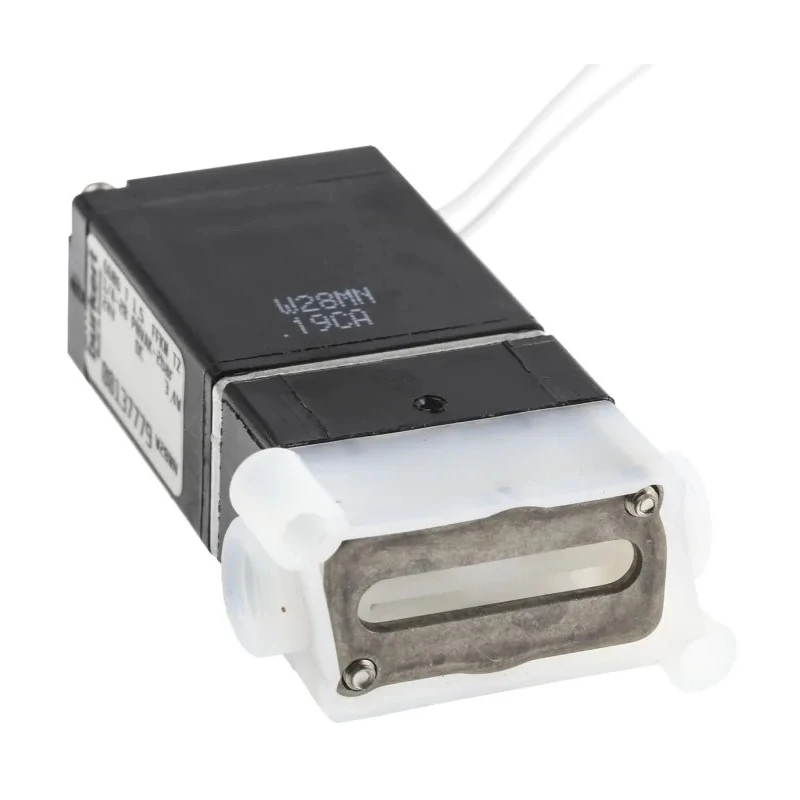

Burkert 3 Port ETFE Body Solenoid Valve 24V DC, 1.5mm Orifice, Max 2 bar, Model 137779

Burkert 137779 is a highly reliable 3-port solenoid valve designed with an ETFE material body for excellent chemical resistance and durability. Operating at 24V DC, this valve integrates a 1.5mm orifice providing a flow factor (Kv) of 0.025 m³/h, making it ideal for precise fluid control applications.

Its compact design, measuring just 16 mm in width, suits space-constrained installations commonly found in medical laboratories and scientific instrumentation. The valve is engineered to withstand a maximum operating pressure of 2 bar and an operational temperature range between 0°C and 55°C, ensuring dependable performance under varied environmental conditions.

The valve incorporates servo assist technology, enhancing actuation efficiency for rapid response times with maximum opening and closing times of 25 milliseconds. The 2-way normally closed and 3-way universal functions enable versatile control suitable for dosing, mixing, filling, and batching tasks.

Its IP65 rating protects against dust ingress and water jets, making it suitable for industrial, laboratory, healthcare, and biotechnology environments where contamination prevention is critical. The valve’s materials and construction also make it resistant to solvents, strong acids, and oxidizing solutions commonly encountered in process industries.

The valve body is made of ETFE for high chemical resistance. Supports 24V DC supply voltage with a power consumption of 3.4W. Has a 1.5mm orifice with a flow factor (Kv) of 0.025 m³/h. Rated for maximum pressure of 2 bar and operating temperature range of 0°C to 55°C.

Compact size with 16 mm width enables installation in limited spaces. Servo assist enhances valve actuation speed and efficiency. Direct acting 2-way normally closed and 3-way universal configurations. Max opening/closing time is 25 milliseconds for fast response.

IP65 protection rating suitable for harsh environments. Applications include analytical instrumentation, biotechnology, disinfectant dosing, and chemical processing.

Choose the Burkert 137779 Solenoid Valve for robust, fast-acting, and chemically resistant valve solutions in demanding industrial and laboratory settings. Explore the extensive range of industrial valves and fittings at EnvMart to find complementary components for your control system.
