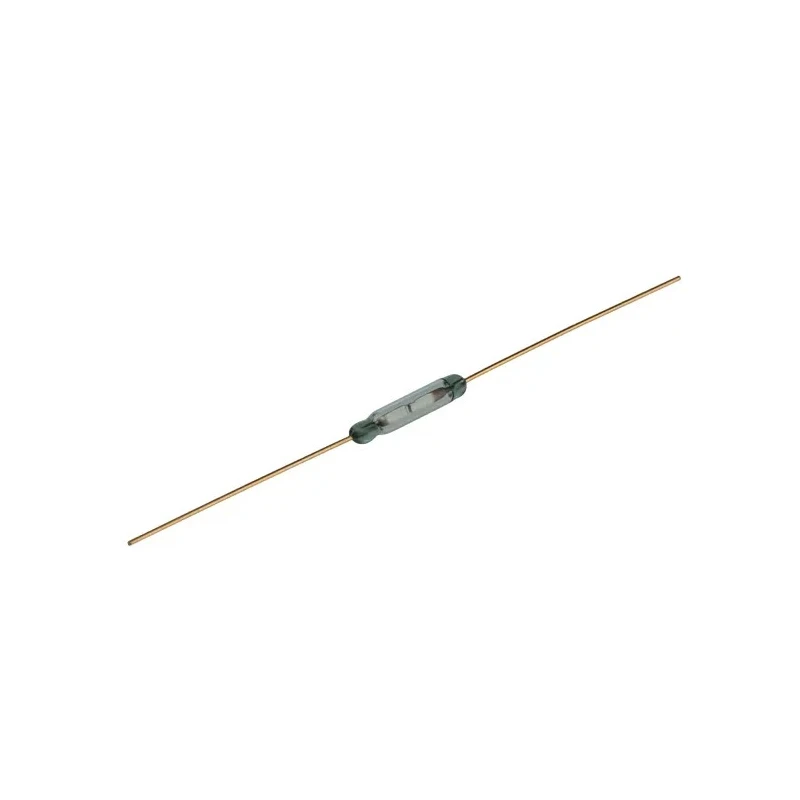

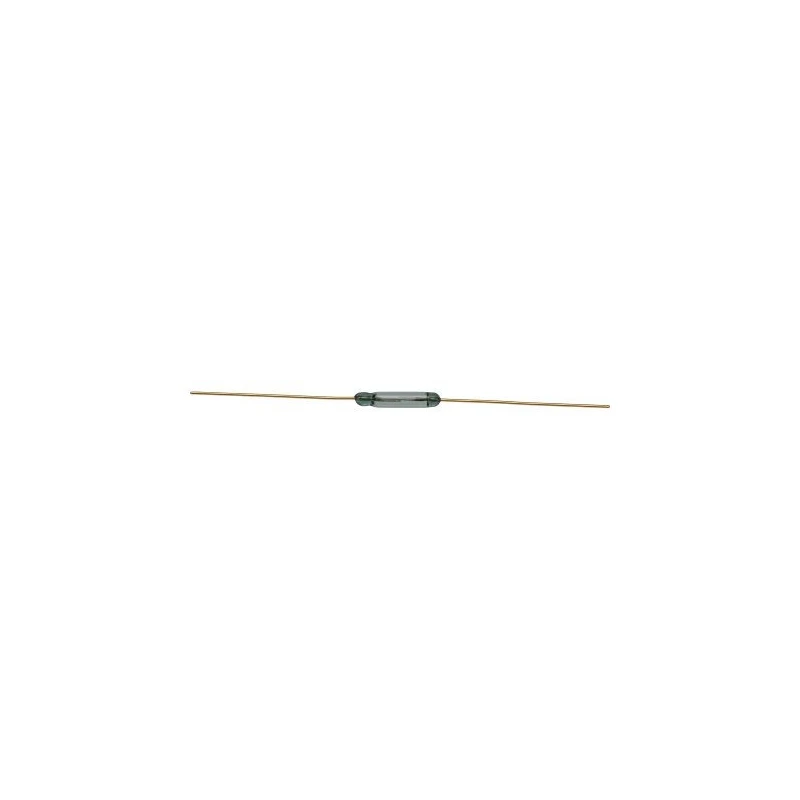

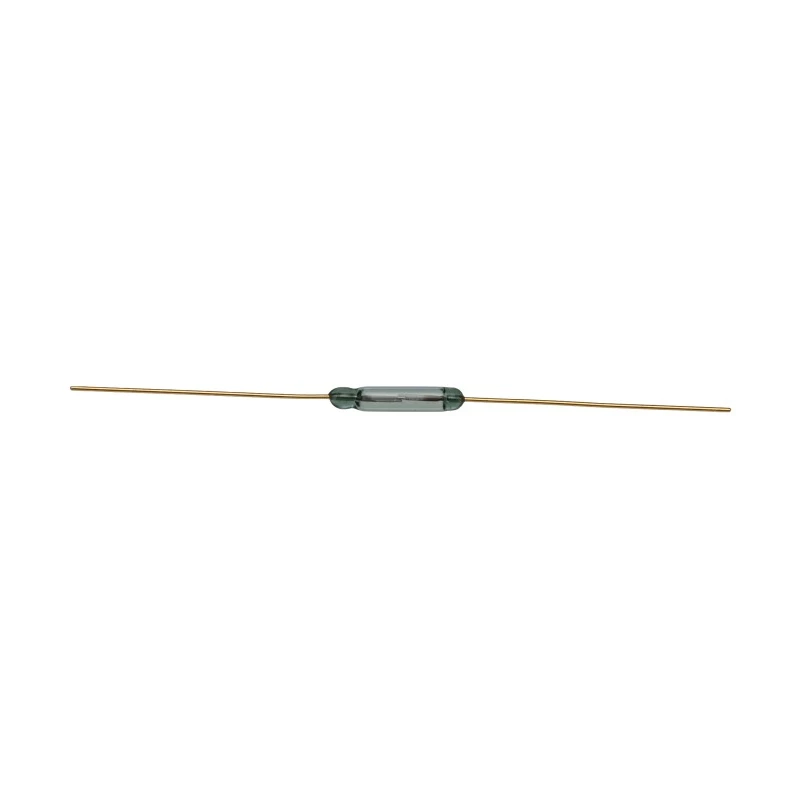

Assemtech SPST PCB Reed Switch 500 mA 140 V AC/DC 2.1 mm Width 55 mm Length 2502-2522-020

Assemtech 2502-2522-020 is a Single Pole Single Throw (SPST) PCB Reed Switch rated for a maximum switching current of 500 mA and maximum voltage of 140 V AC/DC. This reed switch features a hermetically sealed gas-filled glass envelope that protects the internal contacts, which are rhodium plated to ensure low contact resistance and excellent durability.

The device offers a compact form factor with a width of 2.1 mm and length of 55 mm, making it suitable for PCB mounting applications where space is critical. It operates reliably within a wide temperature range from -40°C up to 125°C, suitable for harsh industrial environments.

This reed switch is designed for fast switching applications, with a maximum release time of 0.05 ms and an operating time including bounce of 0.3 ms. The contact configuration is normally open (form A), providing a single pole single throw operation. Terminals are wire type, suitable for soldering or PCB connection.

Assemtech’s 2502-2522-020 complies with ISO standards and belongs to the GC series, ensuring quality and reliability in automation, control systems, and electronic switching applications. Its hermetic sealing also prevents contamination and enhances long operational life, reaching up to 10^8 mechanical operations.

This reed switch is ideal for use in industrial automation, electrical switching, instrumentation, and various electronics projects requiring precise and reliable switching performance. Its compact size and high performance make it a favored component in automated control, HVAC systems, and embedded electronics.

Single Pole Single Throw contact configuration. Maximum switching current of 500 mA and power rating of 6 W. Rhodium plated contacts ensure low contact resistance of 150 milliohms. Hermetically sealed gas-filled glass envelope for protection and longevity.

Operating temperature range from -40°C to 125°C. Compact dimensions: 2.1 mm width and 55 mm length. Fast maximum release time of 0.05 ms and operating time including bounce of 0.3 ms. Wire terminal type with PCB mounting.

Complies with ISO standards and part of the GC series. Browse EnvMart's extensive catalog to explore more high-quality Reed Switches and related components.
