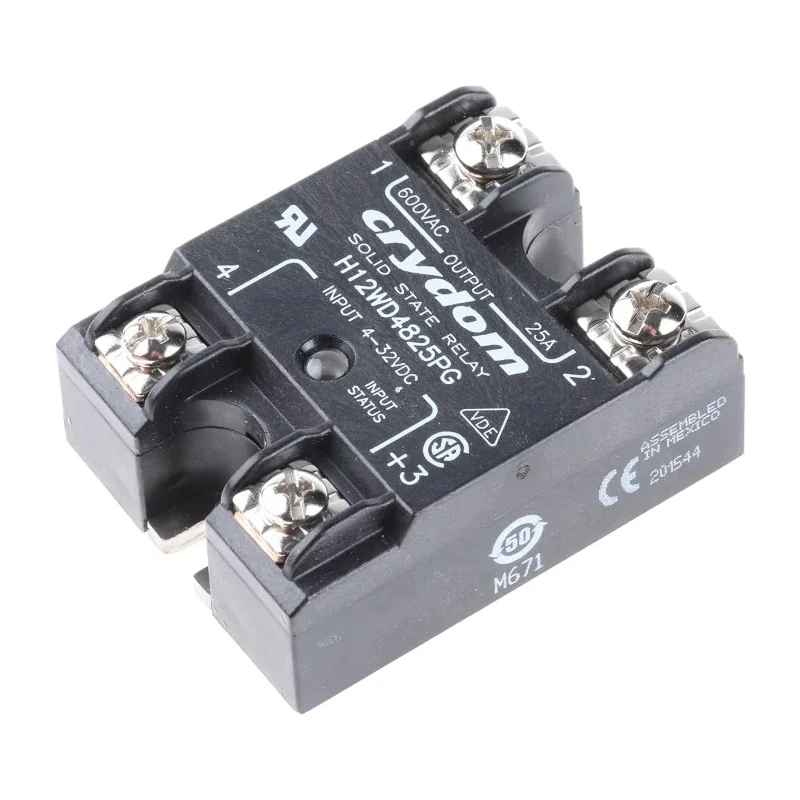

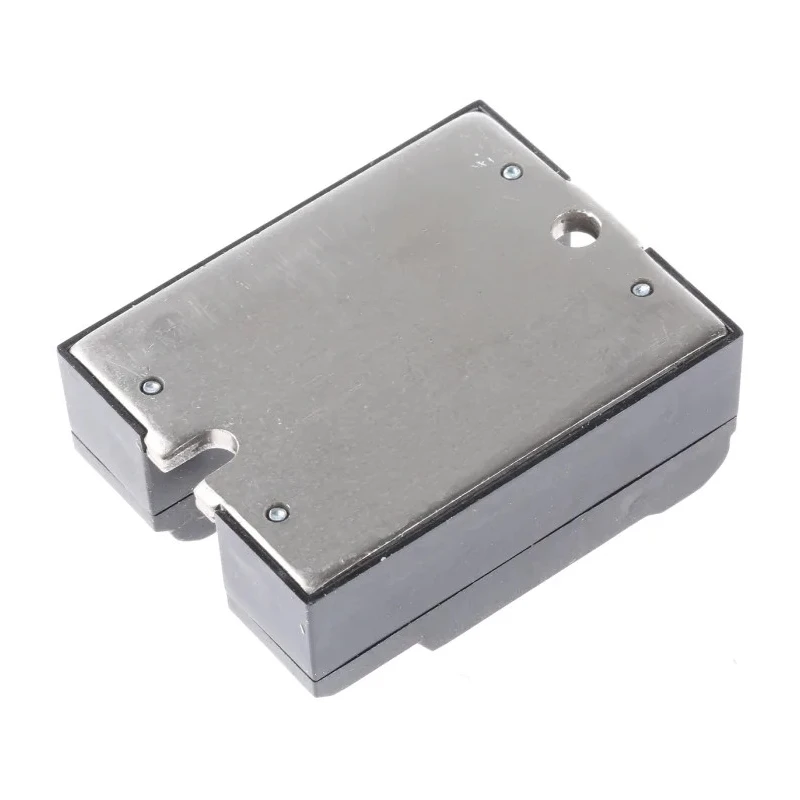

Crydom H12 Series Solid State Relay, Panel Mount, 25 A Load Current, 660 V AC Load, 32 V DC Control H12WD4825PG

The Crydom H12WD4825PG is a premium Solid State Relay belonging to the H12 series, specifically engineered for industrial and automation applications requiring high reliability and durability. This model supports a maximum load current of 25 A with a load voltage capacity of up to 660 V AC. Designed for panel mounting, it offers a compact and secure mounting solution with robust screw terminals and an IP20 protection rating.

The control voltage input range is from 4 V DC minimum to 32 V DC maximum, making it compatible with various control systems. A notable feature is the zero cross switching function, which reduces electrical noise and extends the lifespan of connected equipment by switching load voltage only at zero crossing points.

This SSR includes built-in overvoltage and transient suppression, ensuring protection against electrical surges and transients common in industrial environments. Its operating temperature range from -40°C to +80°C allows usage in harsh conditions. The relay has minimal off-state leakage current of 1 mA and a low input-output capacitance of 8 pF, ensuring minimal interference and reliable switching performance.

The compact size with dimensions of 58.4 mm length, 22.6 mm width, and 22.9 mm height facilitates easy integration into control panels and industrial machinery. Compliance with standards such as CSA, RoHS, and UR certification assures quality and regulatory adherence. This Solid State Relay is ideal for industrial automation, manufacturing, electrical panels, process control systems, HVAC controls, and other applications requiring efficient and silent switching.

Key features include the use of SCR as output type providing robust load switching, status indicating LED for operation verification, and screw terminals for ease of wiring. The relay ensures solid-state reliability with microprocessor compatible inputs, supporting modern control architectures.

Set your industrial automation and control projects with the reliable Crydom H12WD4825PG, engineered to meet high performance and safety standards. Explore more products within our Electronics & Electricals category at EnvMart for comprehensive automation and control solutions.

Designed for reliable panel mounting applications. Supports a maximum load current of 25 amps. Operates with a maximum load voltage of 660 volts AC. Input control voltage ranges from 4 V DC minimum to 32 V DC maximum. Features zero cross switching function for reduced electrical noise.

Equipped with screw terminal type for secure connections. Rated for IP20 protection class. Operates reliably in temperatures ranging from -40°C to +80°C. Includes built-in overvoltage and transient protection for enhanced durability.

Compact dimensions of approximately 58.4 mm length, 22.6 mm width, and 22.9 mm height.
