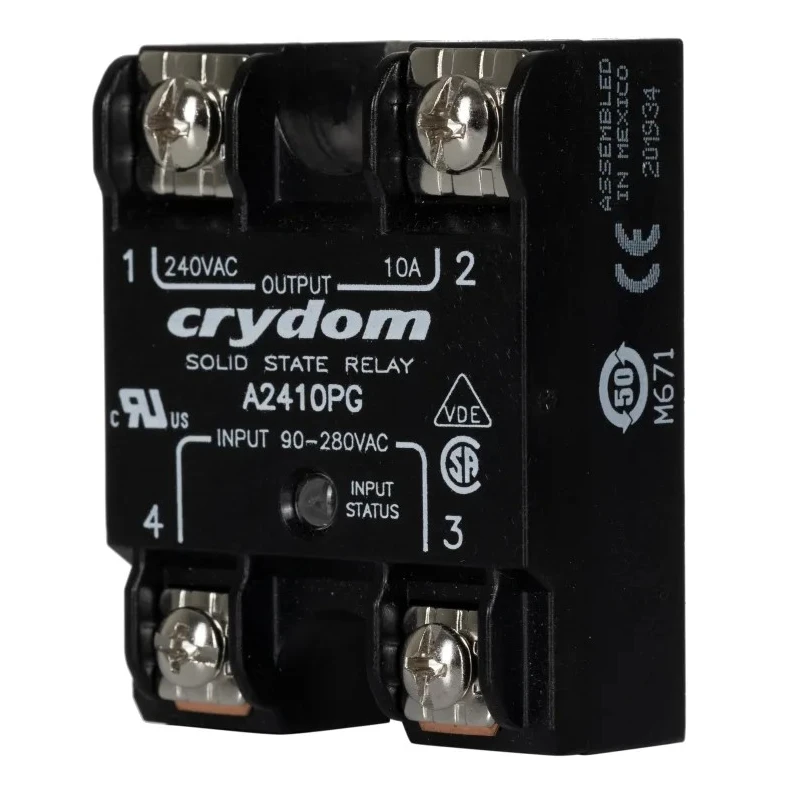

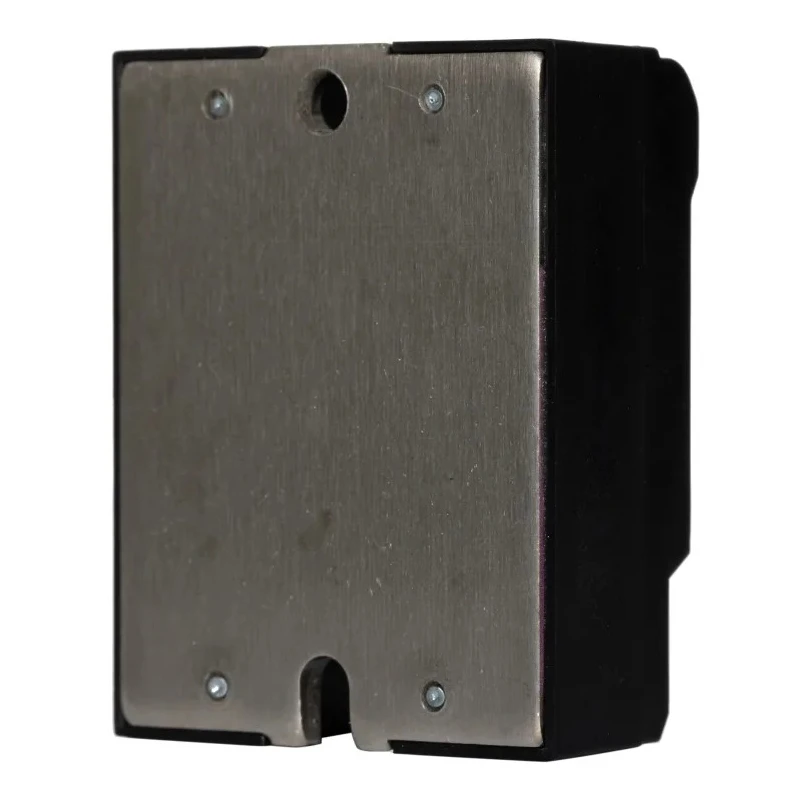

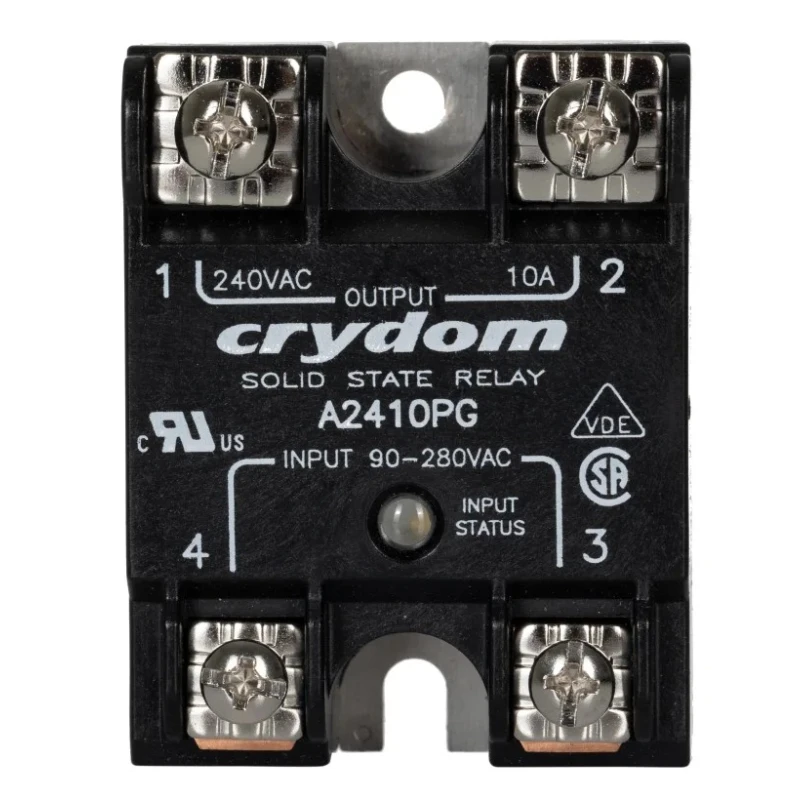

Crydom Solid State Relay 1 Series, 10 A Load Current, 280 Vrms Load Voltage, Panel Mount A2410PG

Crydom A2410PG is a 1 Series solid state relay engineered for panel mounting applications, supporting a maximum load current of 10 A and a load voltage up to 280 Vrms. Operating on the principles of solid-state switching, it eliminates moving parts to resist wear and ensure long service life in industrial setups.

This relay utilizes zero voltage switching, activating at the point where AC voltage crosses zero to minimize electrical noise and prolong the life of connected equipment. Its low off-state leakage current of 10mA enhances energy efficiency while reducing unintended power consumption.

The device is equipped with screw terminals, allowing straightforward installation and wiring with standard tools. It operates reliably in temperatures from -40°C to 80°C, making it suitable for harsh industrial environments.

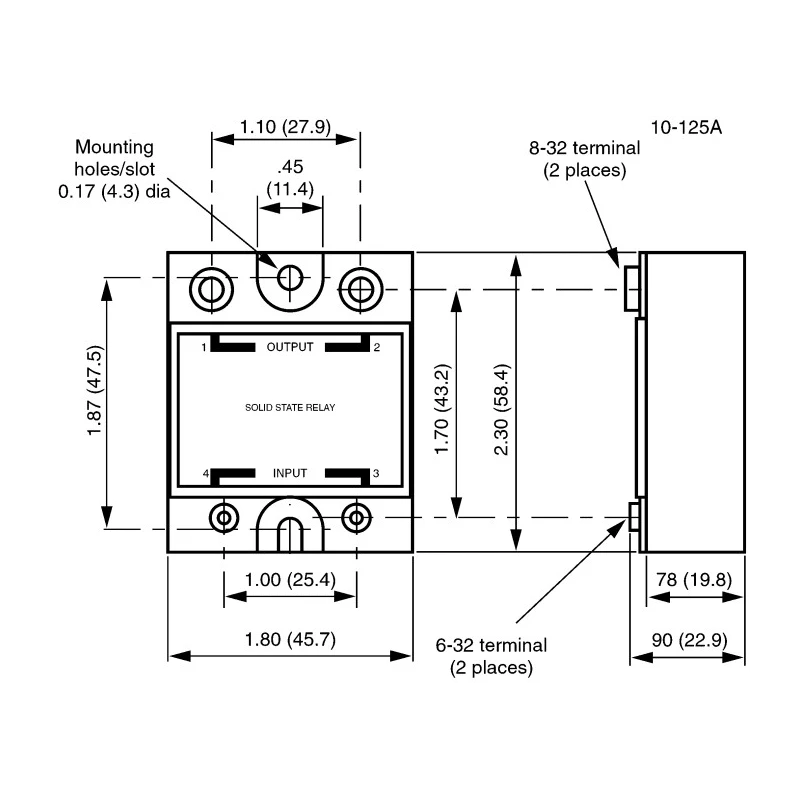

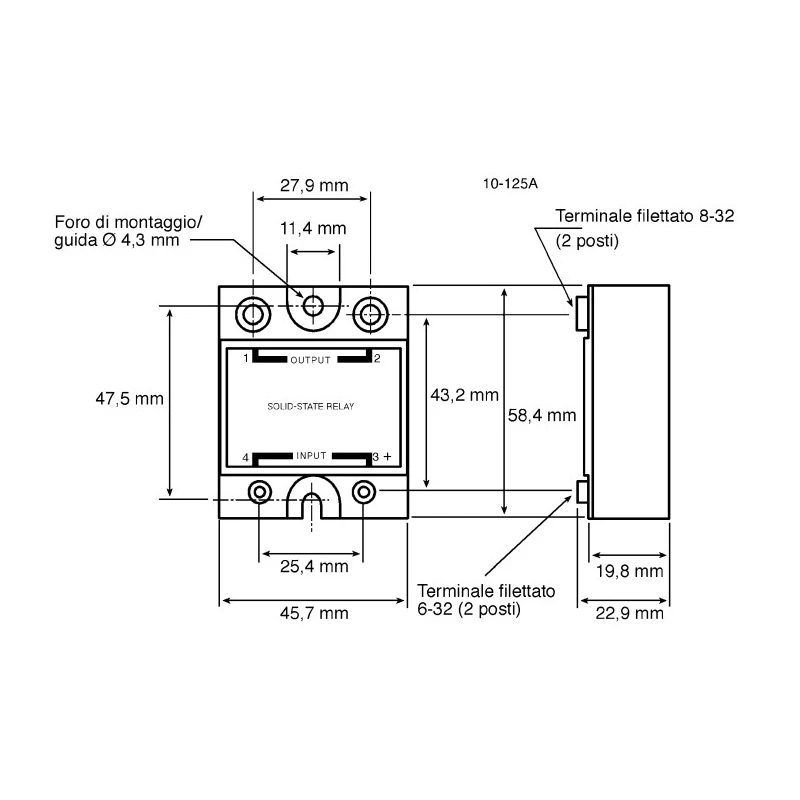

With compact dimensions of 58.4mm length, 22.9mm height, and 22.6mm width, and weighing around 86.5g, it places minimal mechanical load on mounting structures. The SCR output type provides efficient and robust control of electrical loads.

The relay includes a green LED indicator facilitating quick visual status checks during operation. Manufactured in Mexico, it complies with RoHS standards ensuring environmentally responsible production.

This solid state relay is ideal for industrial, manufacturing, commercial food processing, textile machinery, and general automation applications where efficient and reliable load control is critical.

Explore comprehensive selections of Solid State Relays and automation components at EnvMart for diverse industrial and electrical applications. Features low off-state leakage current of 10mA for efficient operation. Incorporates zero voltage switching to minimize electrical noise during operation.

Equipped with screw terminals for secure and easy wiring. Operates reliably between -40°C and 80°C for diverse industrial environments. Compact dimensions: 58.4mm length, 22.9mm height, and 22.6mm width. Output type is Silicon Controlled Rectifier (SCR) ensuring robust switching.

Lightweight at approximately 86.5g reducing mechanical stress on mounting. Green LED indicator for easy status monitoring. Suitable for industrial and commercial equipment requiring reliable load control. Manufactured in Mexico, RoHS compliant for environmental safety.
