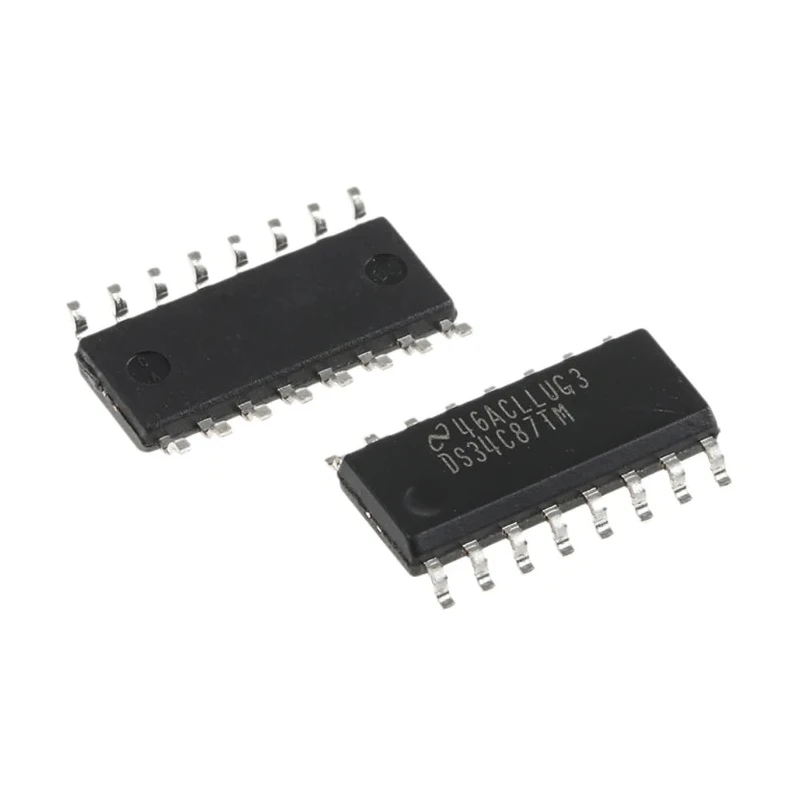

Texas Instruments 4-Channel CMOS Line Driver Transmitter 3-State 16-Pin SOIC DS34C87TM/NOPB
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.75mm |
| Length | 10mm |
| Model | DS34C87TM/NOPB |
| Width | 6.2mm |
| Mount Type | Surface |
| Output type | 3 State |
| Series | DS34C87T |
| Input Type | Differential |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| IC Type | Line Driver |
| Number Of Channels | 4 |
| Pin Count | 16 |
| Maximum Supply Voltage | 5.5V |
| Logic Family | CMOS |
| Logic Function | Line Driver |
| Minimum Supply Voltage | 4.5V |
| Maximum Propagation Delay Time @ CL | 11ns |
| Supply Current | 2mA |
Key Features
- The line driver features a CMOS logic family optimized for RS-422 applications.
- It supports four channels providing differential input and 3-state output capability.
- Designed for surface mount with a standard SOIC 16-pin package.
- Operates within a supply voltage range of 4.5V to 5.5V with low supply current of 2mA.
- Temperature rating ranges from -40°C to 85°C ensuring reliability in industrial environments.
- Maximum propagation delay time at load capacitance of 11ns ensures fast signal transmission.
- Package dimensions approximately 10mm length × 6.2mm width × 1.75mm height.
- No automotive or special standards approvals are applied to this device.
Product Description
Texas Instruments DS34C87TM/NOPB is a 4-channel CMOS line driver transmitter designed for RS-422 compliant communication applications. Packaged in a 16-pin SOIC surface mount form, it provides reliable differential signaling with 3-state output technology.
Operating over a voltage range of 4.5V to 5.5V, the device features low power consumption with a supply current of 2mA. It exhibits a maximum propagation delay of 11ns at the specified load capacitance, allowing fast switching and communication speeds.
The transmitter's industrial temperature range from -40°C to 85°C makes it suitable for harsh operating environments. Its compact mechanical dimensions - 10mm length, 6.2mm width, and 1.75mm height - enable efficient PCB space utilization.
This CMOS line driver supports differential inputs and 3-state outputs across its four channels, beneficial for systems requiring controlled line enabling and disabling for bus sharing or multi-point networks.
The device is compliant with typical standard logic functions for line driver ICs but does not hold any automotive or specialized industrial approvals. It finds applications in electronic equipment, data communication systems, industrial control interfaces, and other RS-422 line transmission purposes.
The line driver features a CMOS logic family optimized for RS-422 applications. It supports four channels providing differential input and 3-state output capability. Designed for surface mount with a standard SOIC 16-pin package.
Operates within a supply voltage range of 4.5V to 5.5V with low supply current of 2mA. Temperature rating ranges from -40°C to 85°C ensuring reliability in industrial environments. Maximum propagation delay time at load capacitance of 11ns ensures fast signal transmission.
Package dimensions approximately 10mm length × 6.2mm width × 1.75mm height. No automotive or special standards approvals are applied to this device. Ideal for line transmitting applications in industrial, electronic, and communication systems.
Explore further electronic components and semiconductor devices at EnvMart for your industrial and communication system needs.
Explore more products in our Line Interface ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates within a supply voltage range of 4.5V to 5.5V.
It supports four channels, providing differential input and 3-state output capability.
The maximum propagation delay time is 11ns at the specified load capacitance.
The package dimensions are approximately 10mm in length, 6.2mm in width, and 1.75mm in height.
It is designed in a 16-pin SOIC surface mount package.
The operating temperature range is from -40°C to 85°C, making it suitable for industrial environments.
The supply current is 2mA, contributing to its low power consumption.
It is based on a CMOS logic family optimized for RS-422 applications.
It provides 3-state outputs across its four channels.
No automotive or special standards approvals are applied to this device.
It supports differential inputs for effective communication.
It is suitable for electronic equipment, data communication systems, and industrial control interfaces.
