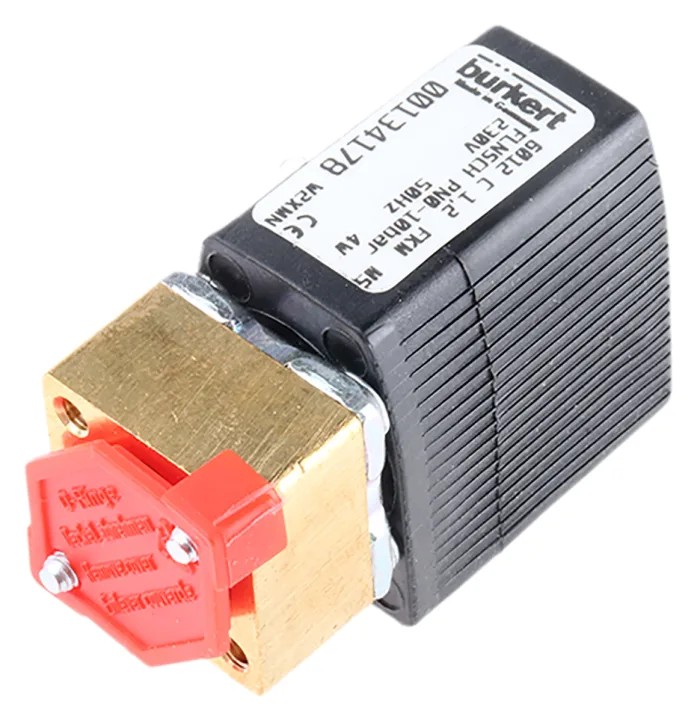

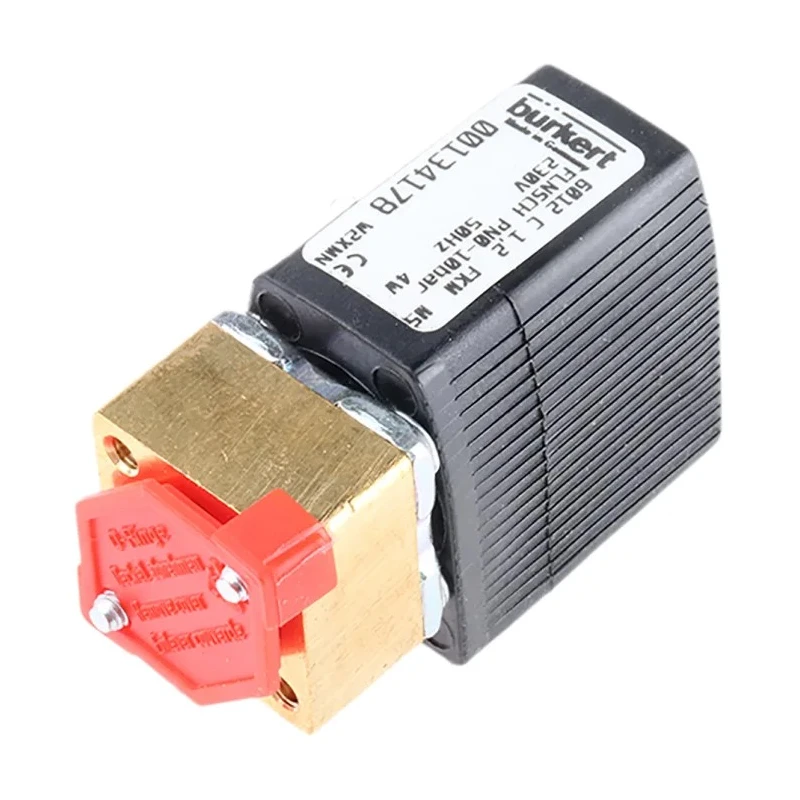

Burkert Brass Bodied 3 Port NC Solenoid Valve 230V AC 1/8 in G Thread 134178
Specifications
| Country of Origin | Germany |
|---|---|
| Power Consumption | 9VA (ac inrush), 6VA/4W (constant) 4W (dc) |
| Brand | Burkert |
| Body Material | Brass |
| Maximum Operating Pressure | 10 bar |
| Model | 134178 |
| Pressure Range | 1 to 10 bar |
| Series | 6012 |
| Number Of Ports | 3 |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -10°C |
| Orifice Diameter | 1.2mm |
| Supply Voltage | 230V ac |
| Maximum Ambient Temperature | +55°C |
| Inlet Port Size | 1/8 in G |
| Default Valve Position | NC |
| Inlet Thread Standard | NPT |
| Maximum Opening Time | 10ms |
| Flow Factor Kv | 0.045m³/h |
| Maximum Closing Time | 12ms |
| Fluid Temperature Range | -10°C to +90°C |
Key Features
- The valve is compatible with gas, liquid, water, air, natural gases, oil, and fats without additives.
- Equipped with Vitron (FPM) seals for enhanced durability and fluid compatibility.
- Operates within a pressure range of 1 to 10 bar with a maximum operating temperature of 55°C.

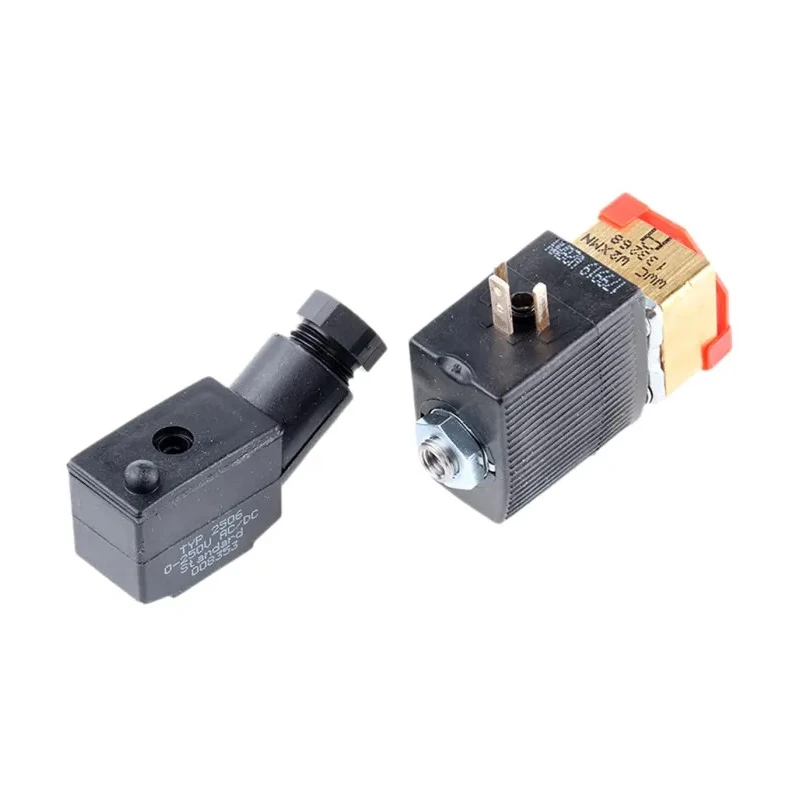

- Features an IP65 rated 3-pin DIN connector that can be positioned through 360 degrees in 90-degree increments.
- Power consumption is 9VA during AC inrush and 6VA/4W constant, with 4W for DC operation.
- Flow factor Kv is 0.045 m³/h corresponding to an orifice diameter of 1.2 mm.
- Supports fluid temperature range from -10°C to +90°C and maximum ambient temperature of +55°C.
- The valve features a fast maximum closing time of 12 ms and opening time of 10 ms with servo assist.
Product Description
Burkert 134178 is a high-quality, brass-bodied, 3-port normally closed (NC) solenoid valve designed for precise fluid control in industrial applications. Operating at 230V AC, it is suitable for handling a wide range of fluids including water, neutral fluids, air, natural gases, oils, and fats, owing to its durable Vitron (FPM) seals.
The valve's pressure range from 1 to 10 bar and a maximum operating temperature of 55°C make it ideal for medium pressure and temperature conditions. With an orifice diameter of 1.2 mm and a flow factor Kv of 0.045m³/h, it ensures accurate flow regulation.
Its epoxy encapsulated coil consumes 9VA during AC inrush and maintains a lower continuous power consumption, contributing to energy efficiency. The valve features an IP65 rated 3-pin DIN connector that can be oriented in 90-degree steps for flexible installation in various configurations. Additionally, the valve supports fast actuation with maximum opening and closing times of 10 ms and 12 ms respectively, assisted by servo technology.
Designed for industrial, laboratory, HVAC, and water treatment applications, this solenoid valve can be mounted in any position, although coil uppermost is recommended for optimum performance. The valve’s durability and precision control make it highly suitable for automated fluid handling systems.
The valve is compatible with a variety of media including gases and liquids without additives. Vitron (FPM) seals provide high chemical resistance. Operates effectively within specified temperature and pressure ranges. IP65-rated connector ensures protection against dust and water ingress.
Flexible mounting options facilitate varied industrial installations. Energy-efficient coil with epoxy encapsulation for durability. Fast cycling frequency up to 1000 cycles per minute supports dynamic operations. Constructed with high-grade brass for robustness and long service life.
Designed and manufactured to German industrial standards.
This Burkert Solenoid Valve 134178 is an excellent choice for precise fluid control in pneumatic, hydraulic, and process engineering applications. For exploring more valves and related industrial equipment, browse the extensive offerings at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this model is 10 bar.
It consumes 9VA during AC inrush and maintains a constant power consumption of 6VA/4W, with 4W for DC operation.
The valve supports a fluid temperature range from -10°C to +90°C.
The orifice diameter of this solenoid valve is 1.2 mm.
The maximum opening time is 10 ms and the maximum closing time is 12 ms.
It is compatible with gas, liquid, water, air, natural gases, oils, and fats without additives.
The body of this solenoid valve is made of brass.
It features an IP65 rated 3-pin DIN connector that can be positioned through 360 degrees in 90-degree increments.
The valve can be mounted in any position, but it is recommended to have the coil uppermost for optimum performance.
The flow factor Kv is 0.045 m³/h.
The maximum ambient temperature for this solenoid valve is +55°C.
This valve is manufactured in Germany.
