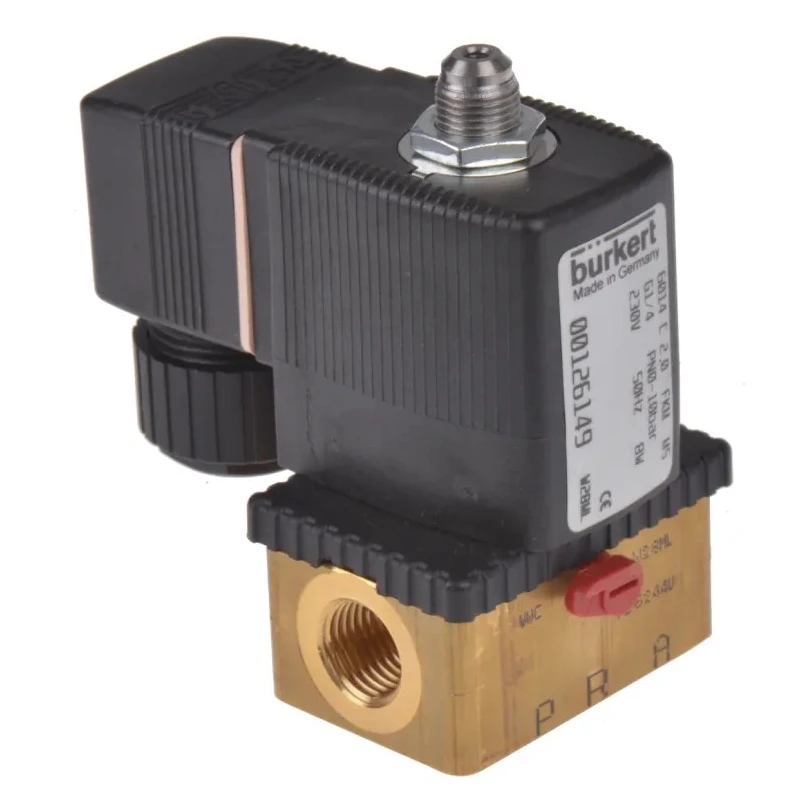

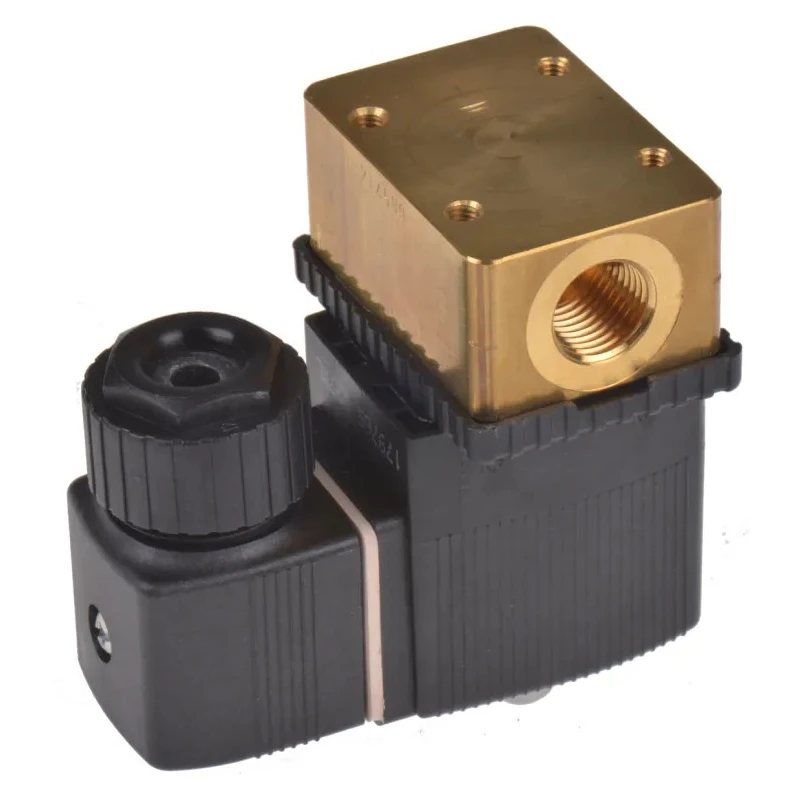

Burkert 3-Port Normally Closed Brass Body Solenoid Valve 230V AC, 2mm Orifice 126149

Burkert 126149 solenoid valve is a high-quality 3-port normally closed valve designed for precision control in industrial fluid and gas handling systems. It operates on 230V AC and features a brass body with chemically resistant FKM seal material for durability and reliability.

The valve has female inlet and outlet ports sized at 6.35 mm, equivalent to 1/4 inch, providing easy integration with standard piping. Its 2 mm orifice diameter delivers a flow factor Kv of 0.11 m³/h, suitable for moderate flow rates. The valve supports a maximum operating pressure of 10 bar and tolerates an operating temperature range from -10°C to 55°C, making it adaptable to a variety of industrial, HVAC, laboratory, and manufacturing applications.

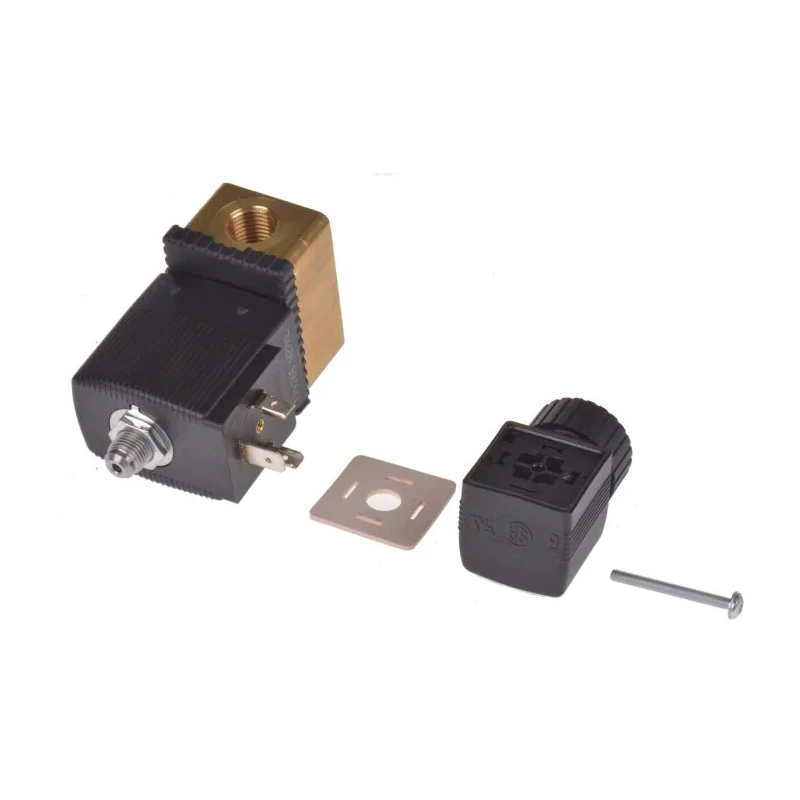

This solenoid valve’s coil is vibration-proof and bolted, allowing for secure mounting and easy coil replacement without dismantling the valve. Actuation times are rapid, with maximum opening and closing times of 15 ms and 20 ms respectively, facilitating responsive flow control.

The valve's all media contact surfaces are limited to resistant internal parts and the brass body, enabling suitability for gases, liquids, water, neutral fluids, natural gases, oils, and fats without additives. Its compact direct-acting design with a DN 2.5 diameter ensures compact installation and reliable operation.

Burkert’s 126149 solenoid valve is manufactured in Germany and is engineered to meet high industrial standards without hazardous area certification or additional certifications but offers IP65-rated protection against dust and water jets.

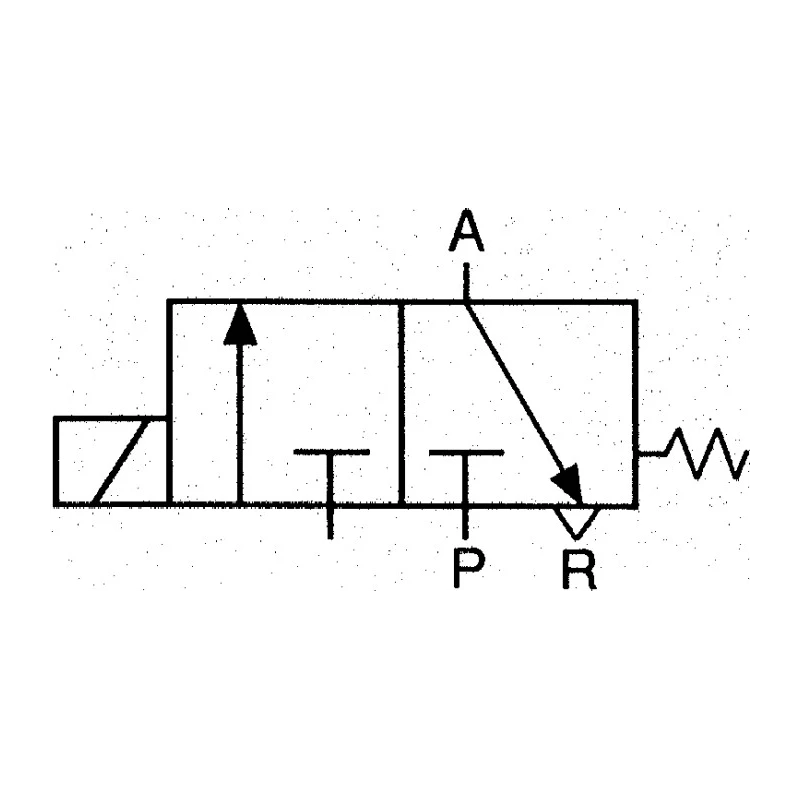

Operates at 230V AC supply voltage for reliable performance. Features three ports with female inlet and outlet connections sized at 6.35 mm (1/4 inch). Normally closed (NC) valve default position for safety in flow control.

Orifice diameter of 2 mm supports flow factor (Kv) of 0.11 m³/h. Maximum operating pressure is 10 bar suitable for industrial gas and liquid media. Body constructed from durable brass material with FKM seal ensuring chemical resistance.

Operating temperature range from -10°C to +55°C for various environments. Maximum opening time of 15 ms and closing time of 20 ms enable quick actuation. Vibration-proof, bolted coil system with easily replaceable coil in place.

Valve suitable for water, neutral fluids, air, natural gases, oils, and fats without additives.

This solenoid valve is ideal for industrial automation, fluid power systems, HVAC controls, water treatment plants, and pneumatic system applications. Environmentally robust and engineered for precise flow regulation, it ensures long service life and minimal maintenance.
