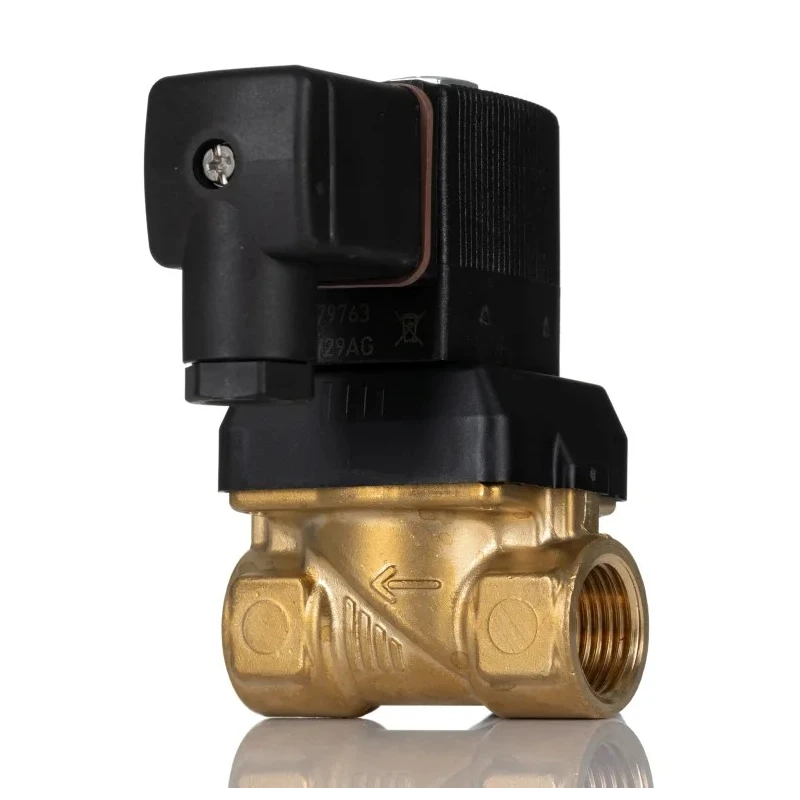

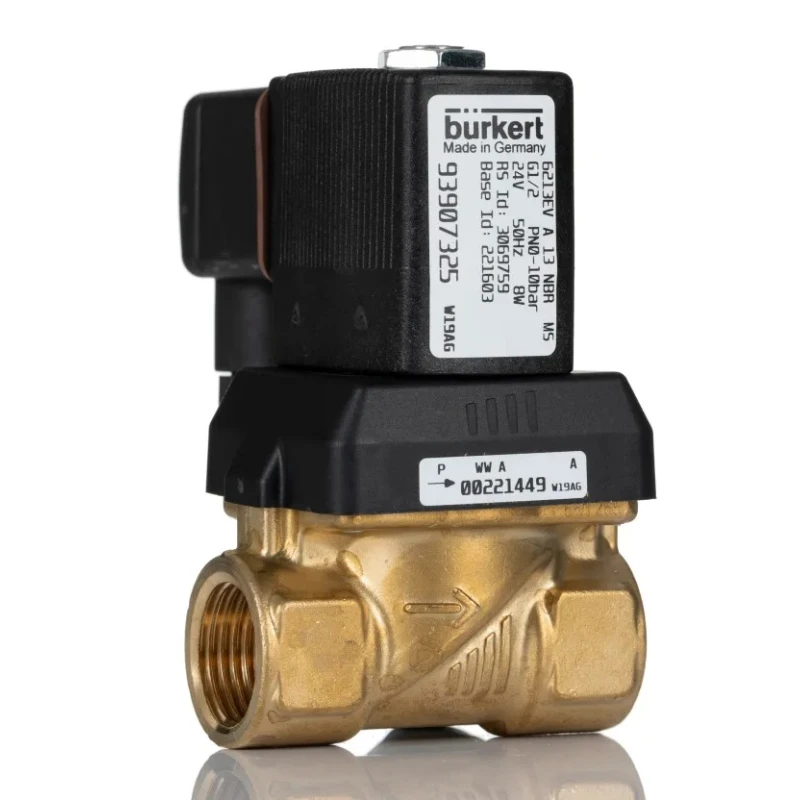

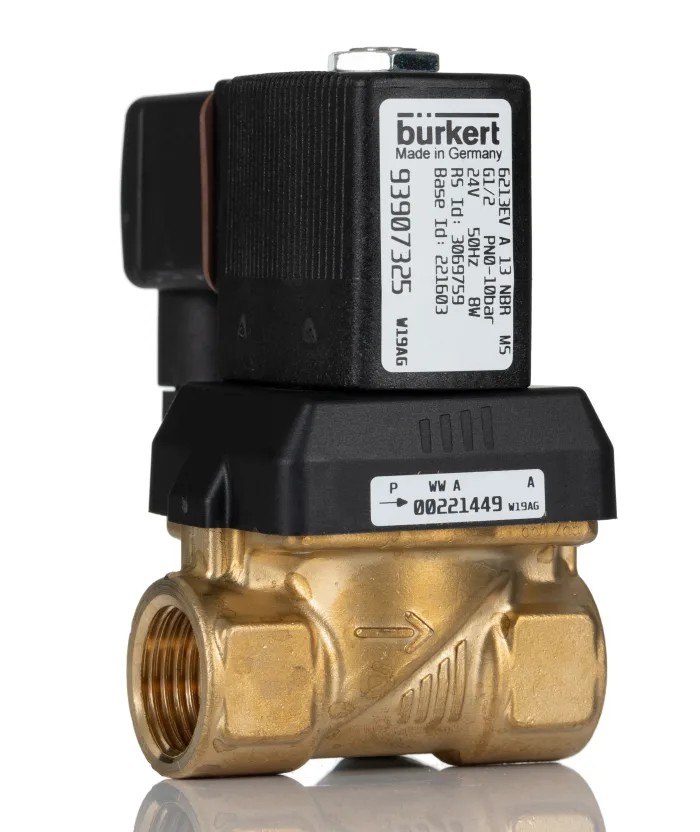

Burkert Brass Body 2 Port NC Solenoid Valve 24V AC 10 bar Maximum Operating Pressure 221603

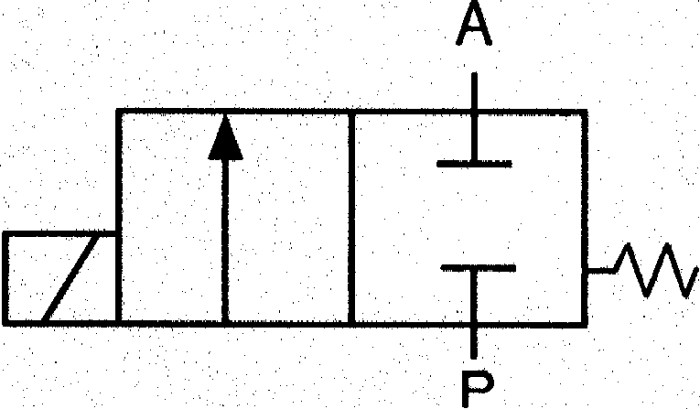

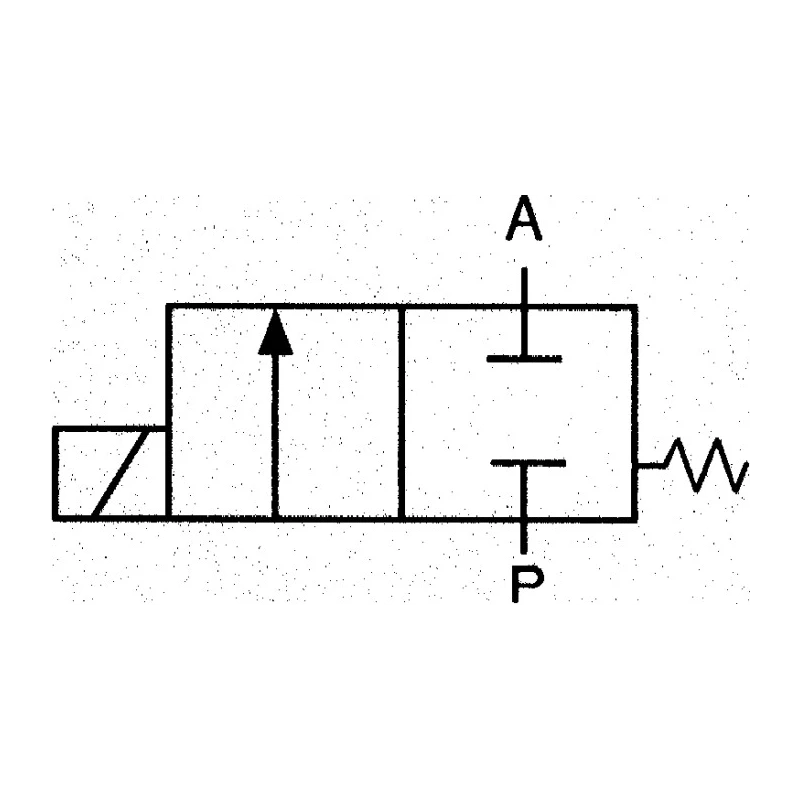

Burkert 221603 is a 2 Port Normally Closed solenoid valve with a brass body, engineered for effective liquid and inert gas flow control in industrial, commercial, HVAC, and water treatment applications. It operates on 24V AC supply voltage and supports a maximum operating pressure of 10 bar. The valve's compact size facilitates easy installation in restricted spaces.

This valve features a 13 mm orifice diameter and a flow factor (Kv) of 3.6 m³/h allowing efficient fluid throughput. It employs a soft mechanical coupling between the main piston and pilot armature which ensures smooth and quiet operation without water hammer effects. The epoxy encapsulated coil and sealed coil design, compliant with IP65 standards, provide high resistance to environmental contaminants.

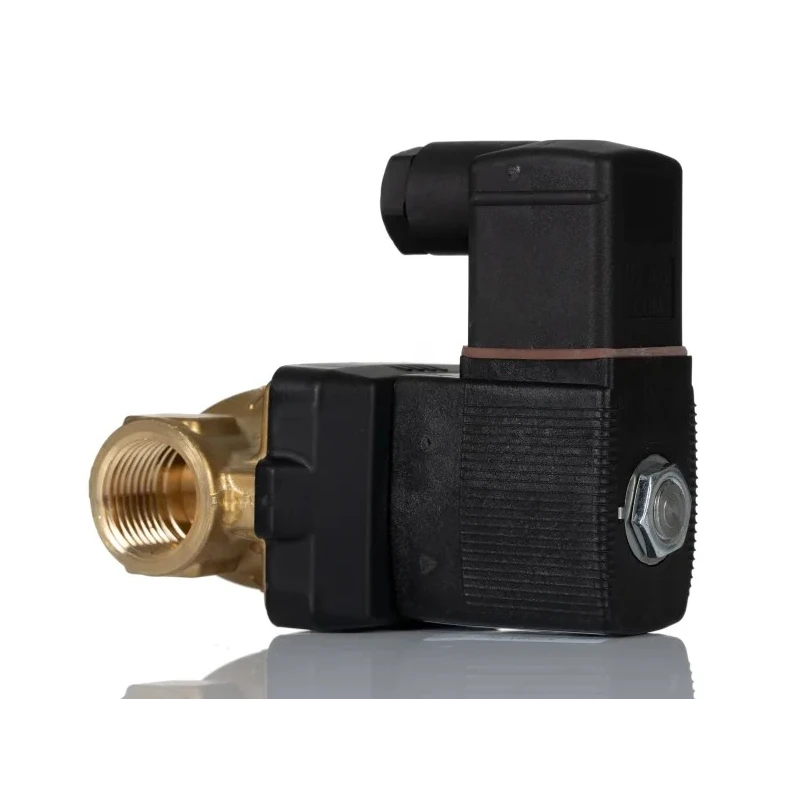

Its operating temperature range from -10°C to 55°C supports various industrial operating environments. The 10W power consumption coupled with a rotatable 3-pin DIN connector (adjustable in 90° increments) enhances installation flexibility and operational reliability. The valve assembly conforms with multiple certifications including Watermark, DIN EN ISO 23553-1, UR(UL), WRAS, NEMA 4X, IECEx, and ATEX, making it suitable for hazardous area installations.

Typical use cases include fluid power systems, plumbing and pipeline solutions, HVAC control systems, water treatment plants, and laboratory and manufacturing process automation requiring precise and reliable valve control with environmental protection.

Brass body ensures robust and corrosion-resistant construction. 2 port Normally Closed configuration for controlled fluid shutoff. Maximum pressure rating of 10 bar suitable for many industrial fluids. Operates within a temperature range of -10°C to 55°C.

Soft mechanical coupling for smooth, quiet flow control. Epoxy encapsulated coil with IP65 rating protects against dust and water ingress. Certified for safety and hazardous areas to international standards. Compact and efficient design ideal for limited space installations.

Flow factor Kv of 3.6 m³/h supports high flow rates. Rotatable 3-pin DIN connector for versatile mounting options.
