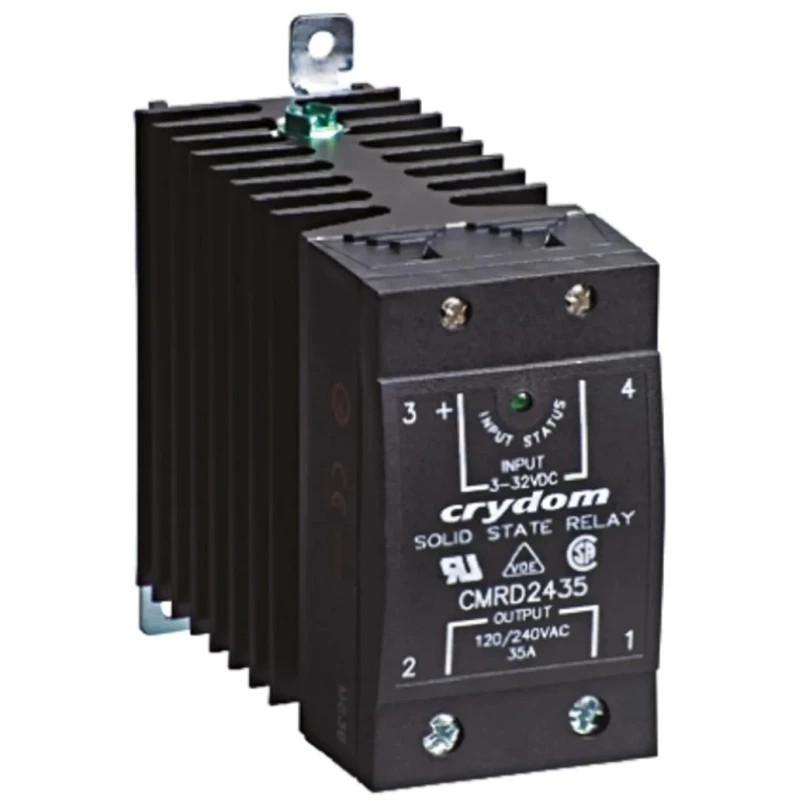

Crydom Solid State Relay CMRD2435, 35A Load, 280V AC Load, 32V DC Control, DIN Rail Mount

The Crydom CMRD2435 solid state relay is a high-performance component designed for industrial and automation applications requiring reliable switching of AC loads. Rated for a maximum load current of 35 amps and a load voltage up to 280 volts AC, this relay features a solid state SCR output type that enables efficient and quiet operation with zero cross switching functionality to minimize electrical noise.

Its compact housing mounts easily on standard DIN rails, equipped with caged screw terminals for robust electrical connections and an integral heatsink that ensures stable thermal performance during continuous use. The device includes a fingerproof safety cover, providing enhanced operator protection in demanding environments.

Operating within a control voltage range of 3 to 32 volts DC, the CMRD2435 supports versatile control setups and offers an LED indicator to provide clear visual feedback on the relay status. The relay is rated to operate reliably between -40°C and 80°C, making it suitable for harsh industrial conditions.

This solid state relay is compliant with RoHS standards, demonstrating adherence to environmental and safety norms. It finds typical use in automation systems, electrical distribution panels, HVAC controls, and other commercial or industrial equipment requiring dependable AC load switching without mechanical wear.

Compact dimensions of 109 mm in length, 44.5 mm in width, and 76.2 mm in height optimize cabinet space and installation flexibility. Off-state leakage current is minimized to 10 mArms to improve overall power efficiency.

Supports a maximum load current of 35 amps for robust switching. Designed for DIN rail mounting to streamline panel installation. Operates with a load voltage ranging from 24V AC to 280V AC. Control voltage range is 3V to 32V DC for flexible input signal compatibility.

Features screw terminal type for secure electrical connections. Includes integral heatsink and fingerproof safety cover for safe operation. Zero cross switching helps reduce electrical noise and prolong relay life. Built-in LED status indicator for straightforward operational status monitoring.

Compact dimensions of 109mm length, 44.5mm width, and 76.2mm height. Suitable for industrial automation, electrical panels, and HVAC control applications.
