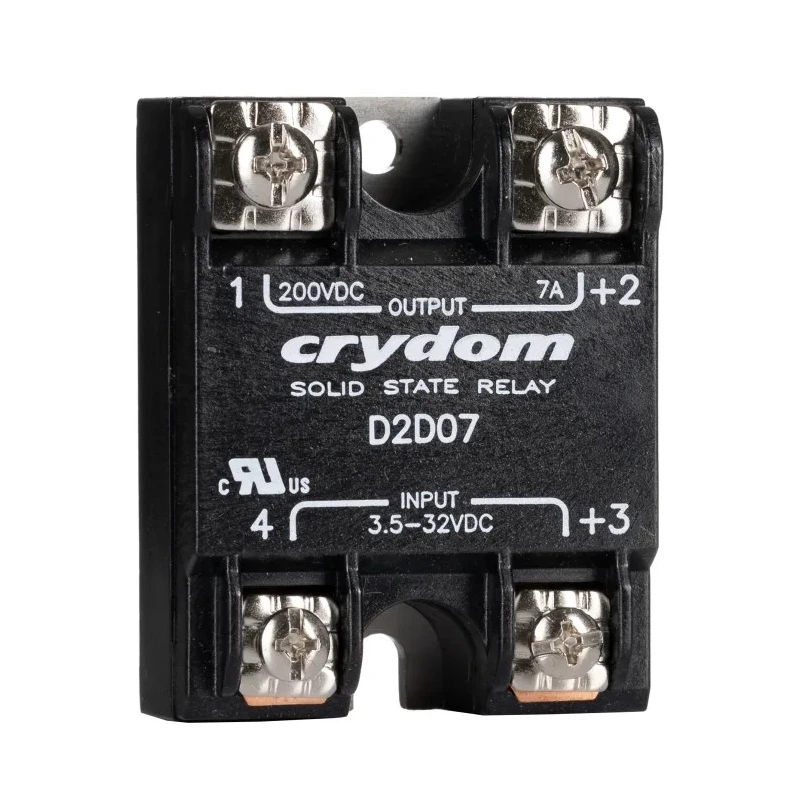

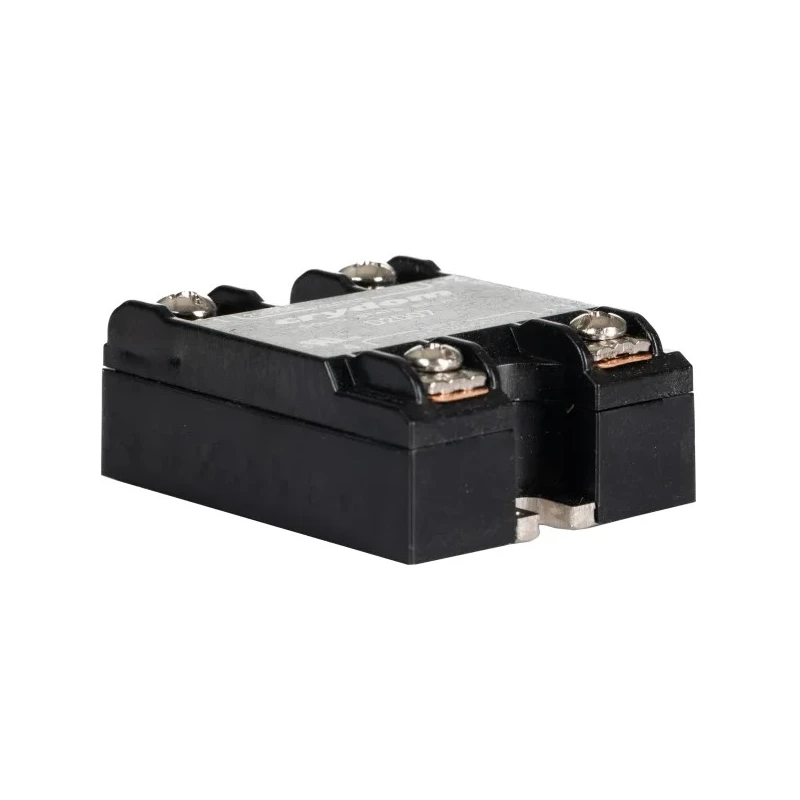

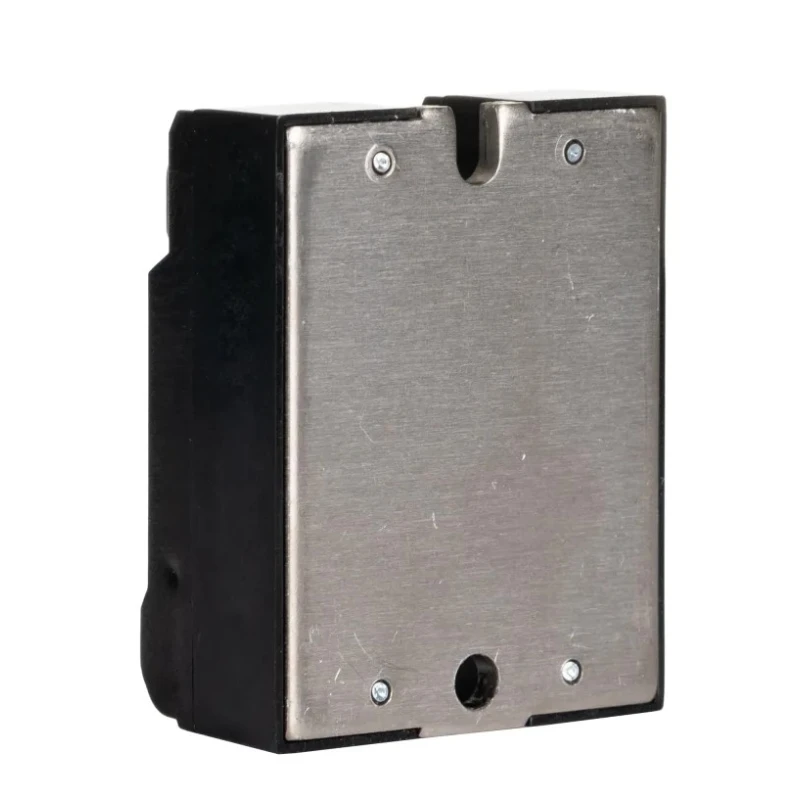

Crydom 1-DC Series Solid State Relay Panel Mount 7 A Load 200 V Load 32V Control D2D07
Specifications
| Country of Origin | Mexico |
|---|---|
| Brand | Crydom |
| Height | 23mm |
| Length | 45.7mm |
| Model | D2D07 |
| IP Rating | IP20 |
| Width | 22.6mm |
| Mount Type | Panel |
| Output type | SCR |
| Series | 1-DC |
| Maximum Operating Temperature | 80°C |
| Capacitance | 8pF |
| Minimum Operating Temperature | -20°C |
| Terminal type | Screw |
| Switching Function | Zero Cross Switching |
| Maximum Load Current | 7A |
| Standards/Approvals | UR, RoHS, CSA |
| Maximum Load Voltage | 200V |
| Minimum Control Voltage | 3.5V |
| Maximum Control Voltage | 32V |
| Off State Leakage Current | 0.1mArms |
Key Features
- Panel mount type solid-state relay suitable for reliable industrial use.
- Handles DC loads up to 7 amperes efficiently without mechanical wear.
- Wide operating voltage range of 1 to 200 V DC for load application.
- Screw terminal connections ensure secure wiring in high-vibration environments.
- Flame-retardant housing enhances safety and fire resistance.
- Zero cross switching provides noise-free operation and reduces electrical stress.
- Operating temperature range from -20°C to 80°C for diverse conditions.
- Low off-state leakage current of 0.1mArms minimizes power loss in off state.
Product Description
Crydom D2D07 1-DC Series Solid State Relay is a robust industrial relay designed to switch DC loads up to 7A with a load voltage capacity of 200V. Ideal for panel mount applications, it offers fast switching with a 100 microsecond turn-on time, ensuring efficient circuit control in automation, industrial machinery, and electronic control systems.
The solid-state design with no moving parts guarantees durability, eliminating mechanical wear and maintenance. The screw terminal type connections provide a reliable electrical connection that withstands vibration and shock in demanding operational environments.
This relay features zero cross switching, allowing for smooth and low-noise switching of DC loads with minimal electrical disturbances. Its flame-retardant housing enhances safety especially in scenarios with fire risks, while meeting relevant UL, CE, ISO certifications.
With an operating temperature range from -20°C to +80°C, it is suited for varied industrial and laboratory environments. It features a low leakage current of 0.1 mArms when off, reducing unnecessary power consumption. The compact footprint with dimensions of 45.7 mm by 22.6 mm by 23 mm helps optimize control panel layouts.
Typical applications include industrial controls, process automation, and IC equipment switching where high reliability and rapid switching are critical. Manufactured in Mexico, this Crydom SSR provides long MTBF of over 21 million hours at 40°C, ensuring extended lifetime performance.
Panel mount Solid State Relay with 7 A max load current. Wide DC load voltage range 1 to 200 V with 32 V control voltage. Screw terminals for secure wiring and vibration resistance. Flame-retardant housing and zero cross switching for safety and noise reduction.
Compact size with 45.7x22.6x23 mm dimensions for panel integration. Complies with UR, RoHS, CSA standards for quality assurance. Operating temperature from -20°C to 80°C suited for industrial use. Low off-state leakage current reduces waste power.
Perfect for industrial automation, control systems, and electronic equipment switching. Explore more industrial and electrical components including relays at EnvMart for reliable automation and control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current for this solid state relay is 7 amperes.
It can handle a load voltage range from 1 to 200 volts DC.
The control voltage range for this relay is between 3.5 and 32 volts.
The operating temperature range is from -20°C to +80°C.
This model uses screw terminal connections for secure wiring.

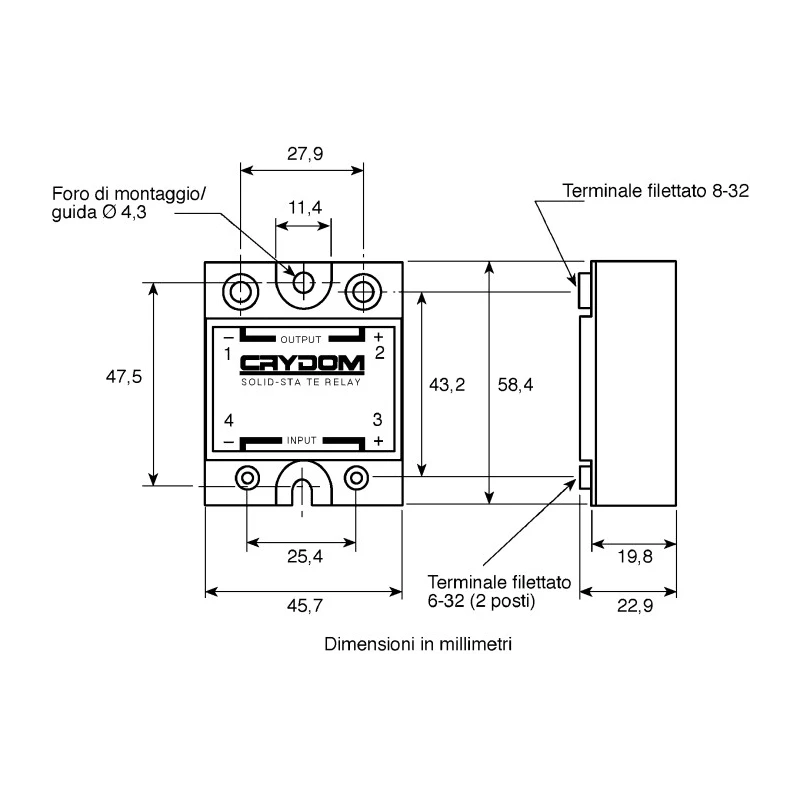

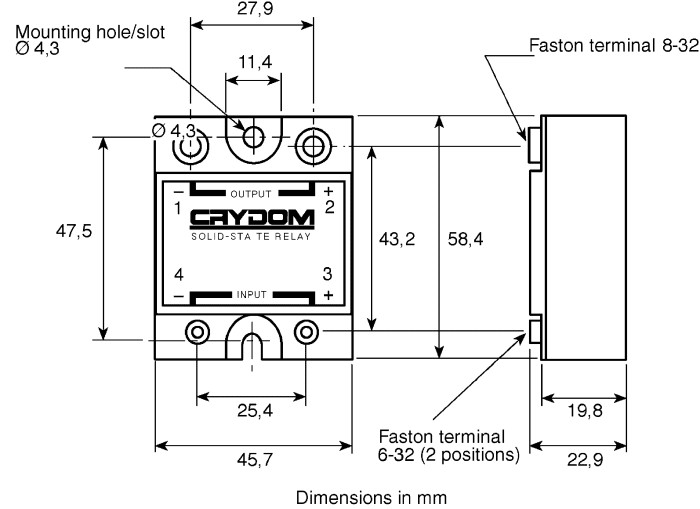

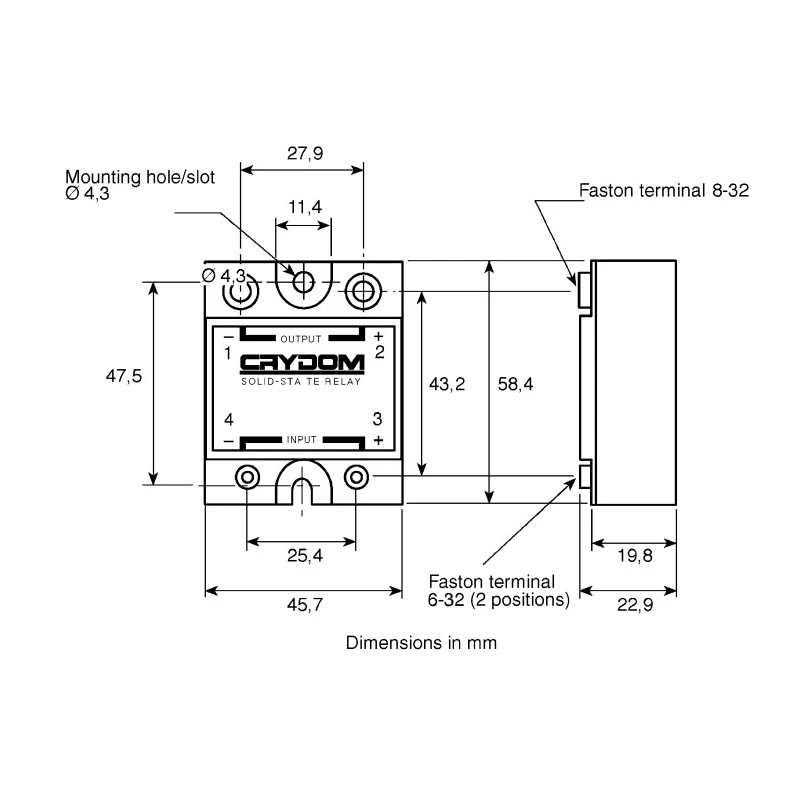

The dimensions of this relay are 45.7 mm in length, 22.6 mm in width, and 23 mm in height.
This relay complies with UR, RoHS, and CSA standards.
It features zero cross switching, which allows for smooth and low-noise operation.
Typical applications include industrial controls, process automation, and electronic equipment switching.
The off-state leakage current is 0.1 mArms, which helps minimize power loss when the relay is off.
This solid state relay is manufactured in Mexico.
It is designed to switch DC loads efficiently without mechanical wear, making it suitable for industrial applications.
