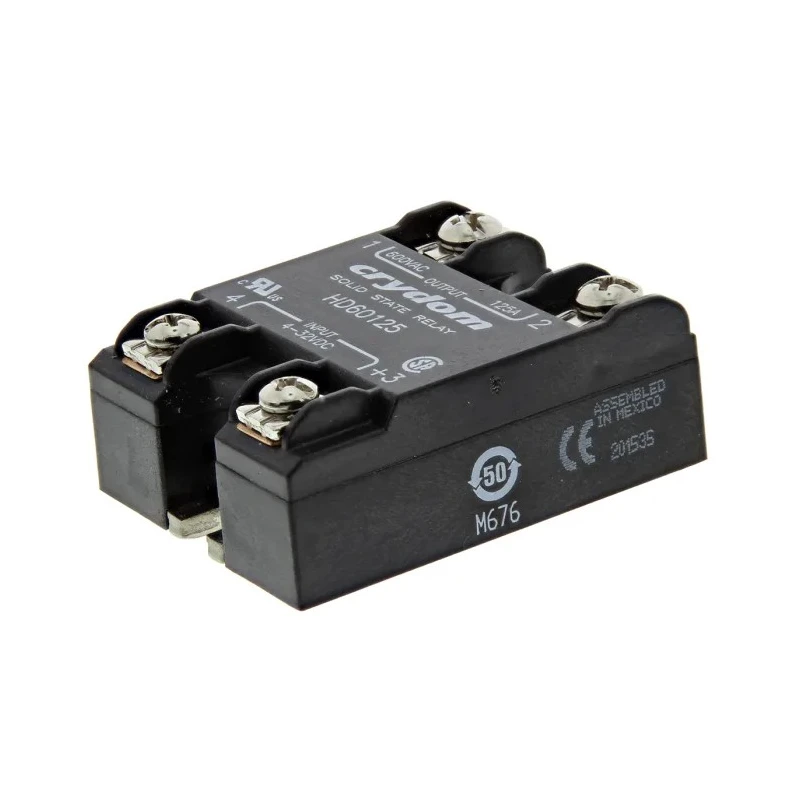

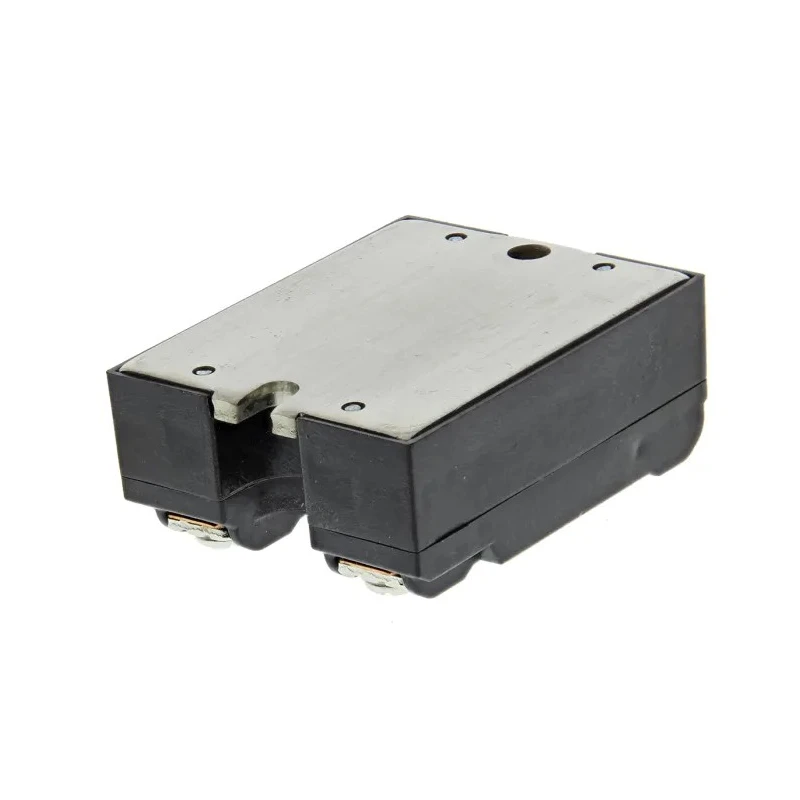

Crydom HA AND HD Series Solid State Relay, Panel Mount, 125A Load Current, 660V AC Load Voltage, 32V Control Voltage HD60125

Crydom HD60125 Solid State Relay is a high-performance industrial component designed for switching heavy electrical loads up to 125 amperes with exceptional reliability. Its panel mount design ensures straightforward installation in electrical cabinets and control panels commonly found in manufacturing, packaging plants, and construction machinery control systems.

The relay supports a wide AC load voltage range up to 660 volts, making it suitable for diverse power systems and industrial environments. It features a wide operating temperature range from -40°C to 80°C, which enables use in harsh conditions without compromising performance.

Equipped with screw terminals, the relay offers secure electrical connections crucial for stable operation under heavy load stress. The flame-retardant housing enhances safety by minimizing fire risks during electrical faults or overheating scenarios.

This model incorporates zero cross switching, which reduces electromagnetic interference by switching power loads precisely at zero voltage crossing, thus protecting sensitive industry electronics and prolonging equipment lifespan.

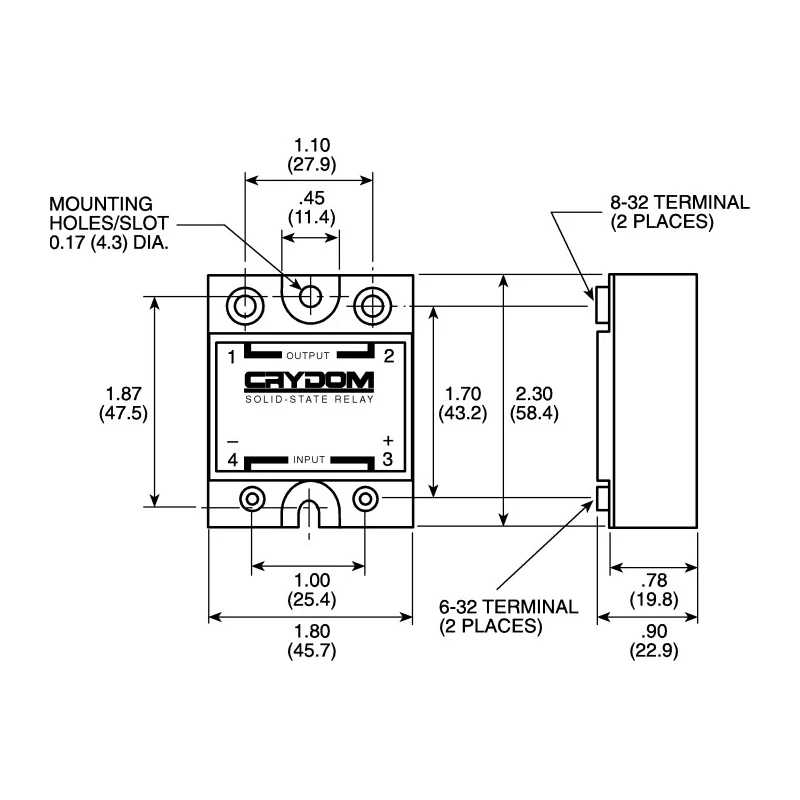

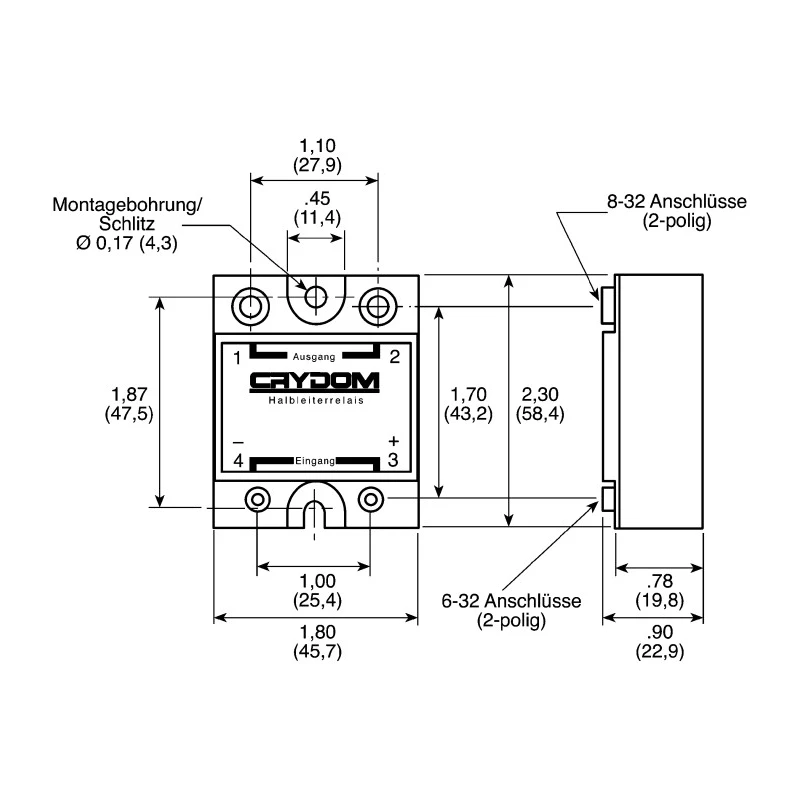

Physical mounting dimensions of 23mm height, 22.6mm width, and 58.4mm length allow integration into compact electrical assemblies. Output is controlled via an SCR semiconductor device, ensuring silent, wear-free operation unlike mechanical relays.

The Crydom HD60125 relay is compliant with industry standards including RoHS, UR, and CSA, reflecting adherence to quality, safety, and environmental regulations. It is manufactured in Mexico, supporting global quality manufacturing practices.

This solid state relay is ideal for industrial control systems, HVAC controls, manufacturing automation, water treatment plants, and other demanding electrical applications requiring high current switching with reliability and minimal maintenance.

Rated for maximum 125A load current which handles large electrical equipment. Wide load voltage range from 48V to 660V AC for flexible deployment. Panel mount screw terminal housing enables easy industrial cabinet setup.

Zero cross switching reduces electrical noise and prolongs connected device life. Flame-retardant construction ensures safety in critical installations. Operating temperature range of -40°C to +80°C for robust industrial usage.

Compact design provides efficient space utilization in control panels. Low off-state leakage current of 1mArms minimizes energy loss and heat. RoHS, UR, CSA certifications demonstrate regulatory compliance and reliability.
