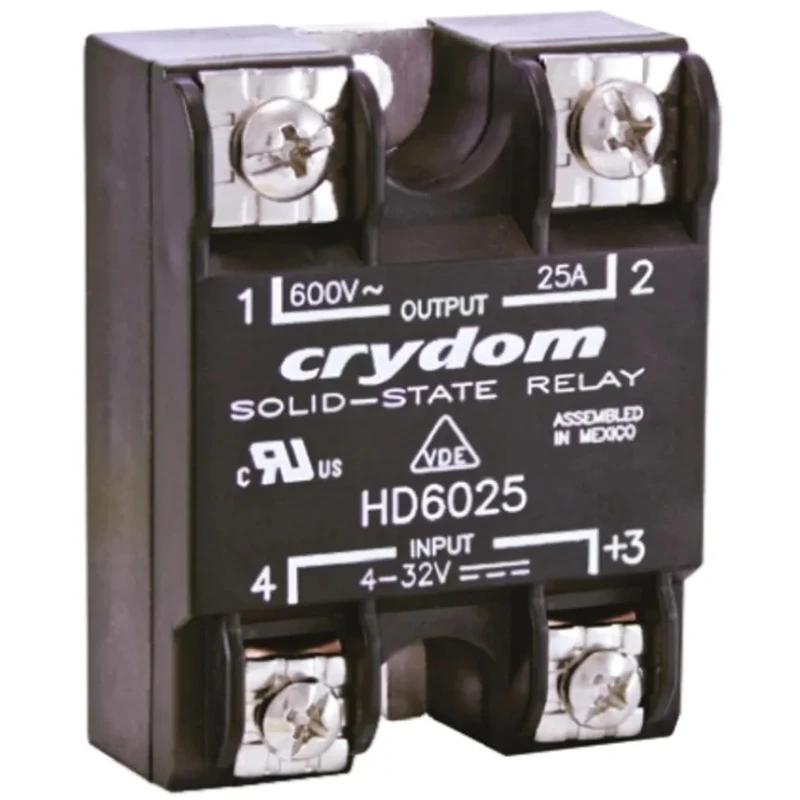

Crydom Solid State Relay Panel Mount 25 A Load Current 660 V AC Load HD6025

Crydom HD6025 Solid State Relay is a panel mount relay designed for heavy industrial loads with a maximum load current of 25 A and a maximum load voltage of 660 V AC. Its robust construction incorporates Direct Bond Copper (DBC) substrate technology to ensure excellent thermal performance and reliable operation under demanding conditions.

The relay utilizes SCR output type and offers zero cross switching function, making it suitable for smooth AC switching and reducing electrical noise. Control voltage ranges from 4 V to 32 V, providing flexibility for various industrial control circuits. Panel mount installation is facilitated by secure screw type terminals and anti-rotation barriers.

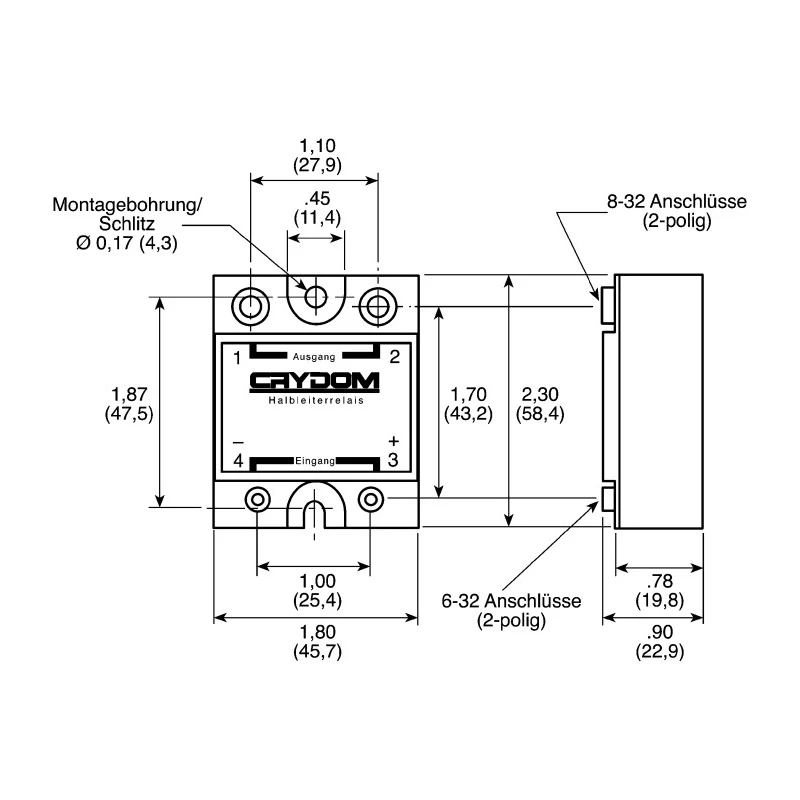

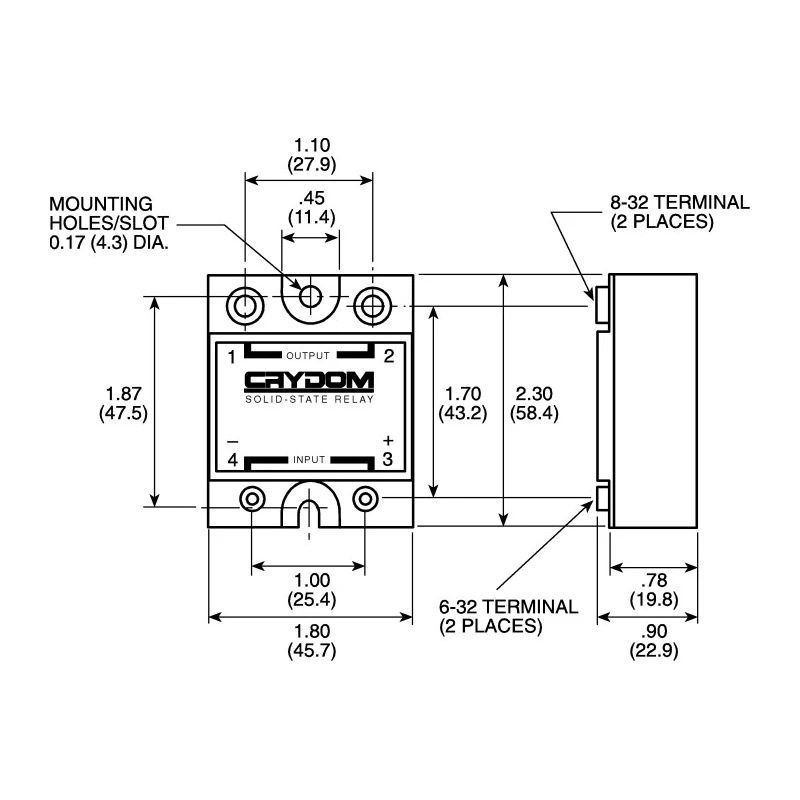

Rated for operation in temperatures from -40°C to 80°C, the Crydom HD series solid state relay complies with international standards including UR, RoHS, and CSA, ensuring high safety and performance benchmarks. Its compact size of 58.4 mm length, 22.6 mm width, and 23 mm height facilitates easy integration into control panels and automation systems.

This relay is commonly used in industrial automation, HVAC control systems, manufacturing equipment, and other applications requiring reliable solid state switching with high load capacity and enhanced durability. The design is epoxy free, EMC compliant to Level 3, and features improved SEMS screws and flexible control voltage options.

Note: Heat sink is not included. Applications include industrial machinery controls, power management systems, and automation panels. Designed for robust and versatile industrial applications. Features SCR output optimized for heavy industrial loads.

Uses Direct Bond Copper (DBC) substrate for superior thermal management. Supports control voltage range from 4 V to 32 V. Panel mount configuration with screw terminals for secure connections. Zero Cross switching function ensures smooth AC switching.

Complies with UR, RoHS, and CSA standards ensuring quality and safety. Operating temperature range from -40°C to 80°C suitable for various environments. Compact dimensions of 58.4 mm length, 22.6 mm width, and 23 mm height.

Designed with anti-rotation barriers to enhance mounting stability. Explore the range of Crydom Solid State Relays on EnvMart for industrial automation and power control applications.
