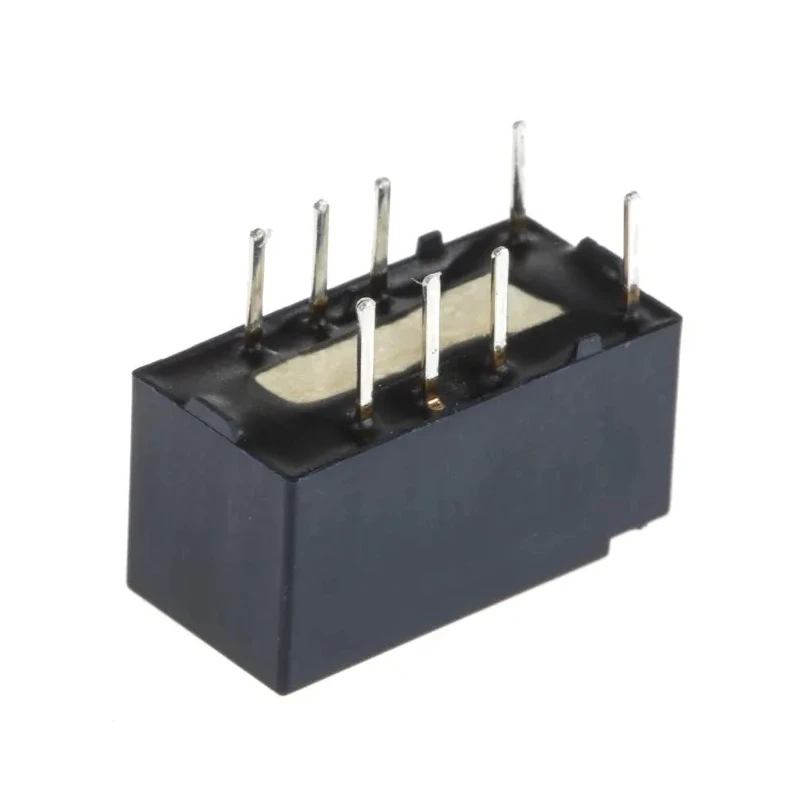

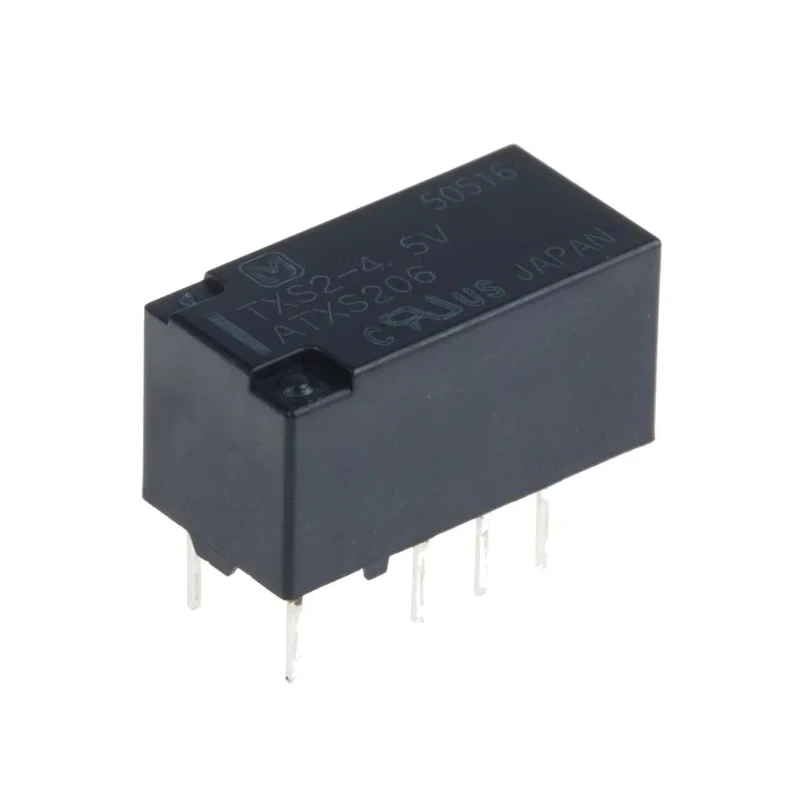

Panasonic Signal Relay PCB Mount, 4.5V DC Coil, 1A Switching Current, DPDT Contact Configuration TXS2-4.5V
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 8.2mm |
| Length | 15mm |
| Model | TXS2-4.5V |
| Width | 7.4mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | G6K |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 1A |
| Terminal type | Through Hole |
| Standards/Approvals | RoHS |
| Coil Resistance | 405Ω |
| Coil Voltage | 4.5V dc |
| Switching DC Voltage | 110V dc |
| Switching AC Voltage | 110V ac |
| Coil Power | 50mW |
Key Features
- Features 4.5V DC coil voltage for low power operation.
- Double-pole double-throw (DPDT) contact configuration enables versatile switching options.
- Supports a switching current of 1 ampere for moderate load handling.
- Designed for PCB mounting with through-hole terminal type for secure installation.
- Compact dimensions of 15mm length, 7.4mm width, and 8.2mm height ensure space-saving design.
- Gold plated contacts enhance conductivity and reduce resistance for reliable signal transmission.
- Wide operating temperature range from -40°C to 85°C supports diverse environmental conditions.
- Low coil power consumption at 50mW enables energy-efficient performance.
Product Description
Panasonic TXS2-4.5V Signal Relay is a high-quality PCB mount relay designed for electronic and electrical applications requiring precise signal switching with low power consumption. It operates with a 4.5V DC coil and supports a switching current of 1 ampere, suitable for low to moderate load switching tasks.
The relay's DPDT contact configuration offers dual-pole, double-throw operation, providing flexibility in circuit design. Its gold plated contacts ensure excellent conductivity and long service life by minimizing contact resistance.
With compact dimensions measuring 15mm in length, 7.4mm in width, and 8.2mm in height, this relay is ideal for space-constrained PCB layouts. The through-hole terminal mounting facilitates secure soldering and mechanical strength on printed circuit boards.
Designed to withstand operating temperatures ranging from -40°C to 85°C, it offers reliability across a variety of industrial, automation, and control system environments. The coil power is only 50 milliwatts, lowering energy consumption while maintaining high performance.
The TXS2-4.5V belongs to the G6K series known for outstanding surge resistance and high contact reliability, making it well-suited for demanding signal conditioning applications in electronics, industrial automation, HVAC control, and laboratory equipment.
Features 4.5V DC coil voltage for low power operation. Double-pole double-throw (DPDT) contact configuration enables versatile switching options. Supports 1 ampere switching current for moderate loads. Gold plated contacts for enhanced conductivity and durability.
Compact size with 15mm length, 7.4mm width, and 8.2mm height dimensions. Through-hole PCB mounting type for secure and durable fixing. Wide operating temperature range from -40°C to 85°C for reliability. Low coil power consumption of 50mW promotes energy efficiency.
RoHS compliant product ensuring environmentally responsible manufacturing.
This Panasonic TXS2-4.5V Signal Relay is an excellent choice for engineers and designers seeking a reliable signal relay for precise switching in electronics, manufacturing automation, and control applications. Explore more Signal Relay options in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates with a coil voltage of 4.5V DC, suitable for low power applications.
It supports a maximum switching current of 1 ampere, making it suitable for moderate load switching tasks.
This model features a double-pole double-throw (DPDT) contact configuration, providing versatile switching options.
The relay has compact dimensions of 15mm in length, 7.4mm in width, and 8.2mm in height.
It can operate in a wide temperature range from -40°C to 85°C, ensuring reliability in various environments.
The coil power consumption is 50 milliwatts, which promotes energy-efficient performance.
This relay is designed for PCB mounting with a through-hole terminal type for secure installation.
The contacts are gold plated, which enhances conductivity and reduces resistance for reliable signal transmission.
This relay belongs to the G6K series, known for outstanding surge resistance and high contact reliability.
It supports a switching DC voltage of 110V and a switching AC voltage of 110V, suitable for various applications.
Yes, this relay is RoHS compliant, ensuring environmentally responsible manufacturing practices.
The relay is manufactured in Japan, ensuring adherence to high manufacturing standards.
