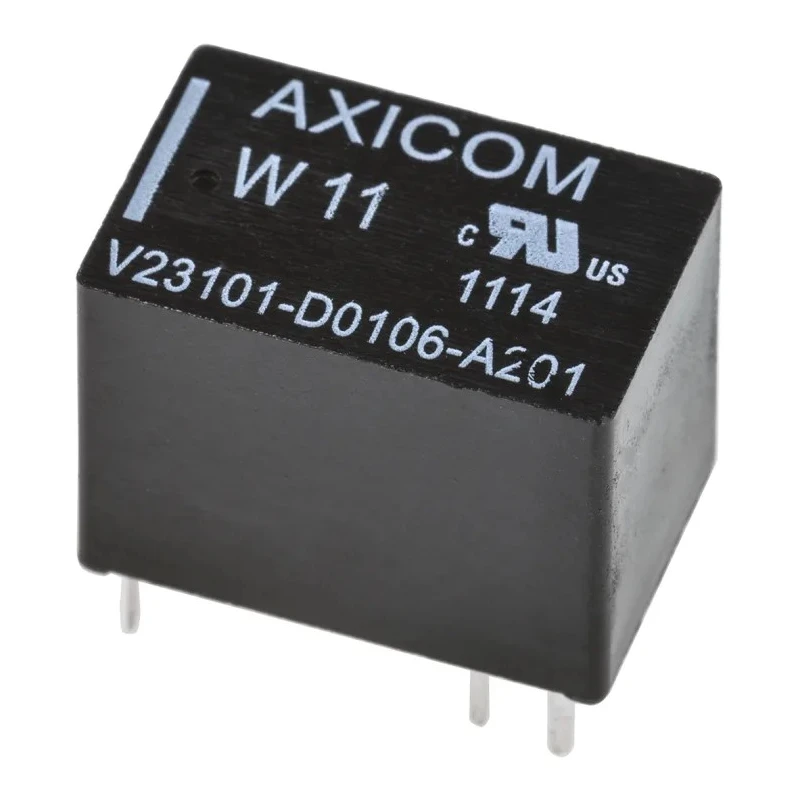

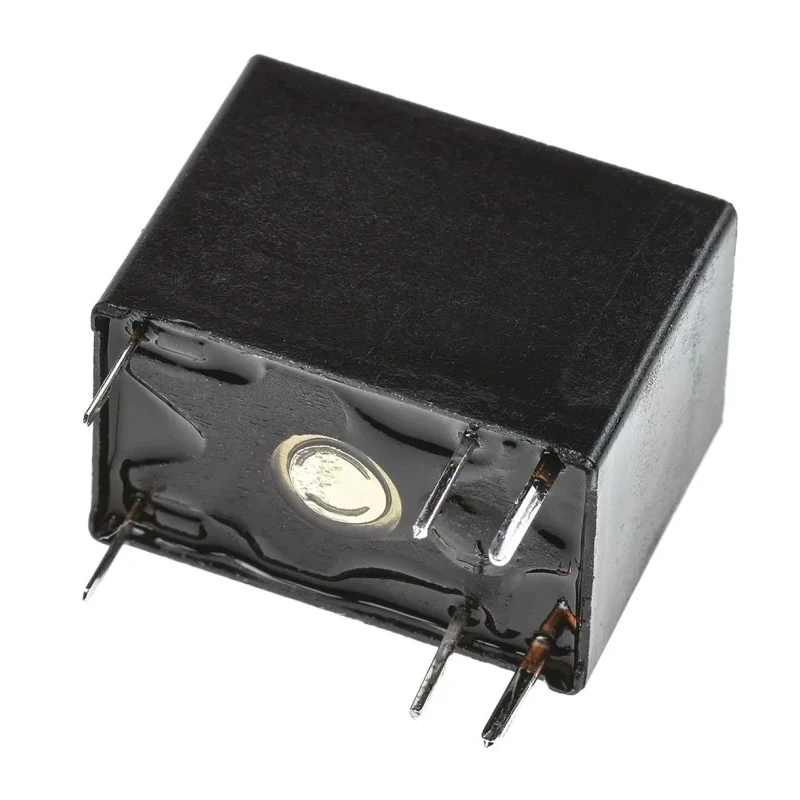

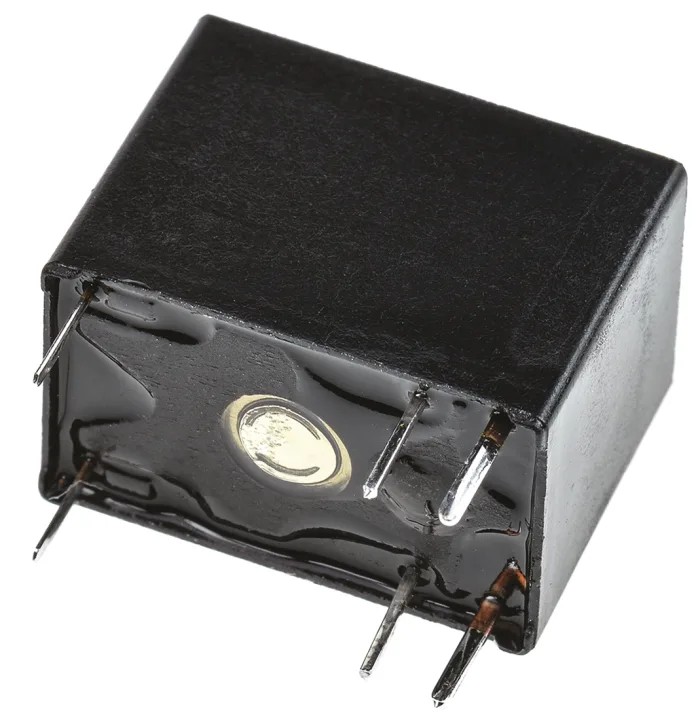

TE Connectivity PCB Signal Relay SPST, 12V DC Coil, 1.25A Switching Current V23101D 106A201
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Dimensions | 11.5mm x 10.5mm x 15.5mm |
| Height | 11.5mm |
| Length | 15.4mm |
| Model | V23101D 106A201 |
| Width | 10mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | IM |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 1.25A |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Coil Resistance | 700Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 120V dc |
| Switching AC Voltage | 125V ac |
| Coil Power | 206mW |
| Pin Length | 3.5mm |
Key Features
- Coil voltage of 12V DC ensuring efficient electromagnetic operation.
- Single Pole Single Throw (SPST) contact configuration for simple switching.
- Supports switching currents up to 1.25A for load control.
- Compact dimensions suitable for space-constrained PCB layouts.
- Gold-plated contacts provide enhanced conductivity and corrosion resistance.
- Operational temperature range from -40°C to +85°C for versatile environmental performance.
- Fully sealed construction offers high resistance to shock and vibration.
- Low coil power consumption at 206mW improves energy efficiency.
Product Description
TE Connectivity V23101D 106A201 PCB Signal Relay is engineered for reliable signal switching applications in industrial and electronic circuits. Featuring a 12V DC coil voltage and SPST contact configuration, this relay is optimized for compact PCB mounting environments.
The relay supports a switching current of 1.25A, capable of handling moderate loads in automation, control systems, and signal conditioning. Its gold-plated contacts ensure excellent conductivity and resistance to corrosion, contributing to long-term operational stability.
Designed for harsh operating conditions, the relay operates efficiently between -40°C and +85°C. The fully sealed design enhances durability against shock and vibration, making it suitable for manufacturing, automotive electronics, and HVAC control systems.
With compact dimensions of approximately 15.4mm length, 11.5mm height, and 10mm width, the relay integrates easily into dense PCB layouts and electronic assemblies. The coil resistance of 700Ω and power consumption of just 206mW provide energy-efficient operation.
This TE Connectivity relay complies with RoHS standards, ensuring environmental safety and industry conformity. It is an ideal component for engineers and technologists seeking dependable signal switching solutions for industrial, laboratory, and commercial applications.
Coil voltage of 12V DC ensuring efficient electromagnetic operation. Single Pole Single Throw (SPST) contact configuration for simple switching. Supports switching currents up to 1.25A for load control. Compact dimensions suitable for space-constrained PCB layouts.
Gold-plated contacts provide enhanced conductivity and corrosion resistance. Operational temperature range from -40°C to +85°C for versatile environmental performance. Fully sealed construction offers high resistance to shock and vibration.
Low coil power consumption at 206mW improves energy efficiency.
Explore more TE Connectivity components and electronic relays in the EnvMart catalog for professional use in electronics manufacturing, automation, and signal control applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates with a coil voltage of 12V DC, ensuring efficient electromagnetic operation.
It supports a maximum switching current of 1.25A, suitable for load control in various applications.
The dimensions of this relay are approximately 15.4mm in length, 11.5mm in height, and 10mm in width, making it compact for PCB layouts.
This model features a Single Pole Single Throw (SPST) contact configuration, which is ideal for simple switching applications.
The relay operates efficiently within a temperature range of -40°C to +85°C, allowing it to function in various environmental conditions.
The contacts are made of gold-plated material, which enhances conductivity and provides corrosion resistance.
The coil resistance is 700Ω, which contributes to its low power consumption.
The coil power consumption is 206mW, which improves energy efficiency during operation.
Yes, this relay complies with RoHS standards, ensuring environmental safety and industry conformity.
This relay is designed for PCB mounting, which is suitable for compact electronic assemblies.
The maximum switching voltage is 120V DC and 125V AC, making it versatile for different applications.
The relay features solder terminals, which are standard for PCB connections.
