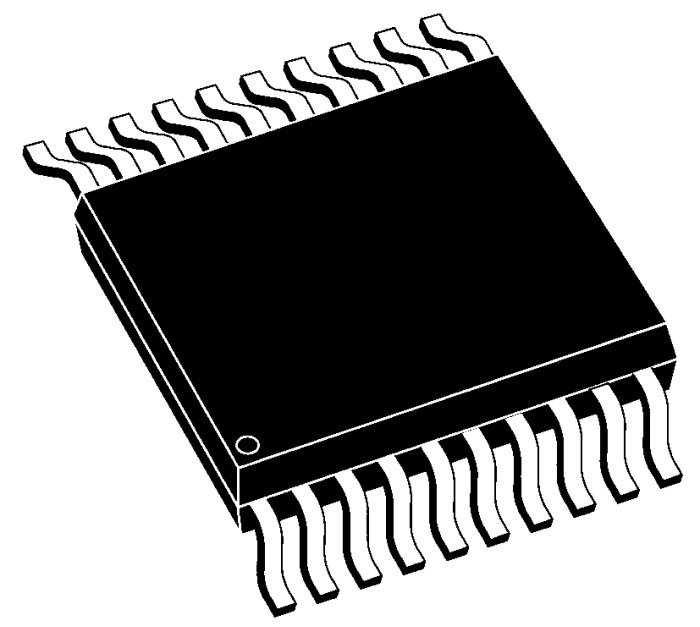

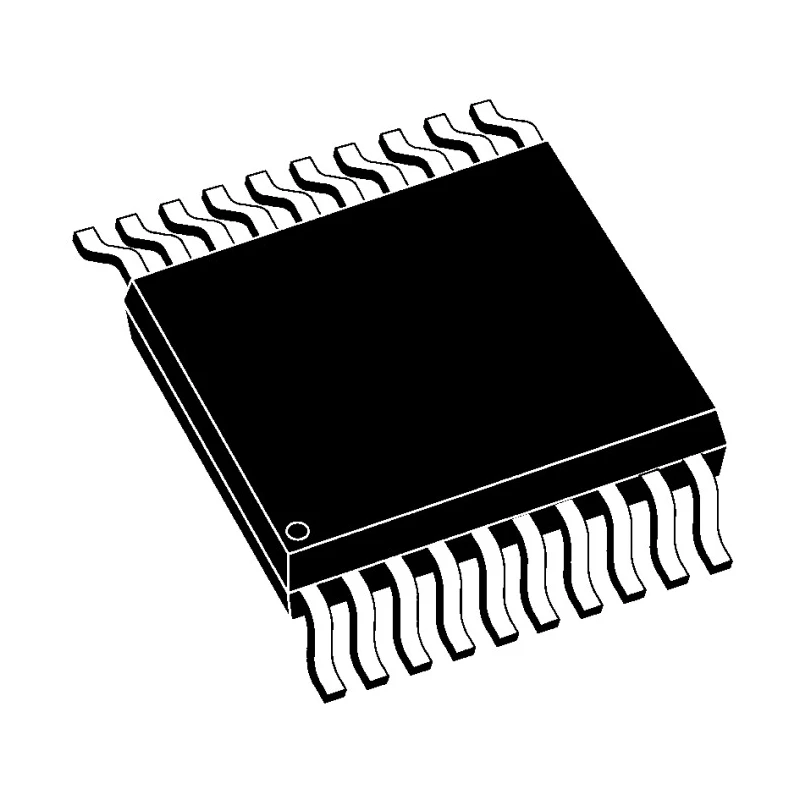

Microchip PIC18LF13K22-I/SS 8-Bit PIC18F Microcontroller 64 MHz 8 kB Flash 256 B RAM 20-Pin SSOP

Microchip PIC18LF13K22-I/SS is a high-performance 8-bit PIC18F microcontroller designed for embedded system applications demanding low power and efficient processing. Operating at a maximum clock frequency of 64 MHz, it integrates 8 kB of FLASH program memory and 256 bits of RAM, housed within a compact 20-pin SSOP surface mount package.

This microcontroller utilizes the PIC18 architecture featuring a 31-level hardware stack and supports an extended instruction set of 83 instructions for advanced processing capabilities. The device is equipped with 18 programmable input/output pins and four timers, including enhanced modules for capture, compare, and pulse-width modulation functions.

Energy-efficient eXtreme Low Power (XLP) technology enables ultra-low power modes like Sleep Mode at 34 nA and a Watchdog Timer consuming only 460 nA, ideal for battery-powered and portable devices. Peripheral modules include a 12-channel 10-bit Analog-to-Digital Converter (ADC), two analogue comparators, a 5-bit DAC, and communication interfaces such as MSSP with SPI and I2C, and enhanced EUSART.

Robust power management includes Power-On Reset, Power-Up Timer, Brown-Out Reset, and Extended Watchdog Timer to ensure system reliability. It operates within a voltage range of 1.8 V to 3.6 V and a temperature range from -40°C to 85°C, making it suitable for industrial, automotive, and commercial applications requiring dependable performance in harsh environments.

Compliant with RoHS directives, the device supports surface mount technology enabling high-density PCB design. Its compact dimensions (7.5 mm length, 5.6 mm width, and 1.85 mm height) facilitate integration into space-constrained designs.

Based on PIC18 architecture featuring 31-level hardware stack and extended 75 instruction set. Offers eXtreme Low Power technology ideal for energy-efficient applications. Includes 18 programmable input/output pins and multiple timers for versatile control.

Supports 12-channel 10-bit ADC, dual analogue comparators, and DAC module. Houses a 16 MIPS max CPU speed suitable for embedded applications. Equipped with various power and reset management features including Power-On Reset and Brown-Out Reset.

Operates over temperature range of -40°C to 85°C and supply voltage range from 1.8 V to 3.6 V. Compliant with RoHS standards, surface mount package ensures compact footprint.

This microcontroller is suited for electronics, industrial automation, automotive control systems, and other embedded design projects requiring compact size, enhanced processing speed, and low power consumption. Explore a wide range of Microchip Microcontrollers in the Electronics & Electricals category at EnvMart.
