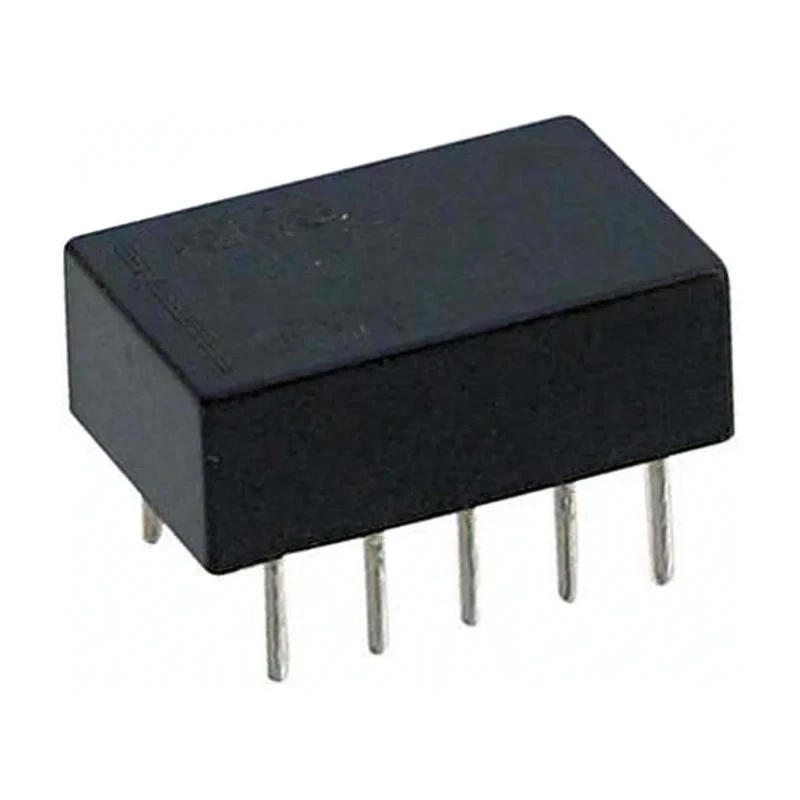

Panasonic PCB Signal Relay 24V DC Coil DPDT Contact Configuration TQ2-L2-24V
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 5mm |
| Length | 14mm |
| Model | TQ2-L2-24V |
| Width | 9mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | TQ2 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Terminal type | Solder |
| Contact Resistance | 50mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 1920Ω |
| Coil Voltage | 24V dc |
| Coil Power | 300mW |
| STMicroelectronics BU931P 1 Darlington Transistor NPN, 15 A 400 V HFE | 300, 3-Pin TO-247Brand: STMicroelectronics |
| Panasonic PCB Signal Relay, 24V dc Coil, DPDTBrand | Panasonic |
Key Features
- Operates with a nominal coil voltage of 24V DC for reliable switching.
- Double Pole Double Throw (DPDT) contact configuration enhances circuit versatility.
- Compact dimensions of 14mm length, 9mm width, and 5mm height for space-saving PCB designs.
- Gold plated contacts ensure low contact resistance and high conductivity.
- Low coil power consumption of 300mW reduces energy usage and heat generation.
- Operates effectively within a temperature range from -40°C to 70°C.
- Designed for PCB solder mounting with high-frequency characteristics suitable for automated insertion.
- Complies with RoHS standards for environmental and safety compliance.
Product Description
Panasonic TQ2-L2-24V PCB Signal Relay combines high performance with a compact, low-profile design. Featuring a 24V DC coil and DPDT contact configuration, this relay is ideal for applications requiring reliable signal switching on printed circuit boards.
The relay measures 14mm in length, 9mm in width, and 5mm in height, enabling efficient use of PCB space. It is designed with gold-plated contacts that provide low contact resistance of 50mΩ, ensuring excellent electrical conductivity and durability.
With a coil resistance of 1920Ω and low coil power consumption of approximately 300mW, the relay operates efficiently with minimal power loss. Its operating temperature range from -40°C to 70°C ensures stable performance in varied industrial environments.
The Panasonic TQ2 series latching relay is suitable for high-frequency applications and supports solder mounting on PCBs, facilitating seamless integration into automated manufacturing processes. Its RoHS compliance guarantees adherence to environmental and safety standards.
Operates on nominal 24V DC coil voltage with DPDT contact configuration. Compact size ideal for space-constrained PCB designs. Gold plated contacts for superior reliability and low resistance. Low power consumption with coil power of 300mW.
Wide operating temperature range of -40°C to 70°C. Suitable for automated solder mounting with high-frequency characteristics. RoHS compliant and UL recognized with CSA approval. This relay is widely used in industrial automation, measurement equipment, communication devices, and quality assurance systems where reliable signal switching is critical.
Choose Panasonic TQ2-L2-24V PCB Signal Relay for dependable PCB relay solutions. Explore EnvMart for a comprehensive range of electronics and electrical components for industrial and commercial applications.
